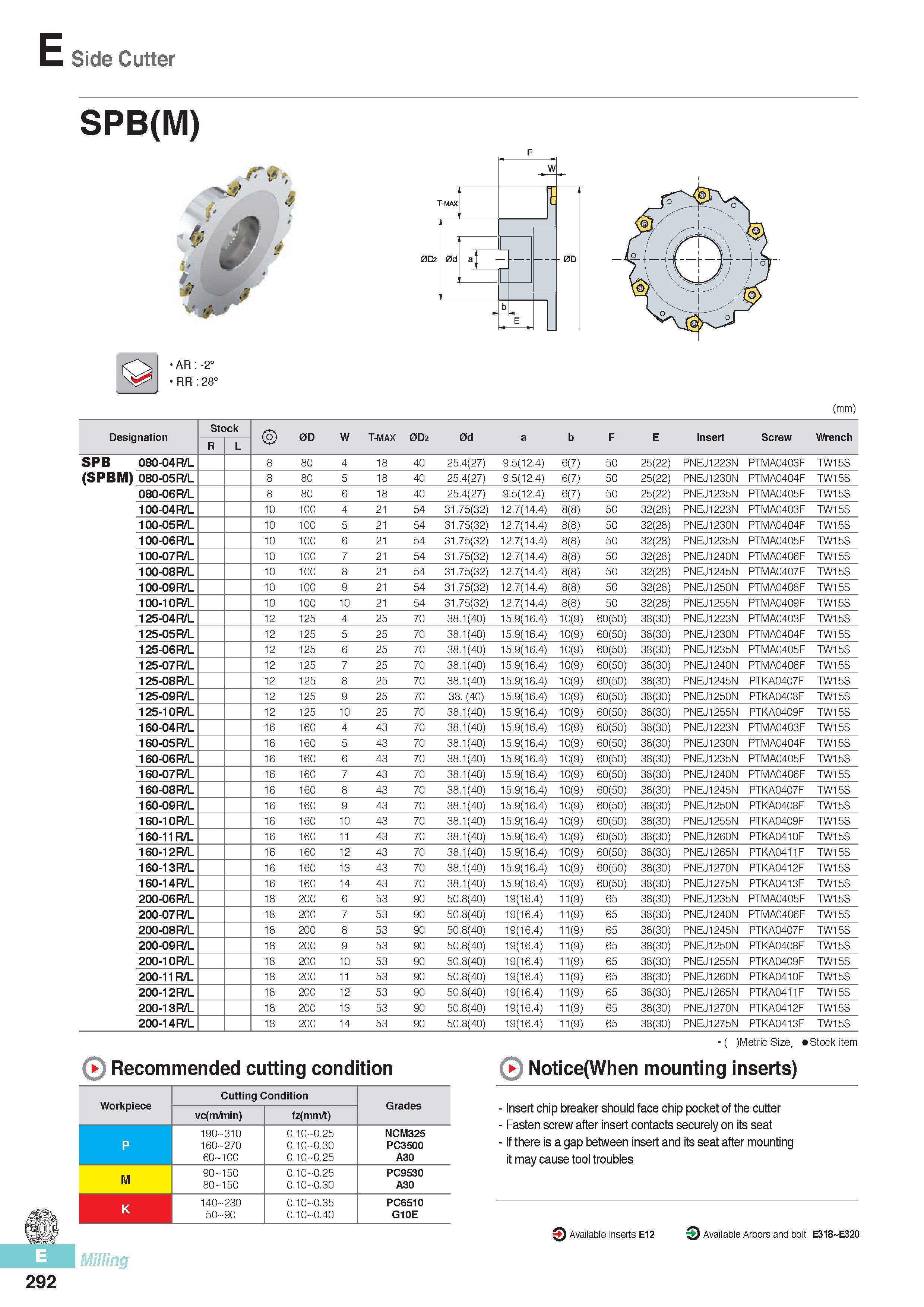

Side Cutter SPB(M) n AR -2° RR 28° (mm) Designation Stock 0D W T-MAX 0D2 0d a b F E Insert Screw Wrench R L SPB 080-04R/L 8 80 4 18 40 25.4(27) 9.5(12.4) 6(7) 50 25(22) PNEJ1223N PTMA0403F TW15S (SPBM) 080-05R/L 8 80 5 18 40 25.4(27) 9.5(12.4) 6(7) 50 25(22) PNEJ1230N PTMA0404F TW15S 080-06R/L 8 80 6 18 40 25.4(27) 9.5(12.4) 6(7) 50 25(22) PNEJ1235N PTMA0405F TW15S 100-04R/L 10 100 4 21 54 31.75(32) 12.7(14.4) 8(8) 50 32(28) PNEJ1223N PTMA0403F TW15S 100-05R/L 10 100 5 21 54 31.75(32) 12.7(14.4) 8(8) 50 32(28) PNEJ1230N PTMA0404F TW15S 100-06R/L 10 100 6 21 54 31.75(32) 12.7(14.4) 8(8) 50 32(28) PNEJ1235N PTMA0405F TW15S 100-07R/L 10 100 7 21 54 31.75(32) 12.7(14.4) 8(8) 50 32(28) PNEJ1240N PTMA0406F TW15S 100-08R/L 10 100 8 21 54 31.75(32) 12.7(14.4) 8(8) 50 32(28) PNEJ1245N PTMA0407F TW15S 100-09R/L 10 100 9 21 54 31.75(32) 12.7(14.4) 8(8) 50 32(28) PNEJ1250N PTMA0408F TW15S 100-10R/L 10 100 10 21 54 31.75(32) 12.7(14.4) 8(8) 50 32(28) PNEJ1255N PTMA0409F TW15S 125-04R/L 12 125 4 25 70 38.1(40) 15.9(16.4) 10(9) 60(50) 38(30) PNEJ1223N PTMA0403F TW15S 125-05R/L 12 125 5 25 70 38.1(40) 15.9(16.4) 10(9) 60(50) 38(30) PNEJ1230N PTMA0404F TW15S 125-06R/L 12 125 6 25 70 38.1(40) 15.9(16.4) 10(9) 60(50) 38(30) PNEJ1235N PTMA0405F TW15S 125-07R/L 12 125 7 25 70 38.1(40) 15.9(16.4) 10(9) 60(50) 38(30) PNEJ1240N PTMA0406F TW15S 125-08R/L 12 125 8 25 70 38.1(40) 15.9(16.4) 10(9) 60(50) 38(30) PNEJ1245N PTKA0407F TW15S 125-09R/L 12 125 9 25 70 38. (40) 15.9(16.4) 10(9) 60(50) 38(30) PNEJ1250N PTKA0408F TW15S 125-10R/L 12 125 10 25 70 38.1(40) 15.9(16.4) 10(9) 60(50) 38(30) PNEJ1255N PTKA0409F TW15S 160-04R/L 16 160 4 43 70 38.1(40) 15.9(16.4) 10(9) 60(50) 38(30) PNEJ1223N PTMA0403F TW15S 160-05R/L 16 160 5 43 70 38.1(40) 15.9(16.4) 10(9) 60(50) 38(30) PNEJ1230N PTMA0404F TW15S 160-06R/L 16 160 6 43 70 38.1(40) 15.9(16.4) 10(9) 60(50) 38(30) PNEJ1235N PTMA0405F TW15S 160-07R/L 16 160 7 43 70 38.1(40) 15.9(16.4) 10(9) 60(50) 38(30) PNEJ1240N PTMA0406F TW15S 160-08R/L 16 160 8 43 70 38.1(40) 15.9(16.4) 10(9) 60(50) 38(30) PNEJ1245N PTKA0407F TW15S 160-09R/L 16 160 9 43 70 38.1(40) 15.9(16.4) 10(9) 60(50) 38(30) PNEJ1250N PTKA0408F TW15S 160-10R/L 16 160 10 43 70 38.1(40) 15.9(16.4) 10(9) 60(50) 38(30) PNEJ1255N PTKA0409F TW15S 160-11R/L 16 160 11 43 70 38.1(40) 15.9(16.4) 10(9) 60(50) 38(30) PNEJ1260N PTKA0410F TW15S 160-12R/L 16 160 12 43 70 38.1(40) 15.9(16.4) 10(9) 60(50) 38(30) PNEJ1265N PTKA0411F TW15S 160-13R/L 16 160 13 43 70 38.1(40) 15.9(16.4) 10(9) 60(50) 38(30) PNEJ1270N PTKA0412F TW15S 160-14R/L 16 160 14 43 70 38.1(40) 15.9(16.4) 10(9) 60(50) 38(30) PNEJ1275N PTKA0413F TW15S 200-06R/L 18 200 6 53 90 50.8(40) 19(16.4) 11(9) 65 38(30) PNEJ1235N PTMA0405F TW15S 200-07R/L 18 200 7 53 90 50.8(40) 19(16.4) 11(9) 65 38(30) PNEJ1240N PTMA0406F TW15S 200-08R/L 18 200 8 53 90 50.8(40) 19(16.4) 11(9) 65 38(30) PNEJ1245N PTKA0407F TW15S 200-09R/L 18 200 9 53 90 50.8(40) 19(16.4) 11(9) 65 38(30) PNEJ1250N PTKA0408F TW15S 200-10R/L 18 200 10 53 90 50.8(40) 19(16.4) 11(9) 65 38(30) PNEJ1255N PTKA0409F TW15S 200-11R/L 18 200 11 53 90 50.8(40) 19(16.4) 11(9) 65 38(30) PNEJ1260N PTKA0410F TW15S 200-12R/L 18 200 12 53 90 50.8(40) 19(16.4) 11(9) 65 38(30) PNEJ1265N PTKA0411F TW15S 200-13R/L 18 200 13 53 90 50.8(40) 19(16.4) 11(9) 65 38(30) PNEJ1270N PTKA0412F TW15S 200-14R/L 18 200 14 53 90 50.8(40) 19(16.4) 11(9) 65 38(30) PNEJ1275N PTKA0413F TW15S Recommended cutting condition Workpiece Cutting Condition Grades vc(m/min) fz(mm/t) P 190 310 160 270 60 100 5 0 5 .2 .3 .2 0. 0. 0. 0. 0. 0. NCM325 PC3500 A30 M 90 150 80 150 5 0 .2 .3 0. 0. 0. 0. PC9530 A30 K 140 230 50 90 0. 0. i 43 o cn PC6510 G10E ( )MetricSize, Stock item 0 Notice(When mounting inserts) Insert chip breaker should face chip pocket of the cutter Fasten screw after insert contacts securely on its seat If there is a gap between insert and its seat after mounting it may cause tool troubles Available Inserts E12 Available Arborsandbolt E318 E320 Milling 292
