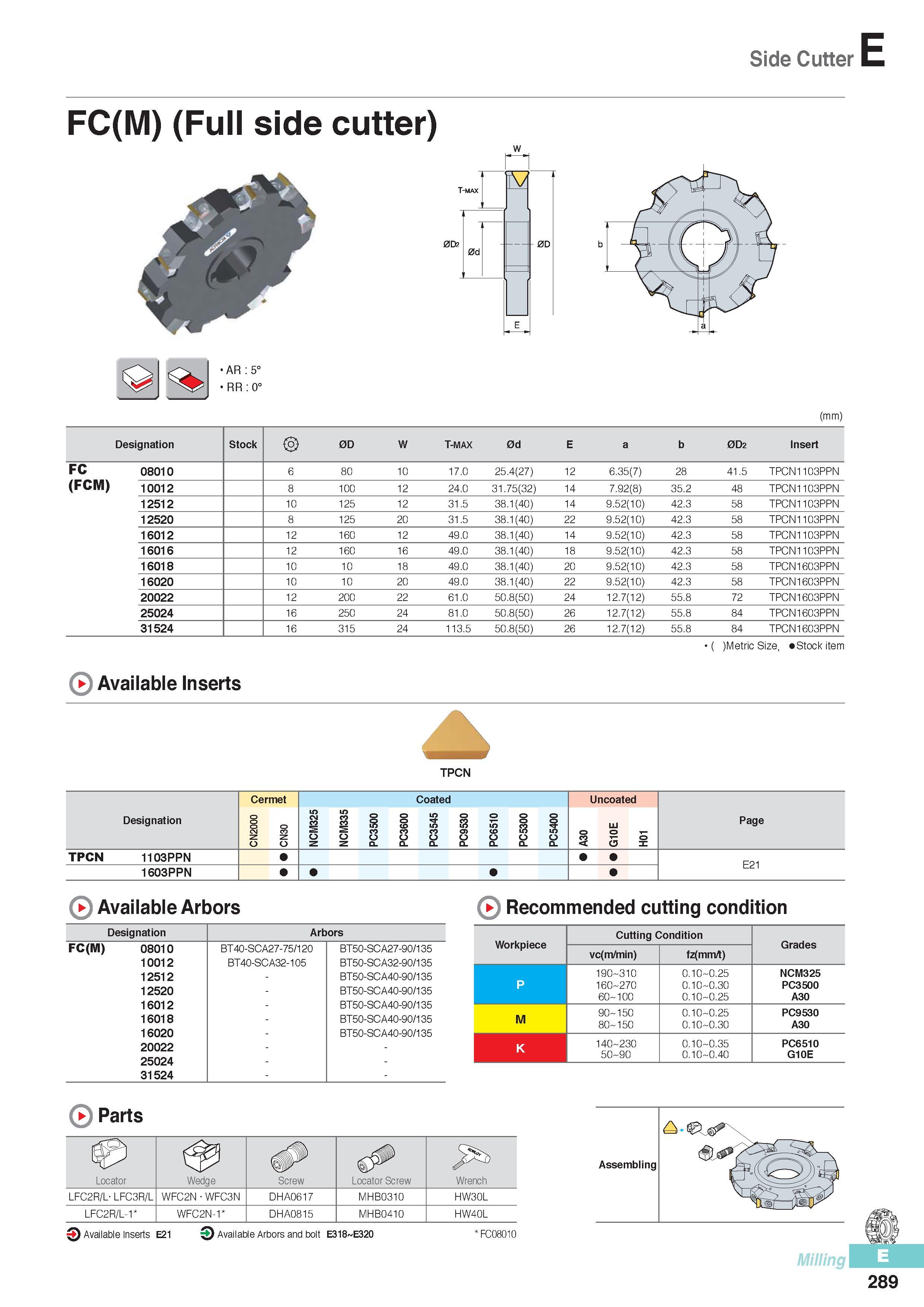

Side Cutter FC(M) (Full side cutter) W AR:5° RR:0° (mm) Designation Stock 0D W T-MAX 0d E a b 0D2 Insert FC 08010 6 80 10 17.0 25.4(27) 12 6.35(7) 28 41.5 TPCN1103PPN (FCM) 10012 8 100 12 24.0 31.75(32) 14 7.92(8) 35.2 48 TPCN1103PPN 12512 10 125 12 31.5 38.1(40) 14 9.52(10) 42.3 58 TPCN1103PPN 12520 8 125 20 31.5 38.1(40) 22 9.52(10) 42.3 58 TPCN1103PPN 16012 12 160 12 49.0 38.1(40) 14 9.52(10) 42.3 58 TPCN1103PPN 16016 12 160 16 49.0 38.1(40) 18 9.52(10) 42.3 58 TPCN1103PPN 16018 10 10 18 49.0 38.1(40) 20 9.52(10) 42.3 58 TPCN1603PPN 16020 10 10 20 49.0 38.1(40) 22 9.52(10) 42.3 58 TPCN1603PPN 20022 12 200 22 61.0 50.8(50) 24 12.7(12) 55.8 72 TPCN1603PPN 25024 16 250 24 81.0 50.8(50) 26 12.7(12) 55.8 84 TPCN1603PPN 31524 16 315 24 113.5 50.8(50) 26 12.7(12) 55.8 84 TPCN1603PPN ( Available Inserts ( )MetricSize, Stock item TPCN Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page TPCN 1103PPN E21 1603PPN 0 Available Arbors Designation Arbors FC(M) 08010 BT40-SCA27-75/120 BT50-SCA27-90/135 10012 BT40-SCA32-105 BT50-SCA32-90/135 12512 - BT50-SCA40-90/135 12520 - BT50-SCA40-90/135 16012 - BT50-SCA40-90/135 16018 - BT50-SCA40-90/135 16020 - BT50-SCA40-90/135 20022 25024 31524 0 Recommended cutting condition Workpiece Cutting Condition Grades vc(m/min) fz(mm/t) P 190 310 160 270 60 100 5 0 5 .2 .3 .2 0. 0. 0. 0. 0. 0. NCM325 PC3500 A30 M 90 150 80 150 5 0 .2 .3 0. 0. 0. 0. PC9530 A30 K 140 230 50 90 5 0 .3 .4 0. 0. 0. 0. PC6510 G10E 289
