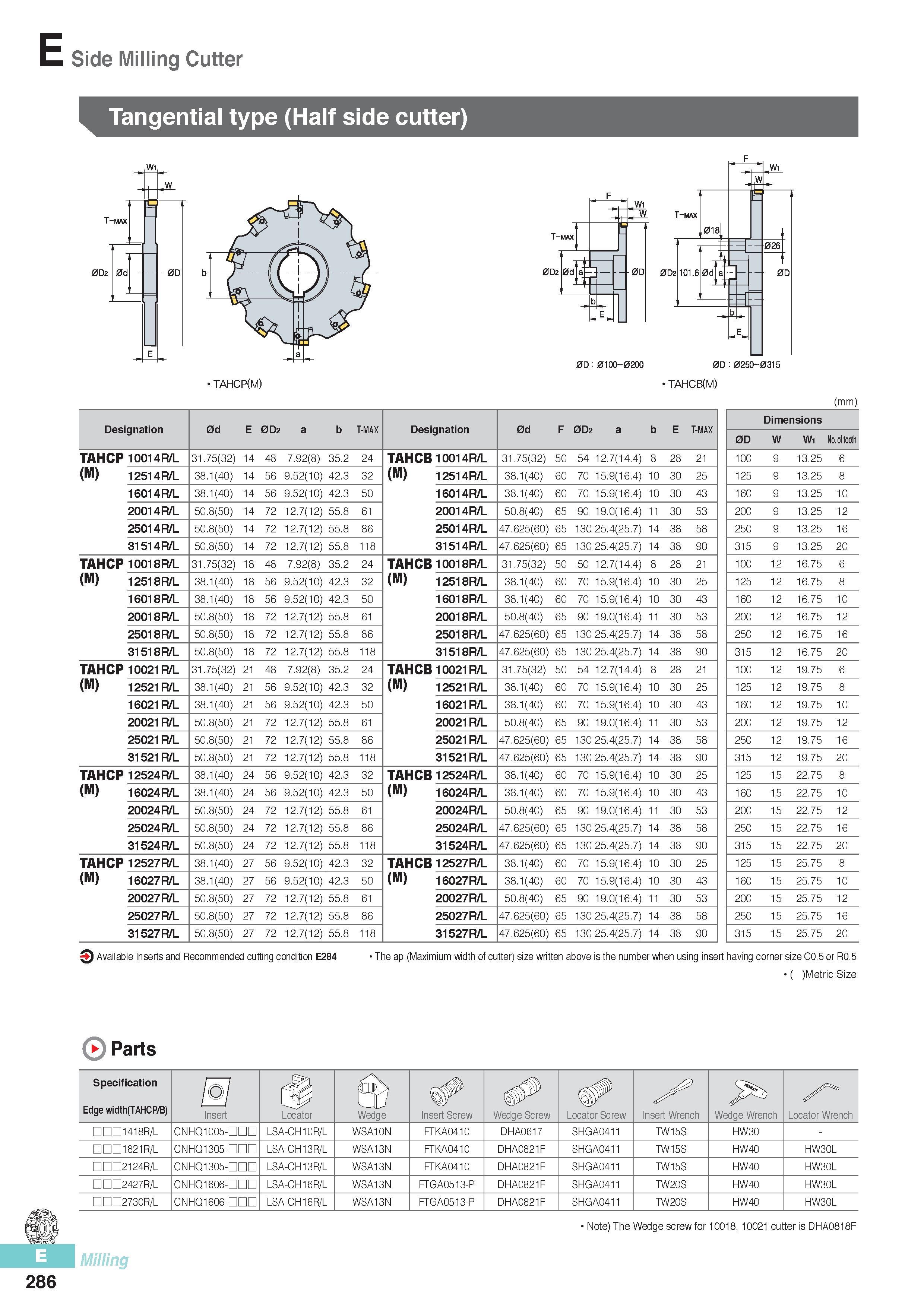

Side Milling Cutter Tangential type (Half side cutter) 0D2 0d 0D 0D2 0d ,W1 _W T-max - 0D ,,018 ir 101.6 0d JL 026 0D 0100-0200 TAHCP(M) 0D 0250-0315 TAHCB(M) Designation 0d E 0D2 a b T-MAX Designation 0d F 0D2 a b E T-MAX TAHCP 10014R/L 31.75(32) 14 48 7.92(8) 35.2 24 TAHCB 10014R/L 31.75(32) 50 54 12.7(14.4) 8 28 21 (M) 12514R/L 38.1(40) 14 56 9.52(10) 42.3 32 (M) 12514R/L 38.1(40) 60 70 15.9(16.4) 10 30 25 16014R/L 38.1(40) 14 56 9.52(10) 42.3 50 16014R/L 38.1(40) 60 70 15.9(16.4) 10 30 43 20014R/L 50.8(50) 14 72 12.7(12) 55.8 61 20014R/L 50.8(40) 65 90 19.0(16.4) 11 30 53 25014R/L 50.8(50) 14 72 12.7(12) 55.8 86 25014R/L 47.625(60) 65 130 25.4(25.7) 14 38 58 31514R/L 50.8(50) 14 72 12.7(12) 55.8 118 31514R/L 47.625(60) 65 130 25.4(25.7) 14 38 90 TAHCP 10018R/L 31.75(32) 18 48 7.92(8) 35.2 24 TAHCB 10018R/L 31.75(32) 50 50 12.7(14.4) 8 28 21 (M) 12518R/L 38.1(40) 18 56 9.52(10) 42.3 32 (M) 12518R/L 38.1(40) 60 70 15.9(16.4) 10 30 25 16018R/L 38.1(40) 18 56 9.52(10) 42.3 50 16018R/L 38.1(40) 60 70 15.9(16.4) 10 30 43 20018R/L 50.8(50) 18 72 12.7(12) 55.8 61 20018R/L 50.8(40) 65 90 19.0(16.4) 11 30 53 25018R/L 50.8(50) 18 72 12.7(12) 55.8 86 25018R/L 47.625(60) 65 130 25.4(25.7) 14 38 58 31518R/L 50.8(50) 18 72 12.7(12) 55.8 118 31518R/L 47.625(60) 65 130 25.4(25.7) 14 38 90 TAHCP 10021R/L 31.75(32) 21 48 7.92(8) 35.2 24 TAHCB 10021R/L 31.75(32) 50 54 12.7(14.4) 8 28 21 (M) 12521R/L 38.1(40) 21 56 9.52(10) 42.3 32 (M) 12521R/L 38.1(40) 60 70 15.9(16.4) 10 30 25 16021R/L 38.1(40) 21 56 9.52(10) 42.3 50 16021R/L 38.1(40) 60 70 15.9(16.4) 10 30 43 20021R/L 50.8(50) 21 72 12.7(12) 55.8 61 20021R/L 50.8(40) 65 90 19.0(16.4) 11 30 53 25021R/L 50.8(50) 21 72 12.7(12) 55.8 86 25021R/L 47.625(60) 65 130 25.4(25.7) 14 38 58 31521R/L 50.8(50) 21 72 12.7(12) 55.8 118 31521R/L 47.625(60) 65 130 25.4(25.7) 14 38 90 TAHCP 12524R/L 38.1(40) 24 56 9.52(10) 42.3 32 TAHCB 12524R/L 38.1(40) 60 70 15.9(16.4) 10 30 25 (M) 16024R/L 38.1(40) 24 56 9.52(10) 42.3 50 (M) 16024R/L 38.1(40) 60 70 15.9(16.4) 10 30 43 20024R/L 50.8(50) 24 72 12.7(12) 55.8 61 20024R/L 50.8(40) 65 90 19.0(16.4) 11 30 53 25024R/L 50.8(50) 24 72 12.7(12) 55.8 86 25024R/L 47.625(60) 65 130 25.4(25.7) 14 38 58 31524R/L 50.8(50) 24 72 12.7(12) 55.8 118 31524R/L 47.625(60) 65 130 25.4(25.7) 14 38 90 TAHCP 12527R/L 38.1(40) 27 56 9.52(10) 42.3 32 TAHCB 12527R/L 38.1(40) 60 70 15.9(16.4) 10 30 25 (M) 16027R/L 38.1(40) 27 56 9.52(10) 42.3 50 (M) 16027R/L 38.1(40) 60 70 15.9(16.4) 10 30 43 20027R/L 50.8(50) 27 72 12.7(12) 55.8 61 20027R/L 50.8(40) 65 90 19.0(16.4) 11 30 53 25027R/L 50.8(50) 27 72 12.7(12) 55.8 86 25027R/L 47.625(60) 65 130 25.4(25.7) 14 38 58 31527R/L 50.8(50) 27 72 12.7(12) 55.8 118 31527R/L 47.625(60) 65 130 25.4(25.7) 14 38 90 (mm) Dimensions 0D W Wi No. of tooth 100 9 13.25 6 125 9 13.25 8 160 9 13.25 10 200 9 13.25 12 250 9 13.25 16 315 9 13.25 20 100 12 16.75 6 125 12 16.75 8 160 12 16.75 10 200 12 16.75 12 250 12 16.75 16 315 12 16.75 20 100 12 19.75 6 125 12 19.75 8 160 12 19.75 10 200 12 19.75 12 250 12 19.75 16 315 12 19.75 20 125 15 22.75 8 160 15 22.75 10 200 15 22.75 12 250 15 22.75 16 315 15 22.75 20 125 15 25.75 8 160 15 25.75 10 200 15 25.75 12 250 15 25.75 16 315 15 25.75 20 Available Inserts and Recommended cutting condition E284 The ap (Maximium width of cutter) size written aboveis the number when using insert having corner size C0.5 or R0.5 ( )Metric Size Parts Specification Edge width(TAHCP/B) Insert Locator Wedge Insert Screw Wedge Screw Locator Screw Insert Wrench Wedge Wrench Locator Wrench 1418R/L CNHQ1005-DDD LSA-CH10R/L WSA10N FTKA0410 DHA0617 SHGA0411 TW15S HW30 - 1821R/L CNHQ1305-DDD LSA-CH13R/L WSA13N FTKA0410 DHA0821F SHGA0411 TW15S HW40 HW30L 2124R/L CNHQ1305-DDD LSA-CH13R/L WSA13N FTKA0410 DHA0821F SHGA0411 TW15S HW40 HW30L 2427R/L CNHQ1606-DDD LSA-CH16R/L WSA13N FTGA0513-P DHA0821F SHGA0411 TW20S HW40 HW30L 2730R/L CNHQ1606-DDD LSA-CH16R/L WSA13N FTGA0513-P DHA0821F SHGA0411 TW20S HW40 HW30L Note) TheWedgescrewfor10018, 10021 cutterisDHA0818F E Milling 286
