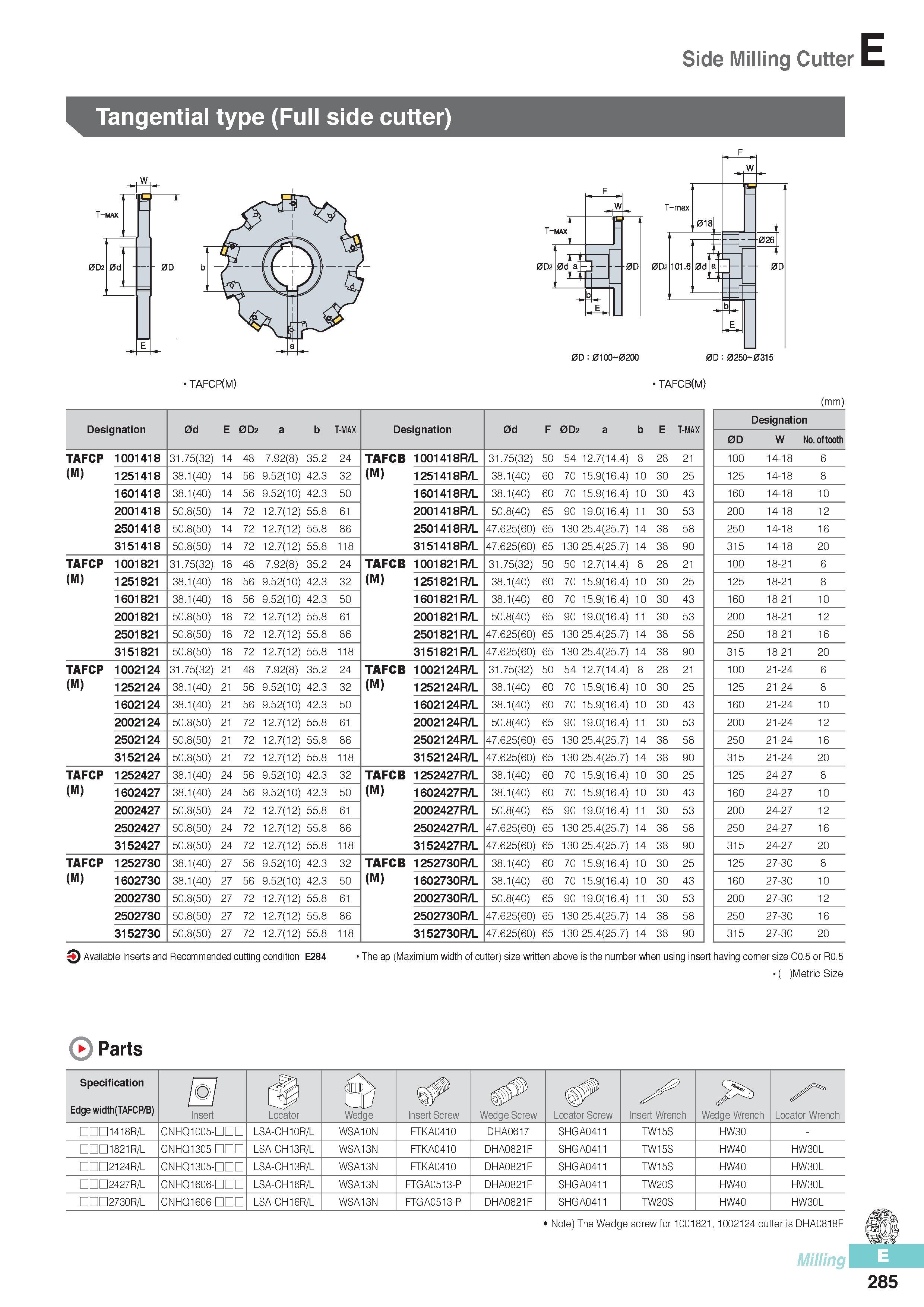

Side Milling Cutter Tangential type (Full side cutter) TAFCP(M) TAFCB(M) (mm) Designation 0d E 0D2 a b T-MAX Designation 0d F 0D2 a b E T-MAX TAFCP 1001418 31.75(32) 14 48 7.92(8) 35.2 24 TAFCB 1001418R/L 31.75(32) 50 54 12.7(14.4) 8 28 21 (M) 1251418 38.1(40) 14 56 9.52(10) 42.3 32 (M) 1251418R/L 38.1(40) 60 70 15.9(16.4) 10 30 25 1601418 38.1(40) 14 56 9.52(10) 42.3 50 1601418R/L 38.1(40) 60 70 15.9(16.4) 10 30 43 2001418 50.8(50) 14 72 12.7(12) 55.8 61 2001418R/L 50.8(40) 65 90 19.0(16.4) 11 30 53 2501418 50.8(50) 14 72 12.7(12) 55.8 86 2501418R/L 47.625(60) 65 130 25.4(25.7) 14 38 58 3151418 50.8(50) 14 72 12.7(12) 55.8 118 3151418R/L 47.625(60) 65 130 25.4(25.7) 14 38 90 TAFCP 1001821 31.75(32) 18 48 7.92(8) 35.2 24 TAFCB 1001821R/L 31.75(32) 50 50 12.7(14.4) 8 28 21 (M) 1251821 38.1(40) 18 56 9.52(10) 42.3 32 (M) 1251821R/L 38.1(40) 60 70 15.9(16.4) 10 30 25 1601821 38.1(40) 18 56 9.52(10) 42.3 50 1601821R/L 38.1(40) 60 70 15.9(16.4) 10 30 43 2001821 50.8(50) 18 72 12.7(12) 55.8 61 2001821R/L 50.8(40) 65 90 19.0(16.4) 11 30 53 2501821 50.8(50) 18 72 12.7(12) 55.8 86 2501821R/L 47.625(60) 65 130 25.4(25.7) 14 38 58 3151821 50.8(50) 18 72 12.7(12) 55.8 118 3151821R/L 47.625(60) 65 130 25.4(25.7) 14 38 90 TAFCP 1002124 31.75(32) 21 48 7.92(8) 35.2 24 TAFCB 1002124R/L 31.75(32) 50 54 12.7(14.4) 8 28 21 (M) 1252124 38.1(40) 21 56 9.52(10) 42.3 32 (M) 1252124R/L 38.1(40) 60 70 15.9(16.4) 10 30 25 1602124 38.1(40) 21 56 9.52(10) 42.3 50 1602124R/L 38.1(40) 60 70 15.9(16.4) 10 30 43 2002124 50.8(50) 21 72 12.7(12) 55.8 61 2002124R/L 50.8(40) 65 90 19.0(16.4) 11 30 53 2502124 50.8(50) 21 72 12.7(12) 55.8 86 2502124R/L 47.625(60) 65 130 25.4(25.7) 14 38 58 3152124 50.8(50) 21 72 12.7(12) 55.8 118 3152124R/L 47.625(60) 65 130 25.4(25.7) 14 38 90 TAFCP 1252427 38.1(40) 24 56 9.52(10) 42.3 32 TAFCB 1252427R/L 38.1(40) 60 70 15.9(16.4) 10 30 25 (M) 1602427 38.1(40) 24 56 9.52(10) 42.3 50 (M) 1602427R/L 38.1(40) 60 70 15.9(16.4) 10 30 43 2002427 50.8(50) 24 72 12.7(12) 55.8 61 2002427R/L 50.8(40) 65 90 19.0(16.4) 11 30 53 2502427 50.8(50) 24 72 12.7(12) 55.8 86 2502427R/L 47.625(60) 65 130 25.4(25.7) 14 38 58 3152427 50.8(50) 24 72 12.7(12) 55.8 118 3152427R/L 47.625(60) 65 130 25.4(25.7) 14 38 90 TAFCP 1252730 38.1(40) 27 56 9.52(10) 42.3 32 TAFCB 1252730R/L 38.1(40) 60 70 15.9(16.4) 10 30 25 (M) 1602730 38.1(40) 27 56 9.52(10) 42.3 50 (M) 1602730R/L 38.1(40) 60 70 15.9(16.4) 10 30 43 2002730 50.8(50) 27 72 12.7(12) 55.8 61 2002730R/L 50.8(40) 65 90 19.0(16.4) 11 30 53 2502730 50.8(50) 27 72 12.7(12) 55.8 86 2502730R/L 47.625(60) 65 130 25.4(25.7) 14 38 58 3152730 50.8(50) 27 72 12.7(12) 55.8 118 3152730R/L 47.625(60) 65 130 25.4(25.7) 14 38 90 Designation 0D W No. of tooth 100 14-18 6 125 14-18 8 160 14-18 10 200 14-18 12 250 14-18 16 315 14-18 20 100 18-21 6 125 18-21 8 160 18-21 10 200 18-21 12 250 18-21 16 315 18-21 20 100 21-24 6 125 21-24 8 160 21-24 10 200 21-24 12 250 21-24 16 315 21-24 20 125 24-27 8 160 24-27 10 200 24-27 12 250 24-27 16 315 24-27 20 125 27-30 8 160 27-30 10 200 27-30 12 250 27-30 16 315 27-30 20 Available Inserts and Recommended cutting condition E284 The ap (Maximium width of cutter) size written aboveis the number when using insert having corner size C0.5 or R0.5 ( )MetricSize Parts Specification Edge width(TAFCP/B) / / Insert Locator Wedge Insert Screw Wedge Screw Locator Screw Insert Wrench Wedge Wrench Locator Wrench 1418R/L CNHQ1005-DDD LSA-CH10R/L WSA10N FTKA0410 DHA0617 SHGA0411 TW15S HW30 - 1821R/L CNHQ1305-DDD LSA-CH13R/L WSA13N FTKA0410 DHA0821F SHGA0411 TW15S HW40 HW30L 2124R/L CNHQ1305-DDD LSA-CH13R/L WSA13N FTKA0410 DHA0821F SHGA0411 TW15S HW40 HW30L 2427R/L CNHQ1606-DDD LSA-CH16R/L WSA13N FTGA0513-P DHA0821F SHGA0411 TW20S HW40 HW30L 2730R/L CNHQ1606-DDD LSA-CH16R/L WSA13N FTGA0513-P DHA0821F SHGA0411 TW20S HW40 HW30L Note) The Wedge screw for 1001821, 1002124 cutter is DHA0818F Millin E 285
