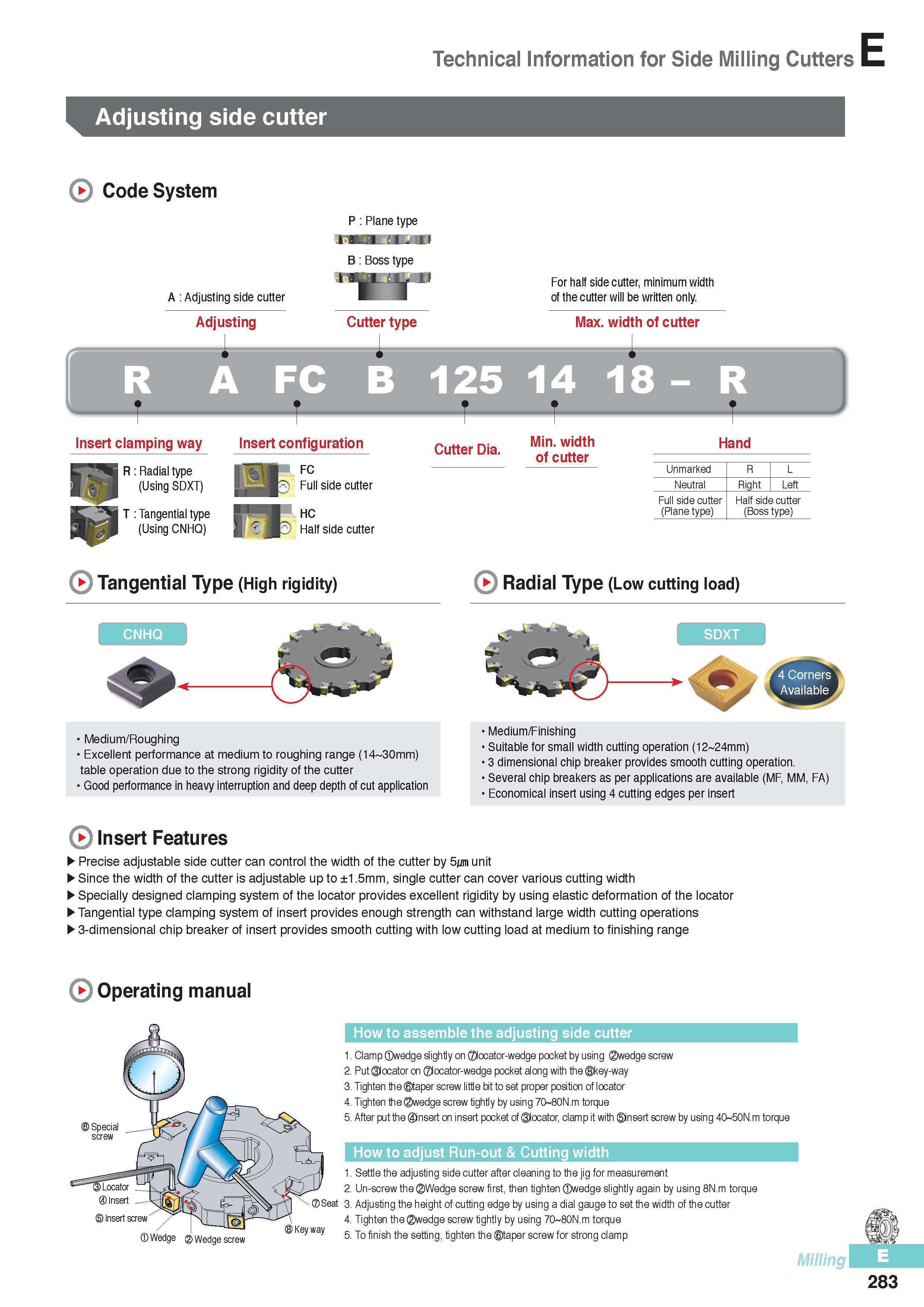

Technical Information for Side Milling Cutters Adjusting side cutter Code System A Adjusting side cutter Adjusting P Plane type B: Boss type Cutter type For half side cutter, minimum width of the cutter will be written only. Max. width of cutter R A FC B 125 14 18 - R Insert clamping way Insert configuration R: Radial type (Using SDXT) T Tangential type (Using CNHQ) FC p)' Full side cutter HC Half side cutter Tangential Type (High rigidity) Cutter Dia. Min. width of cutter Hand Unmarked R L Neutral Right Left Full sidecutter Half side cutter (Plane type) (Boss type) Radial Type (Low cutting load) Medium/Roughing Excellent performance at medium to roughing range (14 30mm) table operation due to the strong rigidity of the cutter Good performance in heavy interruption and deep depth of cut application Medium/Finishing Suitable for small width cutting operation (12 24mm) 3 dimensional chip breaker provides smooth cutting operation. Several chip breakers as per applications are available (MF, MM, FA) Economical insert using 4 cutting edges per insert Insert Features Precise adjustable side cutter can control the width of the cutter by 5pm unit Since the width of the cutter is adjustable up to ±1.5mm, single cutter can cover various cutting width Specially designed clamping system of the locator provides excellent rigidity by using elastic deformation of the locator Tangential type clamping system of insert provides enough strength can withstand large width cutting operations 3-dimensional chip breaker of insert provides smooth cutting with low cutting load at medium to finishing range Operating manual How to assemble the adjusting side cutter I Locator Insert Insertscrew'' Wedge Wedgescrew 1. Clamp wedge slightly on0ocator-wedge pocket by using wedge screw 2. Put locator on0ocator-wedge pocket along with the key-way 3. Tighten the taper screw littie bit to set proper position oflocator 4. Tighten the wedge screw tightly by using 70 80N.m torque 5. Afterputthe nsertoninsert pocketof ocator, clamp it with nsertscrew by using 40 50N.m torque How to adjust Run-out & Cutting width 1. Settle the adjusting sidecutteraftercleaning to thejig formeasurement 2. Un-screwthe Wedge screw first, then tightenQ)wedge slightly again by using 8N.m torque Seat 3. Adjusting the height of cutting edge by using a dial gauge to set the width of the cutter 4. Tighten the wedge screw tightly by using 70 80N.m torque 5. To finish the setting, tighten the taper screw for strong clamp Milling 283
