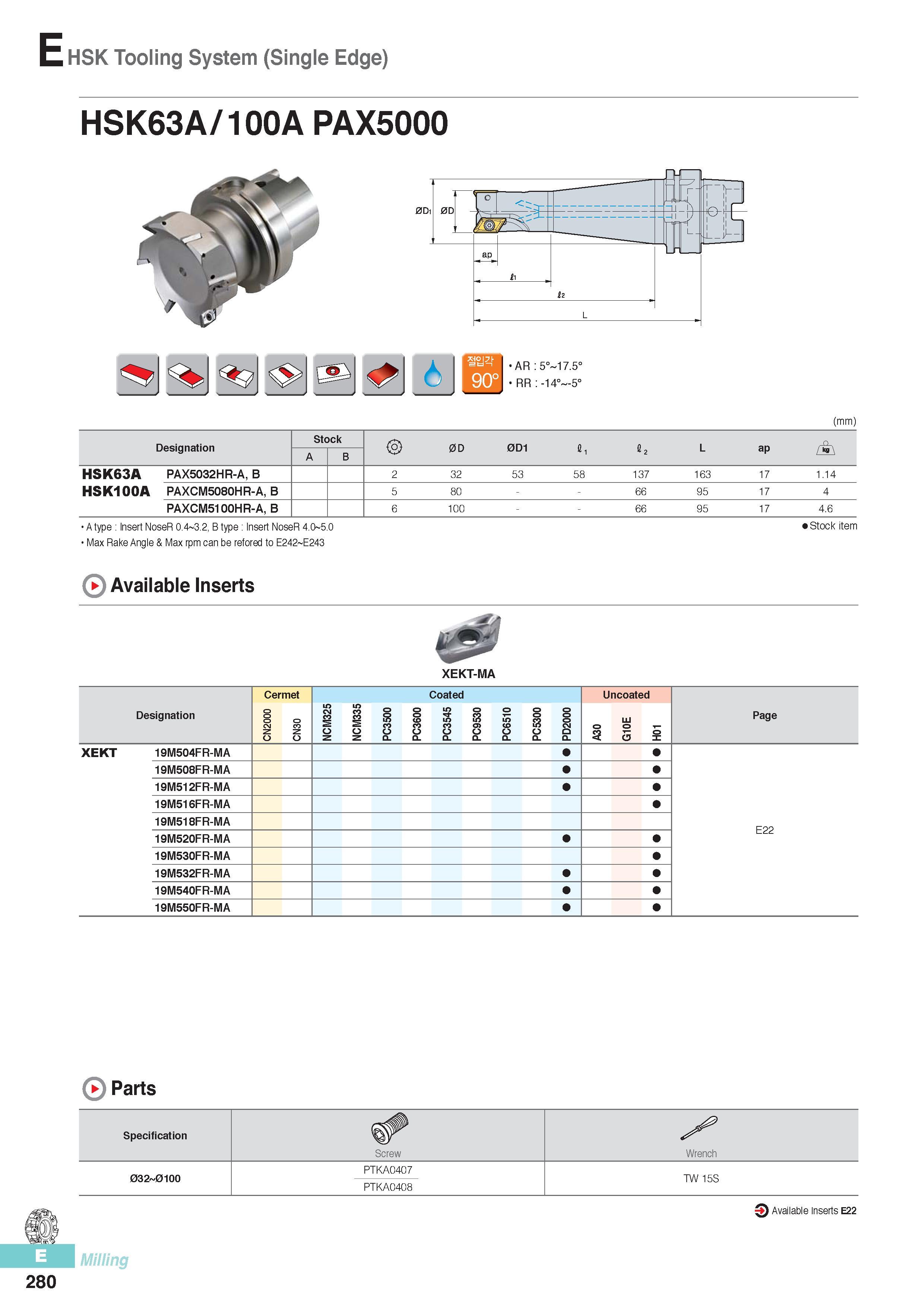

HSK Tooling System (Single Edge) HSK63A/ 100A PAX5000 AR:5° 17.5° RR -14° 5° (mm) Designation Stock 0D 0D1 i I 2 L ap L+\ A B HSK63A PAX5032HR-A, B 2 32 53 58 137 163 17 1.14 HSK100A PAXCM5080HR-A, B 5 80 66 95 17 4 PAXCM5100HR-A, B 6 100 66 95 17 4.6 A type Insert NoseR 0.4 3.2, B type Insert NoseR 4.0 5.0 Max Rake Angle & Max rpm can be refored to E242 E243 Stock item Available Inserts XEKT-MA Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 0 500 3 C CL 0 0 3 C CL PC3545 PC9530 PC6510 PC5300 PD2000 A30 G10E H01 Page XEKT 19M504FR-MA E22 19M508FR-MA 19M512FR-MA 19M516FR-MA 19M518FR-MA 19M520FR-MA 19M530FR-MA 19M532FR-MA 19M540FR-MA 19M550FR-MA Q Parts Specification Screw Wrench PTKA0407 032 0100 TW 15S PTKA0408 Available Inserts E22 Milling 280
