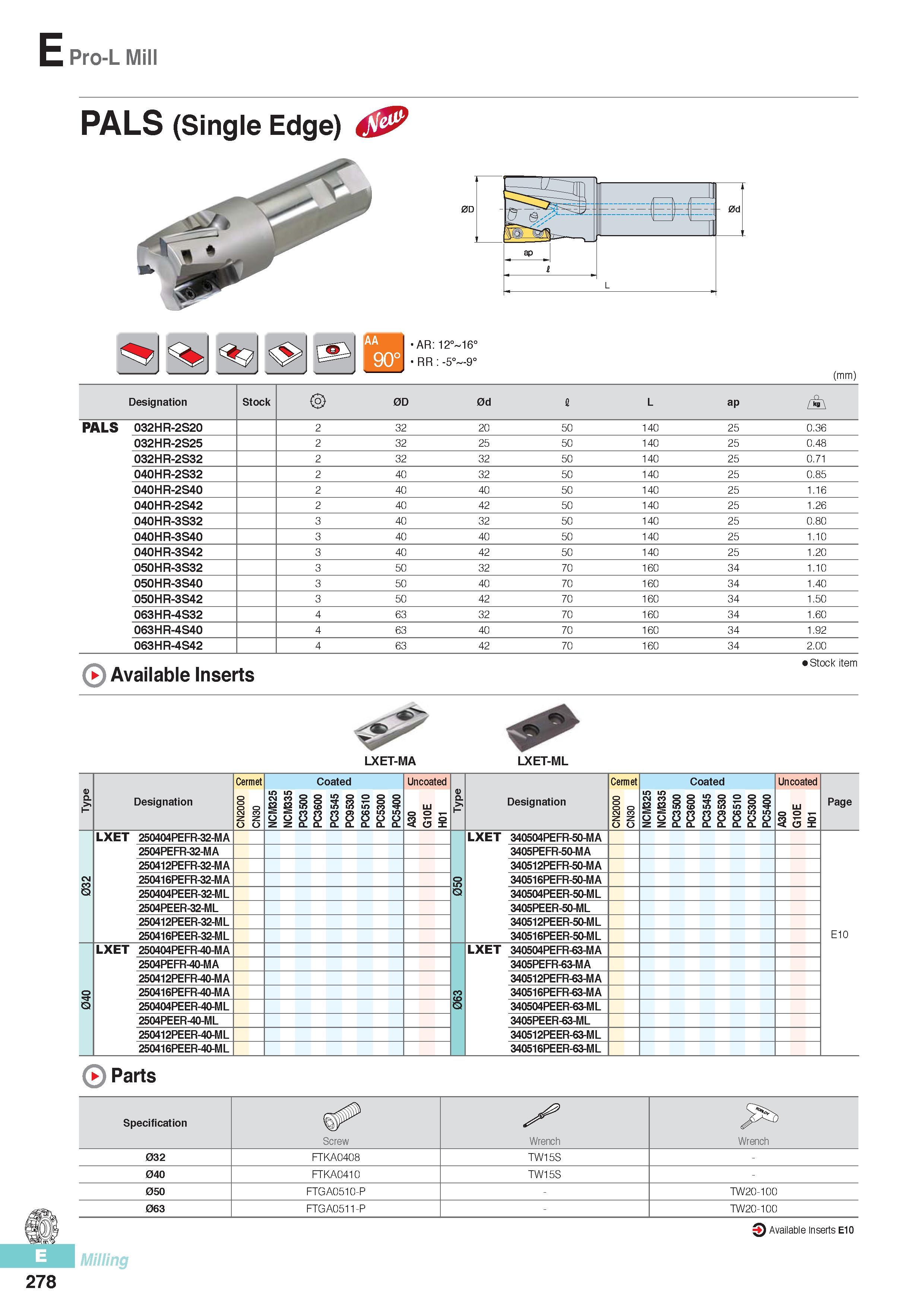

E Pro-L Mill PALS (Single Edge) 4 AR: 12° 16° I RR -5° 9° (mm) Designation Stock 0D 0d I L ap PALS 032HR-2S20 2 32 20 50 140 25 0.36 032HR-2S25 2 32 25 50 140 25 0.48 032HR-2S32 2 32 32 50 140 25 0.71 040HR-2S32 2 40 32 50 140 25 0.85 040HR-2S40 2 40 40 50 140 25 1.16 040HR-2S42 2 40 42 50 140 25 1.26 040HR-3S32 3 40 32 50 140 25 0.80 040HR-3S40 3 40 40 50 140 25 1.10 040HR-3S42 3 40 42 50 140 25 1.20 050HR-3S32 3 50 32 70 160 34 1.10 050HR-3S40 3 50 40 70 160 34 1.40 050HR-3S42 3 50 42 70 160 34 1.50 063HR-4S32 4 63 32 70 160 34 1.60 063HR-4S40 4 63 40 70 160 34 1.92 063HR-4S42 4 63 42 70 160 34 2.00 ( Available Inserts Stock item t5- LXET-MA LXET-ML Cermet Coated Uncoated Cermet Coated Uncoated Type Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 0 0 3 5 C P 0 400 5 C CL A30 G10E H01 e p Designation CN2000 0 3 N C NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 o A30 G10E 01 X Page LXET 250404PEFR-32-MA LXET 340504PEFR-50-MA 2504PEFR-32-MA 3405PEFR-50-MA 250412PEFR-32-MA 340512PEFR-50-MA 250416PEFR-32-MA 340516PEFR-50-MA Q 250404PEER-32-ML Q 340504PEER-50-ML 2504PEER-32-ML 3405PEER-50-ML 250412PEER-32-ML 340512PEER-50-ML 250416PEER-32-ML 340516PEER-50-ML E10 LXET 250404PEFR-40-MA LXET 340504PEFR-63-MA 2504PEFR-40-MA 3405PEFR-63-MA 250412PEFR-40-MA 340512PEFR-63-MA o 250416PEFR-40-MA 340516PEFR-63-MA Q 250404PEER-40-ML Q 340504PEER-63-ML 2504PEER-40-ML 3405PEER-63-ML 250412PEER-40-ML 340512PEER-63-ML 250416PEER-40-ML 340516PEER-63-ML ( Parts Specification Screw s Wrench Wrench 032 FTKA0408 TW15S - 040 FTKA0410 TW15S - 050 FTGA0510-P - TW20-100 063 FTGA0511-P - TW20-100 Available Inserts E10 Milling 278
