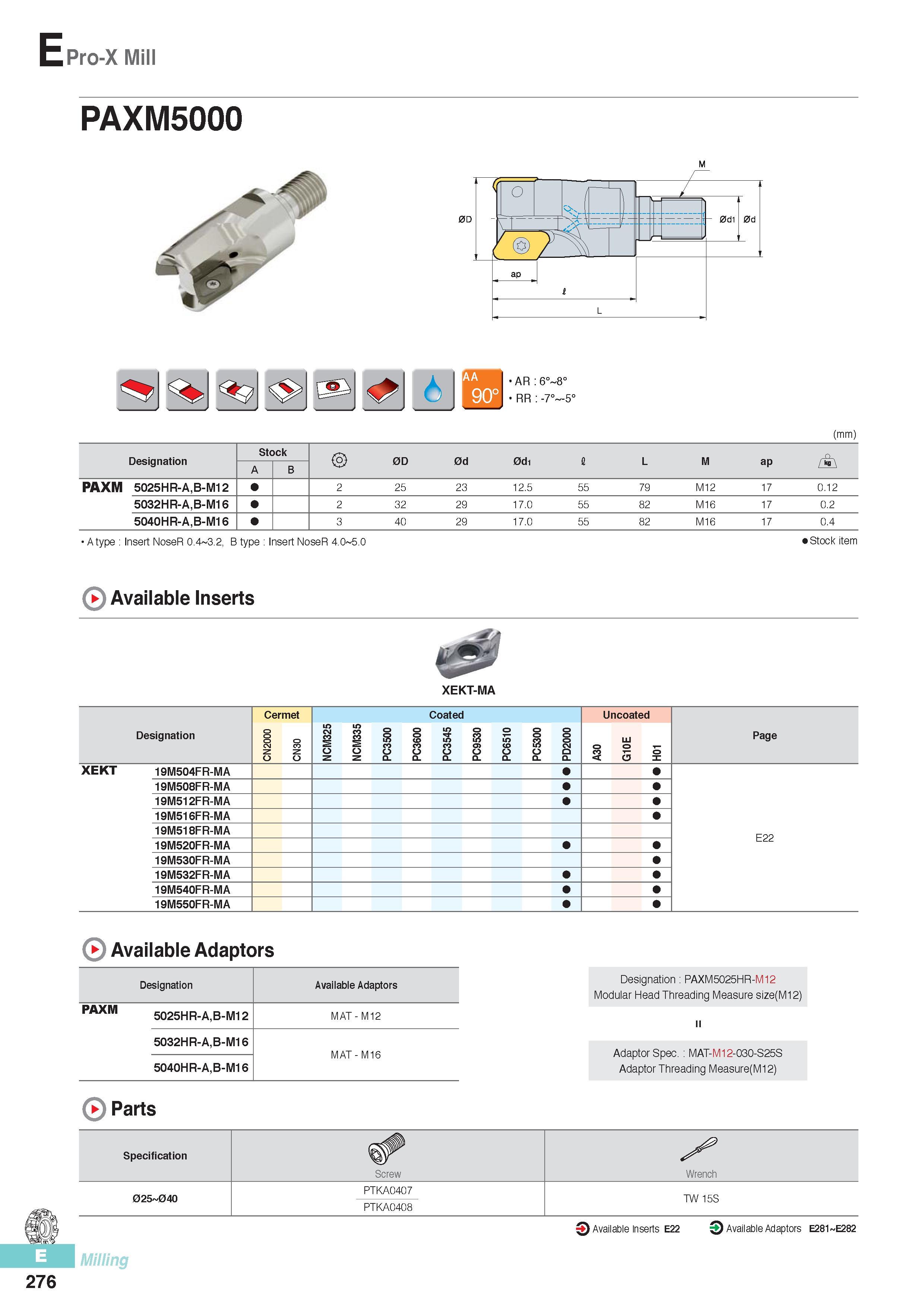

EPro-X Mill PAXM5000 6° 8° :-7° -5° (mm) Designation Stock 0D 0d 0d1 I L M ap A A B PAXM 5025HR-A,B-M12 2 25 23 12.5 55 79 M12 17 0.12 5032HR-A,B-M16 2 32 29 17.0 55 82 M16 17 0.2 5040HR-A,B-M16 3 40 29 17.0 55 82 M16 17 0.4 A type Insert NoseR 0.4 3.2, B type Insert NoseR 4.0 5.0 Stock item Available Inserts XEKT-MA Designation Cermet Coated 50 3 C 53 C Uncoated Page XEKT 19M504FR-MA 19M508FR-MA 19M512FR-MA 19M516FR-MA 19M518FR-MA 19M520FR-MA 19M530FR-MA 19M532FR-MA 19M540FR-MA 19M550FR-MA Available Adaptors Designation Available Adaptors PAXM 5025HR-A,B-M12 MAT-M12 5032HR-A,B-M16 MAT-M16 5040HR-A,B-M16 ( Parts Designation PAXM5025HR-M12 Modular Head Threading Measure size(M12) AdaptorSpec. MAT-M12-030-S25S Adaptor Threading Measure(M12) Specification Screw Wrench PTKA0407 025 040 TW 15S PTKA0408 Milling 276 0Available Inserts E22 Available Adaptors E281 E282
