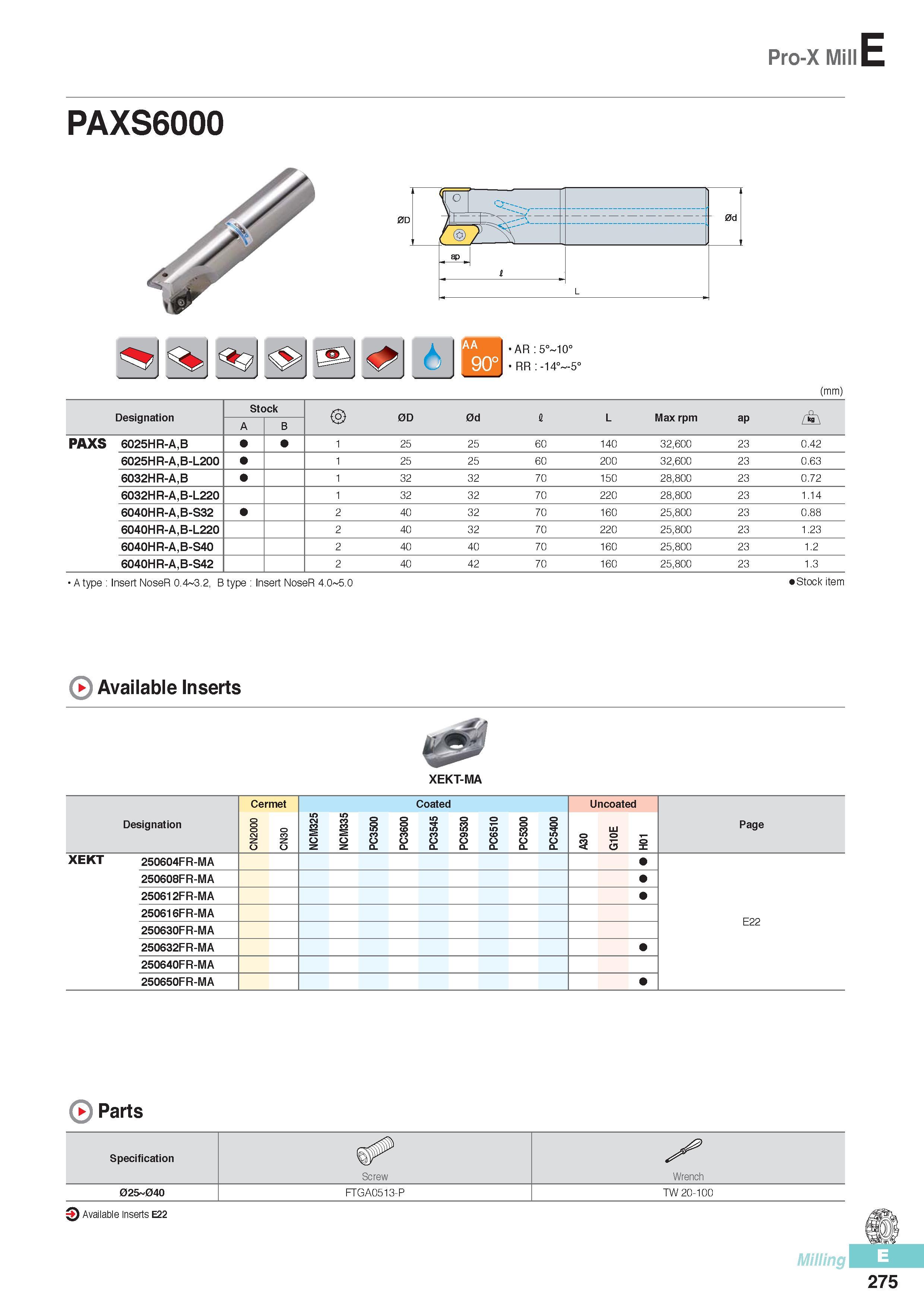

Pro-X Mill E PAXS6000 AR 5° 10° I RR -14° -; (mm) Designation Stock 0D 0d I L Max rpm ap A A B PAXS 6025HR-A,B 25 25 60 140 32,600 23 0.42 6025HR-A,B-L200 25 25 60 200 32,600 23 0.63 6032HR-A,B 32 32 70 150 28,800 23 0.72 6032HR-A,B-L220 32 32 70 220 28,800 23 1.14 6040HR-A,B-S32 2 40 32 70 160 25,800 23 0.88 6040HR-A,B-L220 2 40 32 70 220 25,800 23 1.23 6040HR-A,B-S40 2 40 40 70 160 25,800 23 1.2 6040HR-A,B-S42 2 40 42 70 160 25,800 23 1.3 A type Insert NoseR 0.4 3.2, B type Insert NoseR 4.0 5.0 Stock item 0 Available Inserts & XEKT-MA Cermet Coated Uncoated Designation CN2000 CN30 NCM325 seewoN 0 8 3 C O. PC3600 PC3545 PC9530 PC6510 PC5300 0 m C P o 3 G10E 01 X Page XEKT 250604FR-MA 250608FR-MA 250612FR-MA 250616FR-MA E22 250630FR-MA 250632FR-MA 250640FR-MA 250650FR-MA 0 Parts Specification Screw Wrench 025 040 FTGA0513-P TW 20-100 Available Inserts E22 Milling 275
