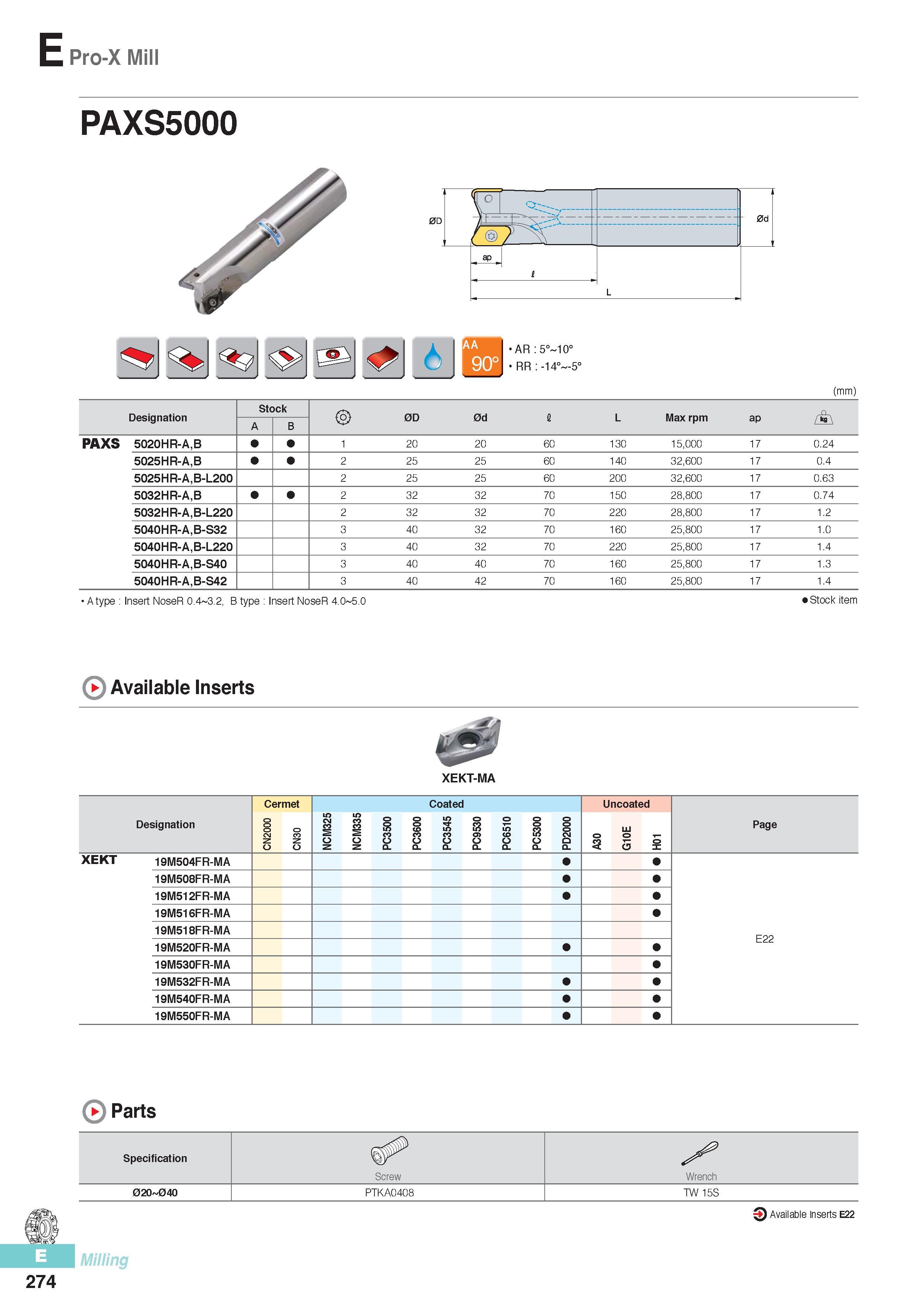

E Pro-X Mill PAXS5000 AR 5° 10° I RR -14° -5° (mm) Designation Stock 0D 0d I L Max rpm ap A A B PAXS 5020HR-A,B 20 20 60 130 15,000 17 0.24 5025HR-A,B 2 25 25 60 140 32,600 17 0.4 5025HR-A,B-L200 2 25 25 60 200 32,600 17 0.63 5032HR-A,B 2 32 32 70 150 28,800 17 0.74 5032HR-A,B-L220 2 32 32 70 220 28,800 17 1.2 5040HR-A,B-S32 3 40 32 70 160 25,800 17 1.0 5040HR-A,B-L220 3 40 32 70 220 25,800 17 1.4 5040HR-A,B-S40 3 40 40 70 160 25,800 17 1.3 5040HR-A,B-S42 3 40 42 70 160 25,800 17 1.4 A type Insert NoseR 0.4 3.2, B type Insert NoseR 4.0 5.0 Stock item ( Available Inserts XEKT-MA Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 0 500 3 C CL 0 0 3 C CL PC3545 PC9530 PC6510 0002DP OOCSOd A30 G10E H01 Page XEKT 19M504FR-MA E22 19M508FR-MA 19M512FR-MA 19M516FR-MA 19M518FR-MA 19M520FR-MA 19M530FR-MA 19M532FR-MA 19M540FR-MA 19M550FR-MA ( Parts Specification Screw Wrench 020 040 PTKA0408 TW 15S Available Inserts E22 Milling 274
