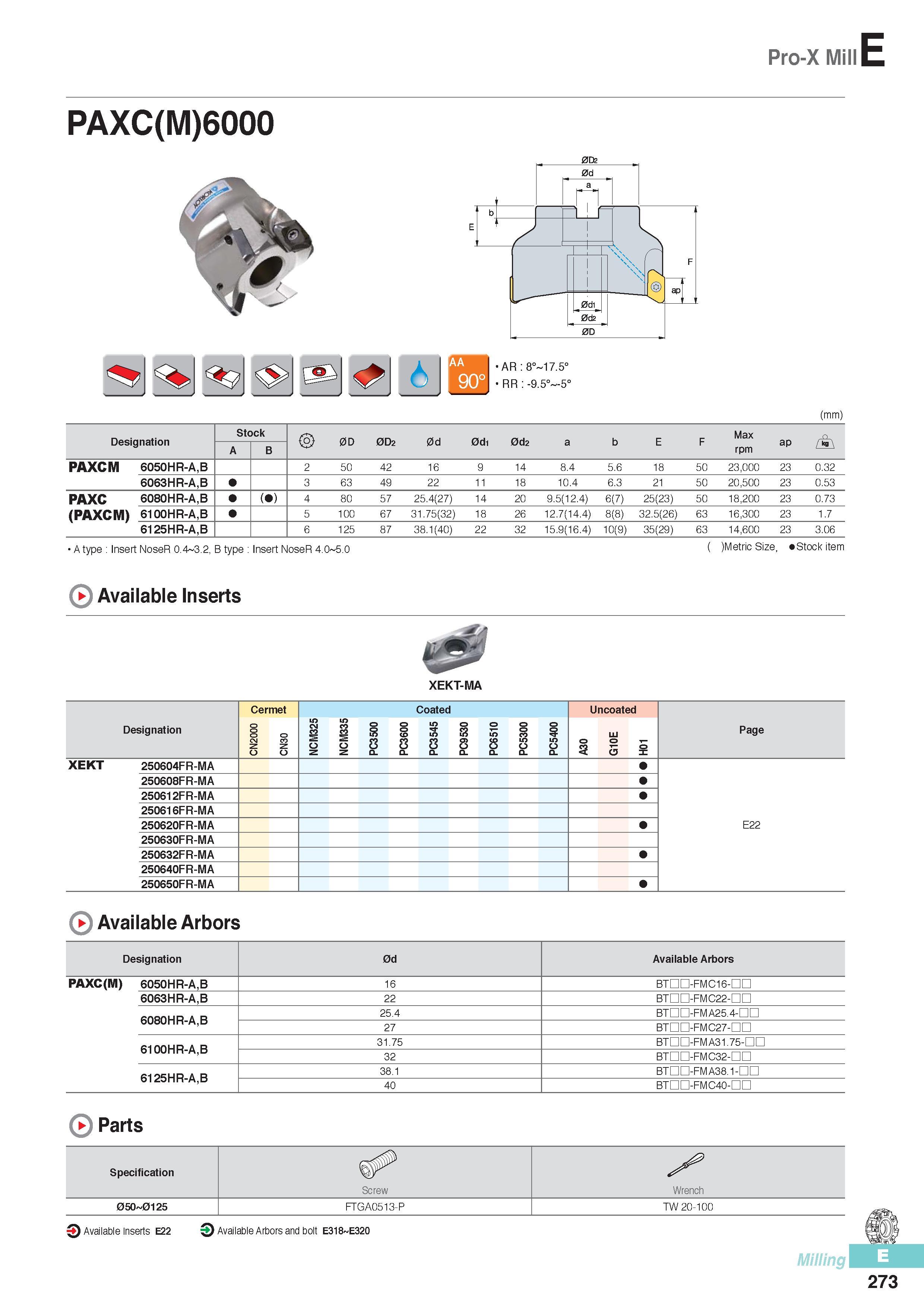

Pro-X Mill E PAXC(M)6000 AR 8° 17.5° RR: -9.5° -5° (mm) Designation Stock 0D 0D2 0d 0di 0d2 a b E F Max rpm ap A B PAXCM 6050HR-A,B 2 50 42 16 9 14 8.4 5.6 18 50 23,000 23 0.32 6063HR-A,B 3 63 49 22 11 18 10.4 6.3 21 50 20,500 23 0.53 PAXC 6080HR-A,B ( ) 4 80 57 25.4(27) 14 20 9.5(12.4) 6(7) 25(23) 50 18,200 23 0.73 (PAXCM) 6100HR-A,B 5 100 67 31.75(32) 18 26 12.7(14.4) 8(8) 32.5(26) 63 16,300 23 1.7 6125HR-A,B 6 125 87 38.1(40) 22 32 15.9(16.4) 10(9) 35(29) 63 14,600 23 3.06 A type Insert NoseR 0.4 3.2, B type Insert NoseR 4.0 5.0 ( )Metric Size, Stock item Available Inserts XEKT-MA Designation Cermet Coated Uncoated Page CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 0 0 3 5 C P PC5400 o 3 G10E H01 XEKT 250604FR-MA 250608FR-MA 250612FR-MA 250616FR-MA 250620FR-MA E22 250630FR-MA 250632FR-MA 250640FR-MA 250650FR-MA Available Arbors Designation 0d Available Arbors PAXC(M) 6050HR-A,B 16 BTHD-FMC16-HD 6063HR-A,B 22 BTHD-FMC22-HD 6080HR-A,B 25.4 BTHD-FMA25.4-HD 27 BTHD-FMC27-HD 6100HR-A,B 31.75 BTHD-FMA31.75-HD 32 BTHD-FMC32-HD 6125HR-A,B 38.1 BTHD-FMA38.1-HD 40 BTHD-FMC40-HD Parts Specification Screw Wrench 050 0125 FTGA0513-P TW 20-100 Available Inserts E22 Available Arbors and bolt E318 E320 Milling 273
