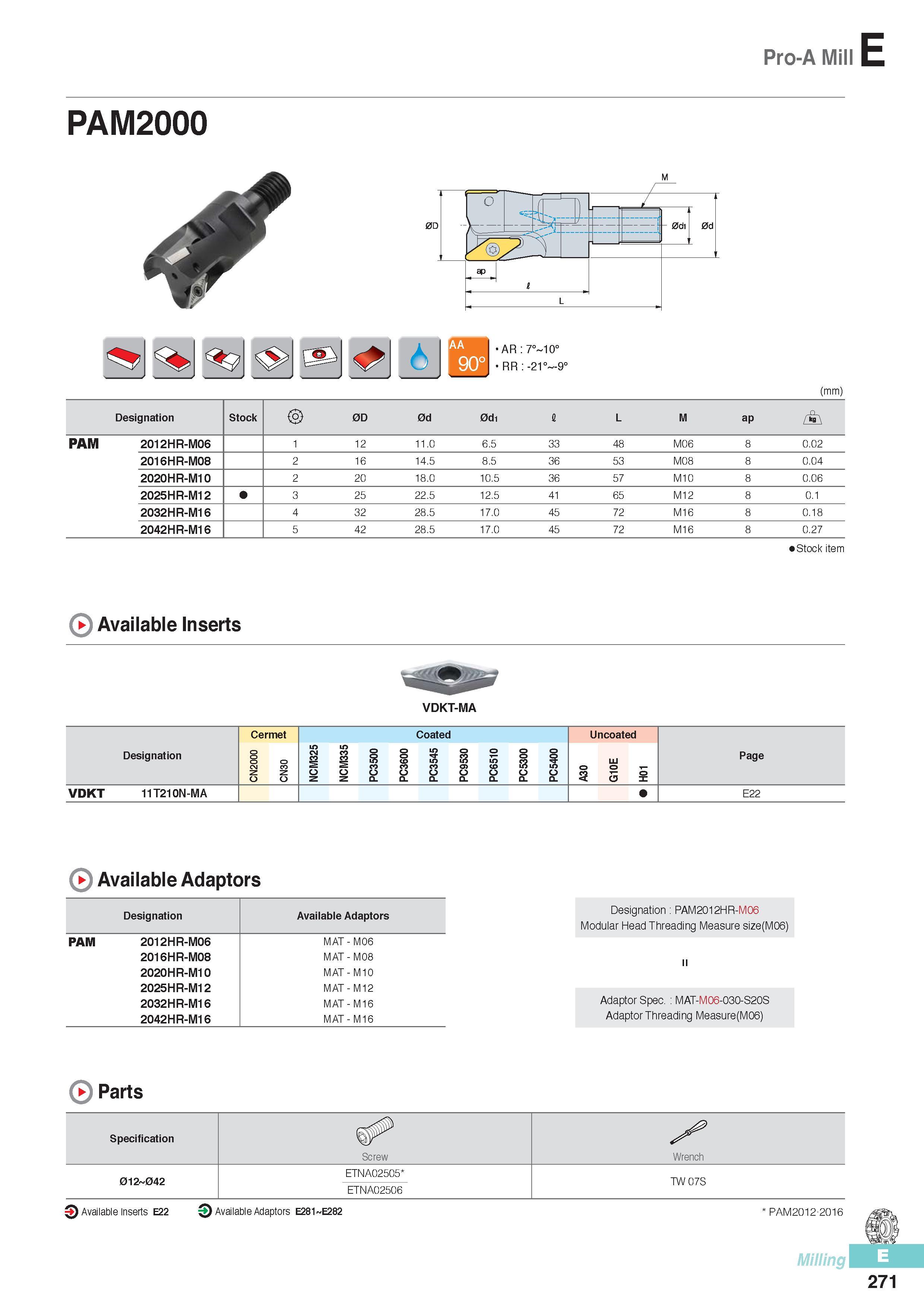

Pro-A Mill E PAM2000 & 6 AR 7° 10° RR -21° -c (mm) Designation Stock 0D 0d 0d1 I L M ap f+\ PAM 2012HR-M06 12 11.0 6.5 33 48 M06 8 0.02 2016HR-M08 2 16 14.5 8.5 36 53 M08 8 0.04 2020HR-M10 2 20 18.0 10.5 36 57 M10 8 0.06 2025HR-M12 3 25 22.5 12.5 41 65 M12 8 0.1 2032HR-M16 4 32 28.5 17.0 45 72 M16 8 0.18 2042HR-M16 5 42 28.5 17.0 45 72 M16 8 0.27 Stock item ( Available Inserts VDKT-MA Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page VDKT 11T210N-MA E22 0 Available Adaptors Designation Available Adaptors PAM 2012HR-M06 MAT-M06 2016HR-M08 MAT-M08 2020HR-M10 MAT-M10 2025HR-M12 MAT-M12 2032HR-M16 MAT-M16 2042HR-M16 MAT-M16 Designation PAM2012HR-M06 Modular Head Threading Measure size(M06) = Adaptor Spec. MAT-M06-030-S20S Adaptor Threading Measure(M06) ( Parts Specification Screw Wrench ETNA02505 012 042 TW 07S ETNA02506 Available Inserts E22 Available Adaptors E281 E282 PAM20122016 Milling 271
