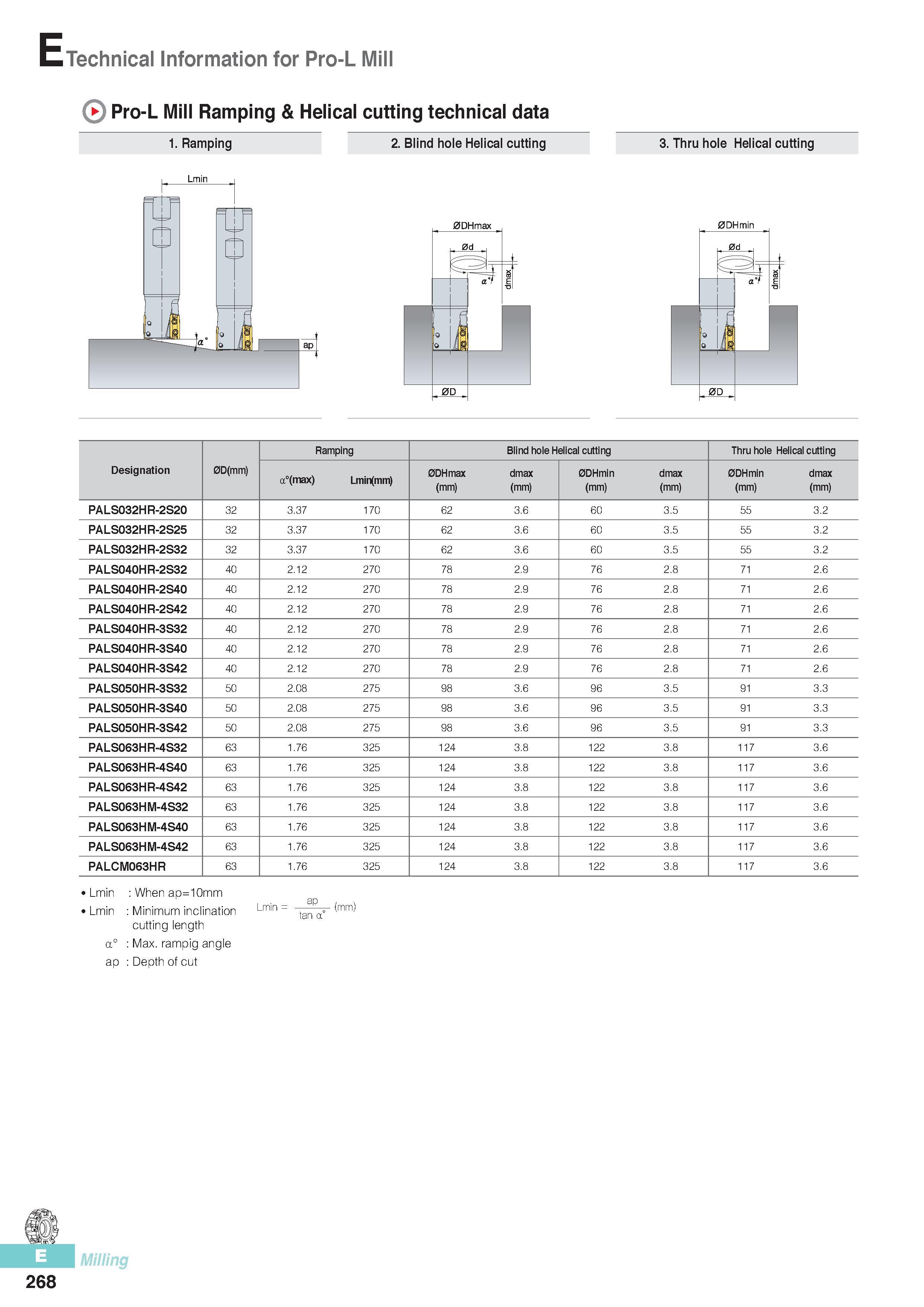

Technical Information for Pro-L Mill Pro-L Mill Ramping & Helical cutting technical data 1. Ramping 2. Blind hole Helical cutting 3. Thru hole Helical cutting Lmin 0DHmax 0DHmin Designation 0D(mm) Ramping Blind hole Helical cutting Thru hole Helical cutting a0(max) Lmin(mm) 0DHmax (mm) dmax (mm) 0DHmin (mm) dmax (mm) 0DHmin (mm) dmax (mm) PALS032HR-2S20 32 3.37 170 62 3.6 60 3.5 55 3.2 PALS032HR-2S25 32 3.37 170 62 3.6 60 3.5 55 3.2 PALS032HR-2S32 32 3.37 170 62 3.6 60 3.5 55 3.2 PALS040HR-2S32 40 2.12 270 78 2.9 76 2.8 71 2.6 PALS040HR-2S40 40 2.12 270 78 2.9 76 2.8 71 2.6 PALS040HR-2S42 40 2.12 270 78 2.9 76 2.8 71 2.6 PALS040HR-3S32 40 2.12 270 78 2.9 76 2.8 71 2.6 PALS040HR-3S40 40 2.12 270 78 2.9 76 2.8 71 2.6 PALS040HR-3S42 40 2.12 270 78 2.9 76 2.8 71 2.6 PALS050HR-3S32 50 2.08 275 98 3.6 96 3.5 91 3.3 PALS050HR-3S40 50 2.08 275 98 3.6 96 3.5 91 3.3 PALS050HR-3S42 50 2.08 275 98 3.6 96 3.5 91 3.3 PALS063HR-4S32 63 1.76 325 124 3.8 122 3.8 117 3.6 PALS063HR-4S40 63 1.76 325 124 3.8 122 3.8 117 3.6 PALS063HR-4S42 63 1.76 325 124 3.8 122 3.8 117 3.6 PALS063HM-4S32 63 1.76 325 124 3.8 122 3.8 117 3.6 PALS063HM-4S40 63 1.76 325 124 3.8 122 3.8 117 3.6 PALS063HM-4S42 63 1.76 325 124 3.8 122 3.8 117 3.6 PALCM063HR 63 1.76 325 124 3.8 122 3.8 117 3.6 Lmin When ap=10mm Lmin Minimum inclination cutting length a° Max. rampig angle ap Depth of cut a M (mm) tan a 268
