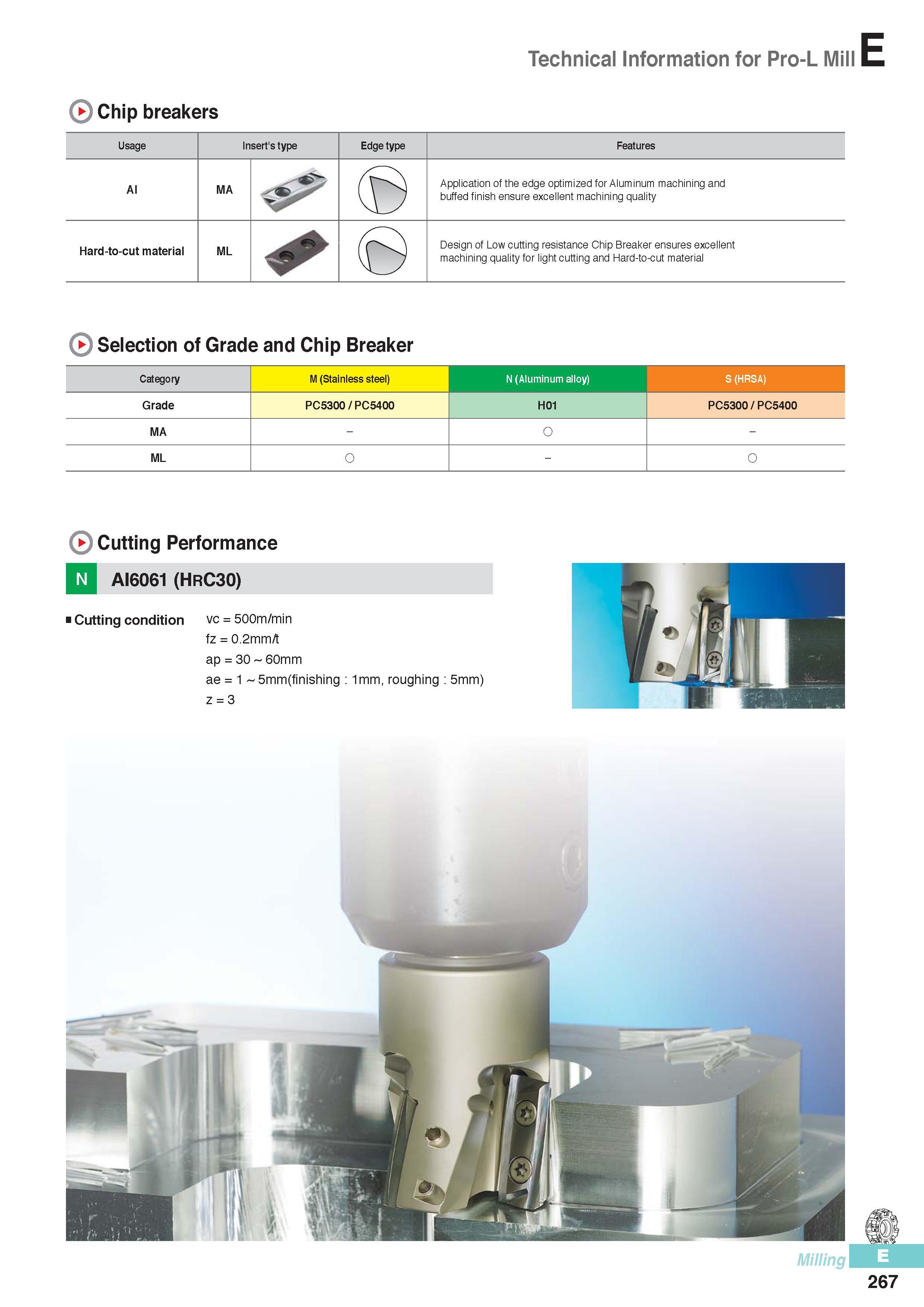

Chip breakers Technical Information for Pro-L Mill Usage Insert's type Edge type Features AI MA Application of the edge optimized for Aluminum machining and buffed finish ensure excellent machining quality Hard-to-cut material ML 6 Design of Low cutting resistance Chip Breaker ensures excellent machining quality for light cutting and Hard-to-cut material Selection of Grade and Chip Breaker Category M (Stainless steel) N (Aluminum alloy) S (HRSA) Grade PC5300 / PC5400 H01 PC5300 / PC5400 MA - O - ML O - O Cutting Performance 267
