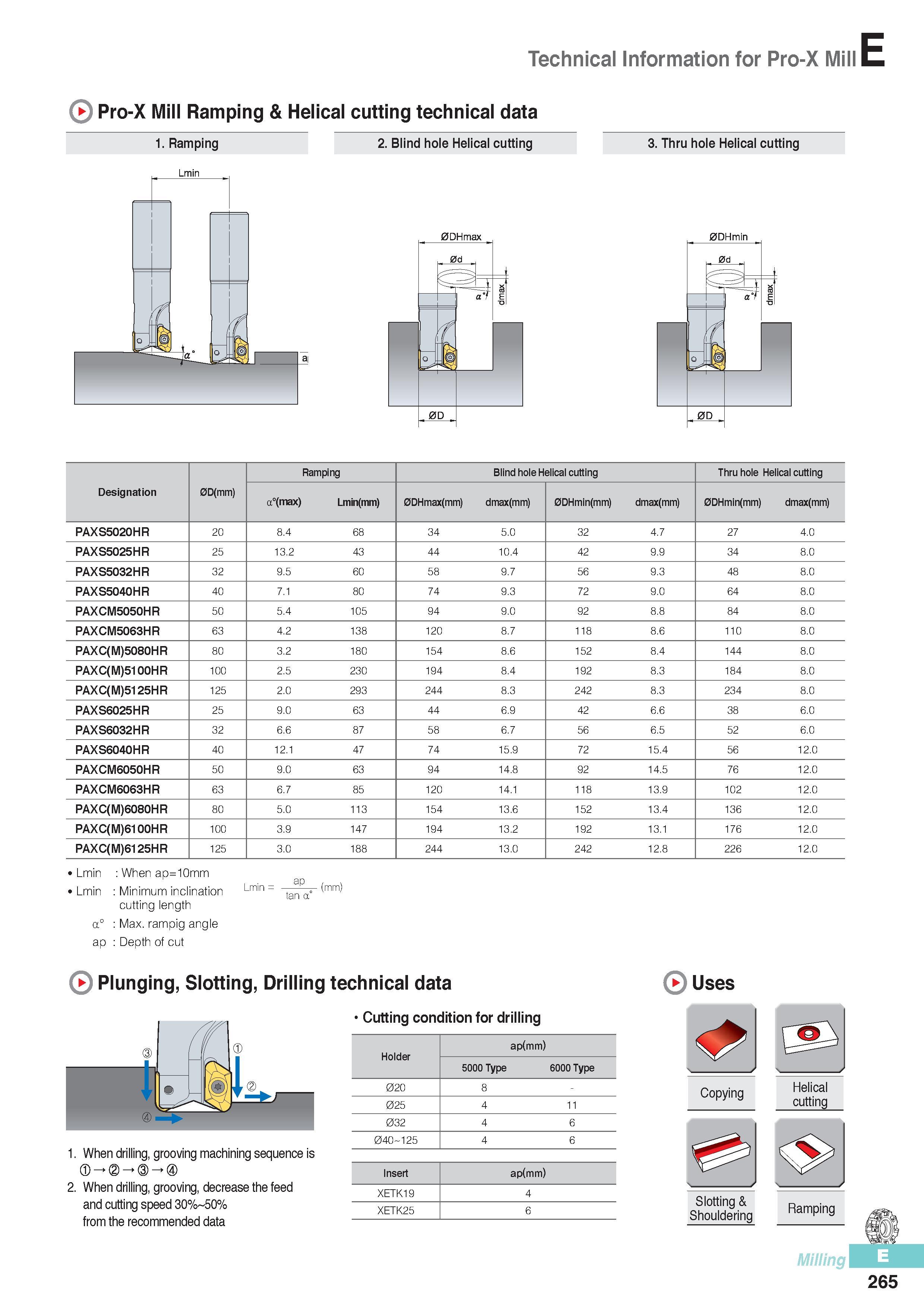

Technical Information for Pro-X Mill Pro-X Mill Ramping & Helical cutting technical data 1. Ramping 2. Blind hole Helical cutting 3. Thru hole Helical cutting Lmin Designation 0D(mm) Ramping Blind hole Helical cutting Thru hole Helical cutting a0(max) Lmin(mm) 0DHmax(mm) dmax(mm) 0DHmin(mm) dmax(mm) 0DHmin(mm) dmax(mm) PAXS5020HR 20 8.4 68 34 5.0 32 4.7 27 4.0 PAXS5025HR 25 13.2 43 44 10.4 42 9.9 34 8.0 PAXS5032HR 32 9.5 60 58 9.7 56 9.3 48 8.0 PAXS5040HR 40 7.1 80 74 9.3 72 9.0 64 8.0 PAXCM5050HR 50 5.4 105 94 9.0 92 8.8 84 8.0 PAXCM5063HR 63 4.2 138 120 8.7 118 8.6 110 8.0 PAXC(M)5080HR 80 3.2 180 154 8.6 152 8.4 144 8.0 PAXC(M)5100HR 100 2.5 230 194 8.4 192 8.3 184 8.0 PAXC(M)5125HR 125 2.0 293 244 8.3 242 8.3 234 8.0 PAXS6025HR 25 9.0 63 44 6.9 42 6.6 38 6.0 PAXS6032HR 32 6.6 87 58 6.7 56 6.5 52 6.0 PAXS6040HR 40 12.1 47 74 15.9 72 15.4 56 12.0 PAXCM6050HR 50 9.0 63 94 14.8 92 14.5 76 12.0 PAXCM6063HR 63 6.7 85 120 14.1 118 13.9 102 12.0 PAXC(M)6080HR 80 5.0 113 154 13.6 152 13.4 136 12.0 PAXC(M)6100HR 100 3.9 147 194 13.2 192 13.1 176 12.0 PAXC(M)6125HR 125 3.0 188 244 13.0 242 12.8 226 12.0 Lmin When ap=10mm Lmin Minimum inclination Lmin = ta n a° (mm) cutting length a° Max. rampig angle ap Depth of cut Plunging, Slotting, Drilling technical data Cutting condition for drilling 2. When drilling, grooving, decrease the feed and cutting speed 30% 50% from the recommended data Uses Holder ap(mm) 5000 Type 6000 Type 020 8 - 025 4 11 032 4 6 040 125 4 6 Insert ap(mm) XETK19 4 XETK25 6 Copying Slotting & Shouldering Helical cutting Ramping Milling 265
