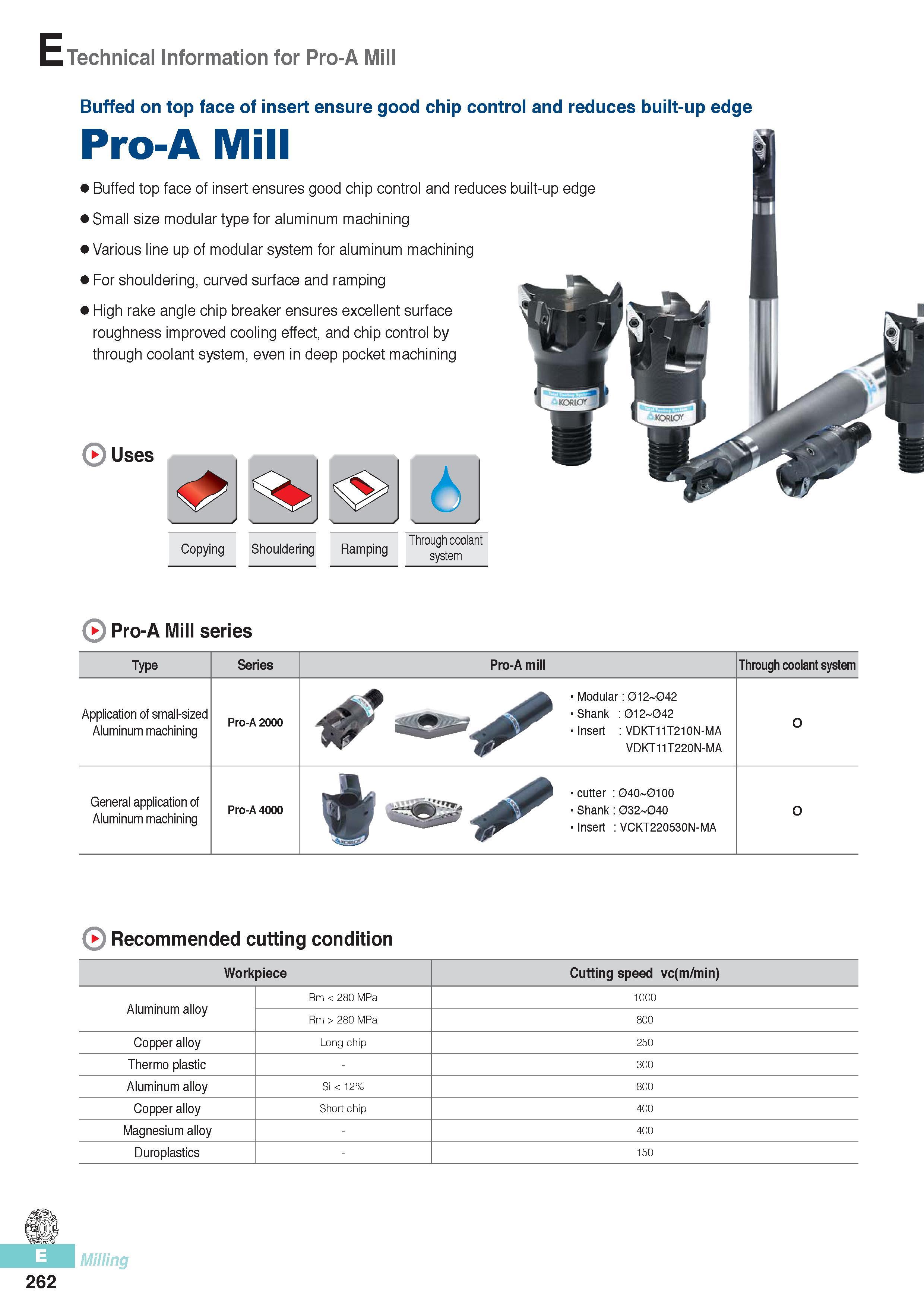

Technical Information for Pro-A Mill Buffed on top face of insert ensure good chip control and reduces built-up edge Pro-A Mill Buffed top face of insert ensures good chip control and reduces built-up edge Small size modular type for aluminum machining Various line up of modular system for aluminum machining For shouldering, curved surface and ramping High rake angle chip breaker ensures excellent surface roughness improved cooling effect, and chip control by through coolant system, even in deep pocket machining Uses Copying Shouldering Ramping Through coolant system Pro-A Mill series Type Series Pro-A mill Through coolant system Application of small-sized Aluminum machining Pro-A 2000 Modular: 012-042 -Shank 012-042 JHOr W 'lnsert VDKT11T210N-MA VDKT11T220N-MA 0 General application of Aluminum machining Pro-A 4000 r -cutter 040-0100 -Shank 032-040 W0 insert VCKT220530N-MA 0 Recommended cutting condition Workpiece Cutting speed vc(m/min) Aluminum alloy Rm 280 MPa 100C Rm > 280 MPa 800 Copper alloy Long chip 250 Thermo plastic - 300 Aluminum alloy Si 12% 800 Copper alloy Short chip 400 Magnesium alloy - 400 Duroplastics - 150 262
