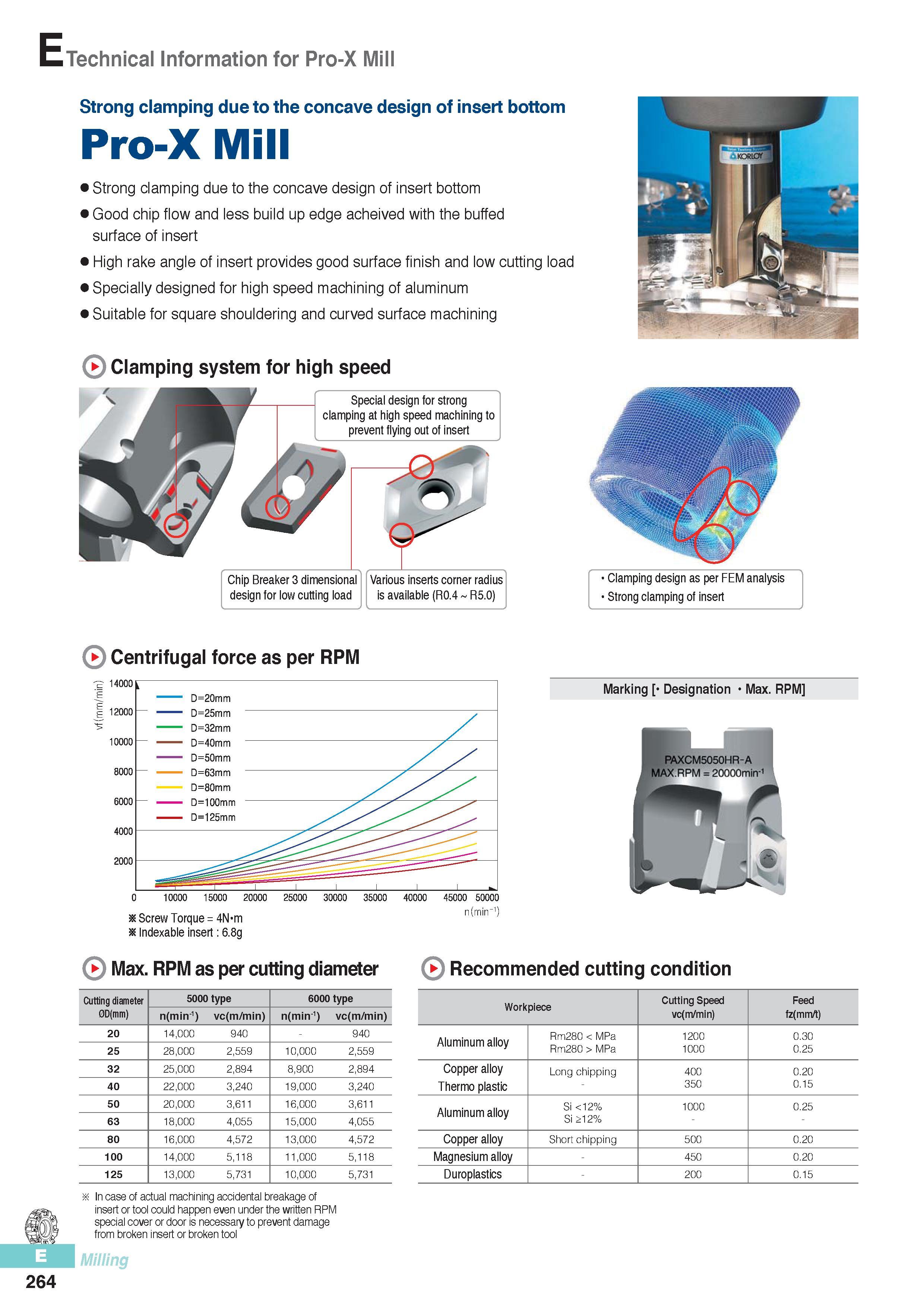

Technical Information for Pro-X Mill Strong clamping due to the concave design of insert bottom Pro-X Mill Strong clamping due to the concave design of insert bottom Good chip flow and less build up edge acheived with the buffed surface of insert High rake angle of insert provides good surface finish and low cutting load Specially designed for high speed machining of aluminum Suitable for square shouldering and curved surface machining Clamping system for high speed Clamping design as per FEM analysis Strong clamping of insert Centrifugal force as per RPM SKScrewTorque = 4N'm & Indexable insert: 6.8g Max. RPM as per cutting diameter Recommended cutting condition Cutting diameter 5000 type 6000 type Cutting Speed Feed 0D(mm) n(min-1) vc(m/min) n(min-1) vc(m/min) vc(m/min) fz(mm/t) 20 14,000 940 940 Aluminum alloy Rm280 MPa 1200 0.3C 25 28,000 2,559 10,000 2,559 Rm280 > MPa 1000 0.25 32 25,000 2,894 8,900 2,894 Copper alloy Long chipping 400 0.20 40 22,000 3,240 19,000 3,240 Thermo plastic 350 0.15 50 20,000 3,611 16,000 3,611 Aluminum alloy Si <12% 1000 0.25 63 18,000 4,055 15,000 4,055 Si >12% - 80 16,000 4,572 13,000 4,572 Copper alloy Short chipping 500 0.20 100 14,000 5,118 11,000 5,118 Magnesium alloy 450 0.20 125 13,000 5,731 10,000 5,731 Duroplastics 200 0.15 x In case of actual machining accidental breakage of insert or tool could happen even under the written RPM Mm special cover or door is necessary to prevent damage 11 from broken insert or broken tool E Milling 264
