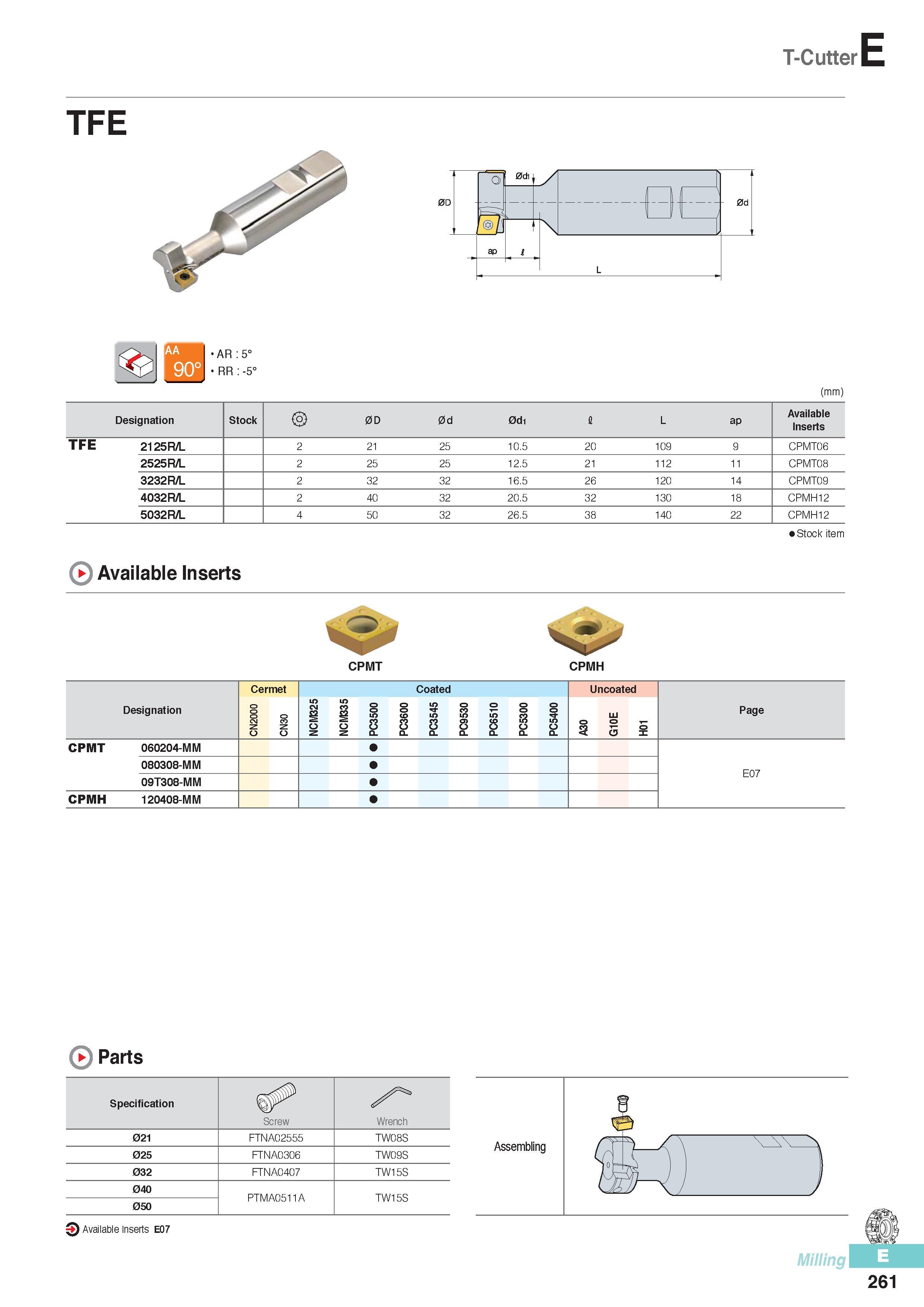

T-CutterE TFE AR :5° I RR -5° (mm) Designation Stock 0D 0d 0d1 I L ap Available Inserts TFE 2125R/L 2 21 25 10.5 20 109 9 CPMT06 2525R/L 2 25 25 12.5 21 112 11 CPMT08 3232R/L 2 32 32 16.5 26 120 14 CPMT09 4032R/L 2 40 32 20.5 32 130 18 CPMH12 5032R/L 4 50 32 26.5 38 140 22 CPMH12 ( Available Inserts Stock item CPMT CPMH Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page CPMT 060204-MM E07 080308-MM 09T308-MM CPMH 120408-MM ( Parts Specification Screw Wrench 021 FTNA02555 TW08S 025 FTNA0306 TW09S 032 FTNA0407 TW15S 040 PTMA0511A TW15S 050 Available Inserts E07 Milling 261
