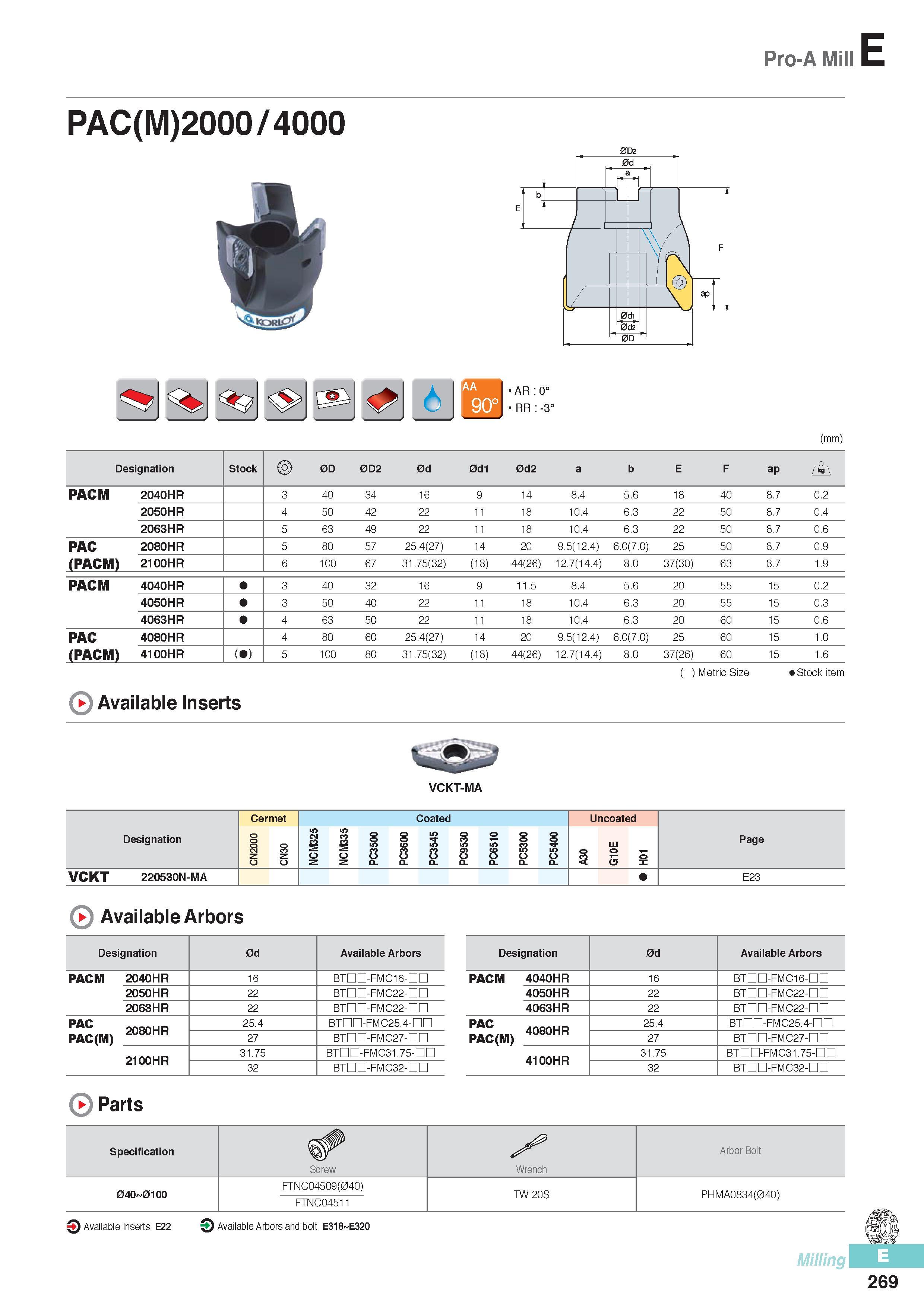

Pro-A Mill E PAC(M)2000 /4000 _0 0d 0D H AR:0° RR -3° (mm) Designation Stock (2) 0D 0D2 0d 0d1 0d2 a b E F ap f+\ PACM 2040HR 3 40 34 16 9 14 8.4 5.6 18 40 8.7 0.2 2050HR 4 50 42 22 11 18 10.4 6.3 22 50 8.7 0.4 2063HR 5 63 49 22 11 18 10.4 6.3 22 50 8.7 0.6 PAC 2080HR 5 80 57 25.4(27) 14 20 9.5(12.4) 6.0(7.0) 25 50 8.7 0.9 (PACM) 2100HR 6 100 67 31.75(32) (18) 44(26) 12.7(14.4) 8.0 37(30) 63 8.7 1.9 PACM 4040HR 3 40 32 16 9 11.5 8.4 5.6 20 55 15 0.2 4050HR 3 50 40 22 11 18 10.4 6.3 20 55 15 0.3 4063HR 4 63 50 22 11 18 10.4 6.3 20 60 15 0.6 PAC 4080HR 4 80 60 25.4(27) 14 20 9.5(12.4) 6.0(7.0) 25 60 15 1.0 (PACM) 4100HR ( ) 5 100 80 31.75(32) (18) 44(26) 12.7(14.4) 8.0 37(26) 60 15 1.6 ( ) Metric Size Stock item 0 Available Inserts VCKT-MA Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page VCKT 220530N-MA E23 Available Arbors Designation 0d Available Arbors PACM 2040HR 16 BTHD-FMC16-HD 2050HR 22 BTHD-FMC22-HD 2063HR 22 BTHD-FMC22-HD PAC 2080HR 25.4 BTDD-FMC25.4-nn PAC(M) 27 BTHD-FMC27-HD 2100HR 31.75 BTHD-FMC31.75-HD 32 BTHD-FMC32-HD Designation 0d Available Arbors PACM 4040HR 16 BTHD-FMC16-HD 4050HR 22 BTHD-FMC22-HD 4063HR 22 BTHD-FMC22-HD PAC 4080HR 25.4 BTHO-FMC25.4-HD PAC(M) 27 BTHD-FMC27-HD 4100HR 31.75 BTHD-FMC31.75-HD 32 BTHD-FMC32-HD ( Parts Specification Screw Wrench Arbor Bolt 040 0100 FTNC04509(040) FTNC04511 TW 20S PHMA0834(040) Available Inserts E22 Available Arbors and bolt E318 E320 Milling 269
