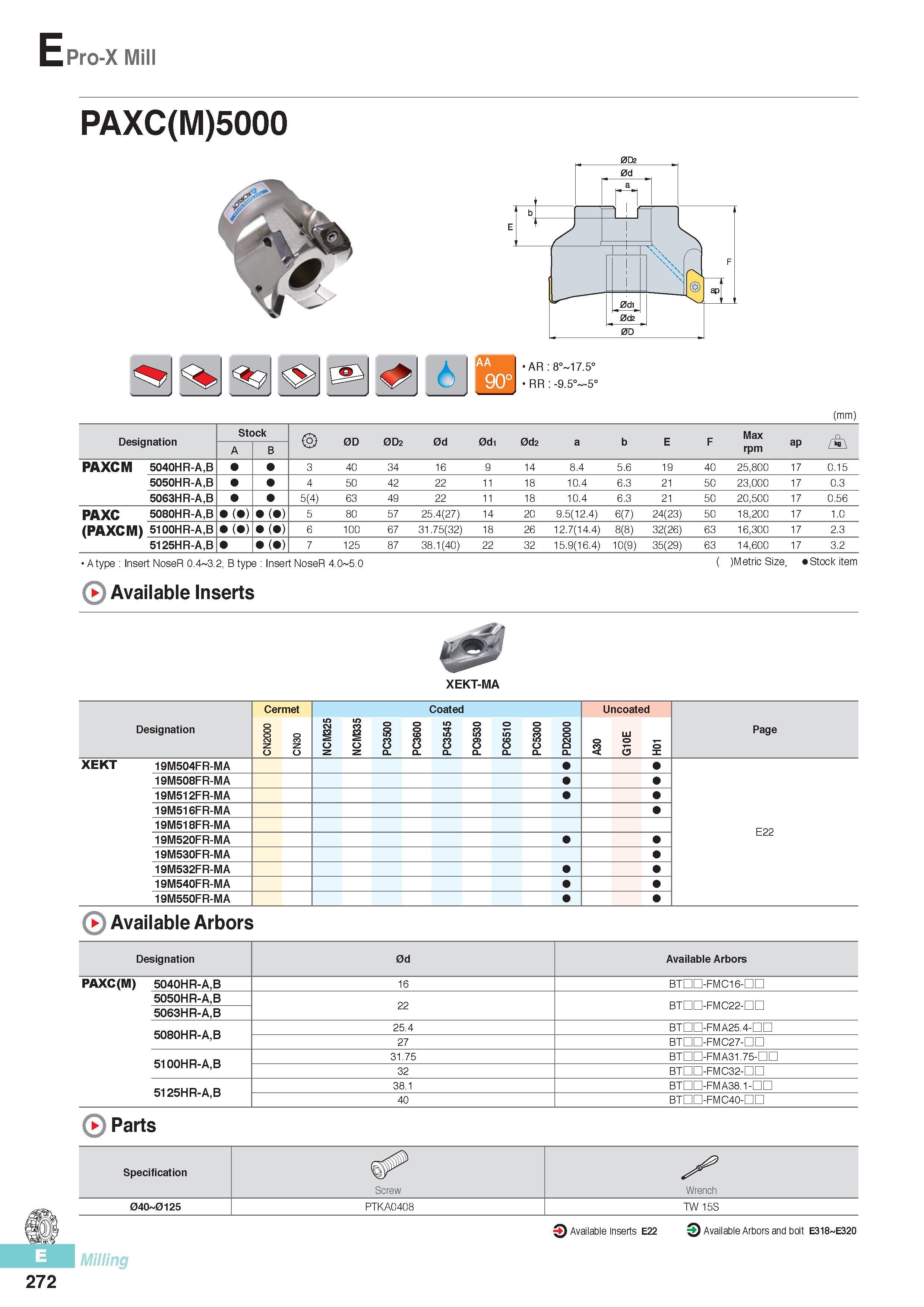

EPro-X Mill PAXC(M)5000 AR 8° 17.5° RR: -9.5° -5° (mm) Designation Stock 0D 0D2 0d 0d1 0d2 a b E F Max ap A A B rpm PAXCM 5040HR-A,B 3 40 34 16 9 14 8.4 5.6 19 40 25,800 17 0.15 5050HR-A,B 4 50 42 22 11 18 10.4 6.3 21 50 23,000 17 0.3 5063HR-A,B 5(4) 63 49 22 11 18 10.4 6.3 21 50 20,500 17 0.56 PAXC 5080HR-A,B ( ) ( ) 5 80 57 25.4(27) 14 20 9.5(12.4) 6(7) 24(23) 50 18,200 17 1.0 (PAXCM) 5100HR-A,B ( ) ( ) 6 100 67 31.75(32) 18 26 12.7(14.4) 8(8) 32(26) 63 16,300 17 2.3 5125HR-A,B ( ) 7 125 87 38.1(40) 22 32 15.9(16.4) 10(9) 35(29) 63 14,600 17 3.2 A type Insert NoseR 0.4 3.2, B type Insert NoseR 4.0 5.0 Available Inserts ( )Metric Size, Stock item XEKT-MA Designation Cermet Coated 0050000 So sr n t- 5655530 C35 C36 C35 C95 C65 C53 D20 PPPPPPP Uncoated Page XEKT 19M504FR-MA 19M508FR-MA 19M512FR-MA 19M516FR-MA 19M518FR-MA 19M520FR-MA 19M530FR-MA 19M532FR-MA 19M540FR-MA 19M550FR-MA Available Arbors Designation 0d Available Arbors PAXC(M) 5040HR-A,B 16 BTHO-FMC16-HD 5050HR-A,B 22 BTDD-FMC22-DC 5063HR-A,B 5080HR-A,B 25.4 BTHO-FMA25.4-HD 27 BTHO-FMC27-HD 5100HR-A,B 31.75 BTHO-FMA31.75-HD 32 BTHO-FMC32-HD 5125HR-A,B 38.1 BTHO-FMA38.1-HD 40 BTHO-FMC40-HD Parts Specification Screw Wrench 040 0125 PTKA0408 TW 15S Milling 272 Available Inserts E22 Available Arbors and bolt E318 E320
