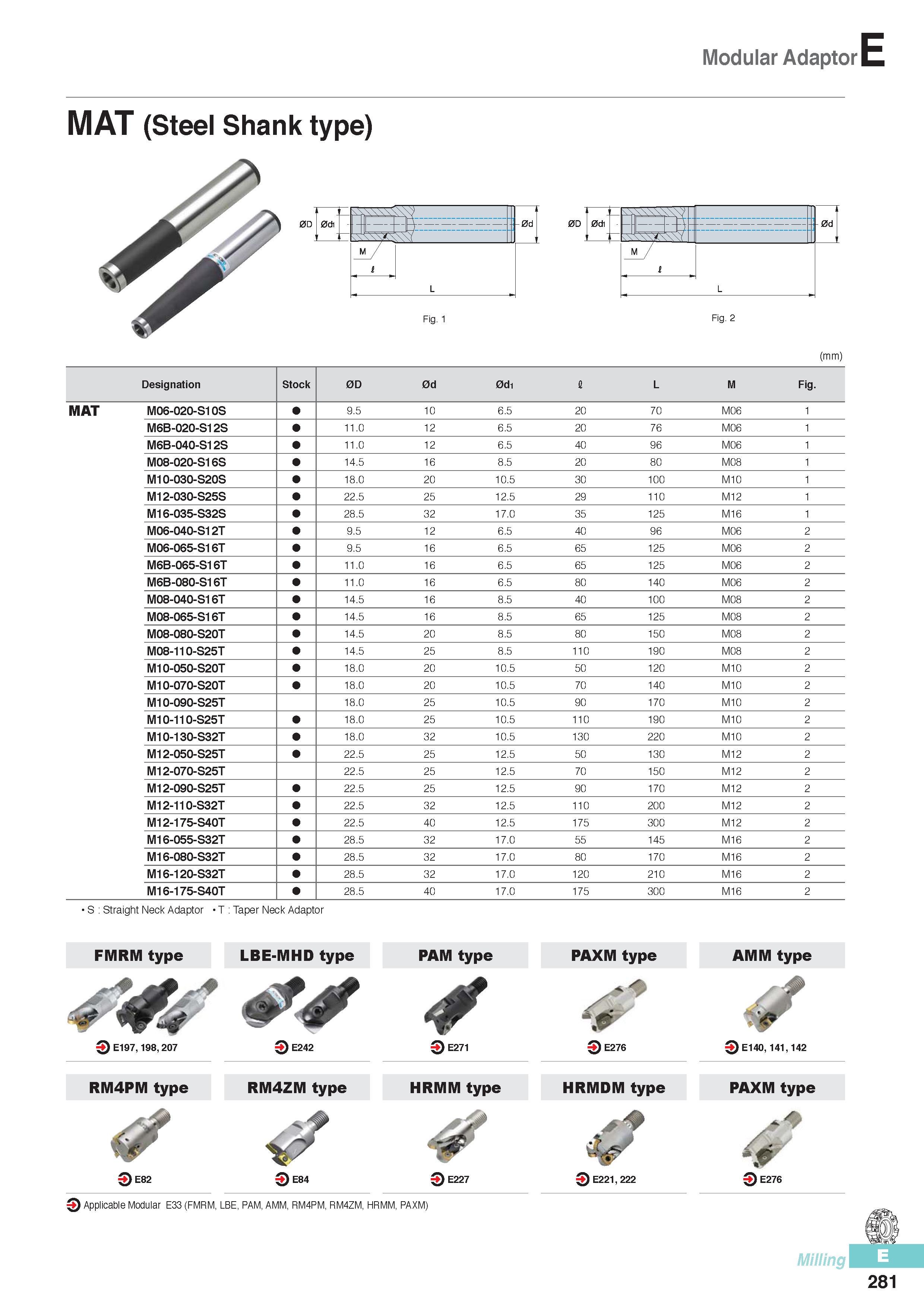

Modular Adaptor MAT (Steel Shank type) l -0d 0di i M / I L Fig. 1 Fig. 2 (mm) Designation Stock 0D 0d 0d1 I L M Fig. MAT M06-020-S10S 9.5 10 6.5 20 70 M06 1 M6B-020-S12S 11.0 12 6.5 20 76 M06 1 M6B-040-S12S 11.0 12 6.5 40 96 M06 1 M08-020-S16S 14.5 16 8.5 20 80 M08 1 M10-030-S20S 18.0 20 10.5 30 100 M10 1 M12-030-S25S 22.5 25 12.5 29 110 M12 1 M16-035-S32S 28.5 32 17.0 35 125 M16 1 M06-040-S12T 9.5 12 6.5 40 96 M06 2 M06-065-S16T 9.5 16 6.5 65 125 M06 2 M6B-065-S16T 11.0 16 6.5 65 125 M06 2 M6B-080-S16T 11.0 16 6.5 80 140 M06 2 M08-040-S16T 14.5 16 8.5 40 100 M08 2 M08-065-S16T 14.5 16 8.5 65 125 M08 2 M08-080-S20T 14.5 20 8.5 80 150 M08 2 M08-110-S25T 14.5 25 8.5 110 190 M08 2 M10-050-S20T 18.0 20 10.5 50 120 M10 2 M10-070-S20T 18.0 20 10.5 70 140 M10 2 M10-090-S25T 18.0 25 10.5 90 170 M10 2 M10-110-S25T 18.0 25 10.5 110 190 M10 2 M10-130-S32T 18.0 32 10.5 130 220 M10 2 M12-050-S25T 22.5 25 12.5 50 130 M12 2 M12-070-S25T 22.5 25 12.5 70 150 M12 2 M12-090-S25T 22.5 25 12.5 90 170 M12 2 M12-110-S32T 22.5 32 12.5 110 200 M12 2 M12-175-S40T 22.5 40 12.5 175 300 M12 2 M16-055-S32T 28.5 32 17.0 55 145 M16 2 M16-080-S32T 28.5 32 17.0 80 170 M16 2 M16-120-S32T 28.5 32 17.0 120 210 M16 2 M16-175-S40T 28.5 40 17.0 175 300 M16 2 S Straight Neck Adaptor T Taper Neck Adaptor FMRM type LBE-MHD type PAM type PAXM type AMM type Q E197,198, 207 OE242 Qe271 0E276 RM4PM type RM4ZM type HRMM type OE82 OE84 O E227 0E221, 222 Applicable Modular E33 (FMRM, LBE, PAM, AMM, RM4PM, RM4ZM, HRMM, PAXM) QE140, 141, 142 HRMDM type PAXM type 0E276 Milling 281
