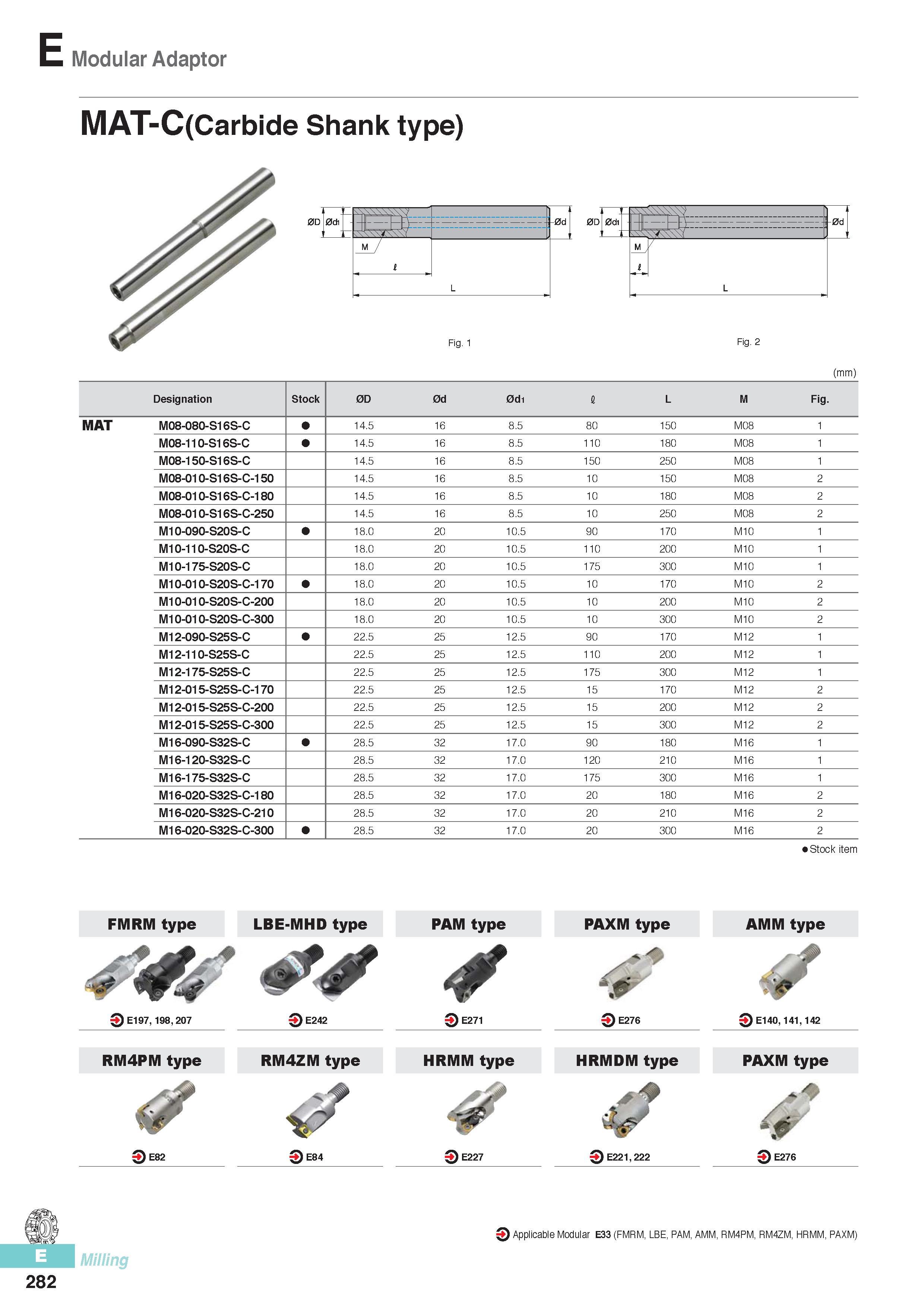

Modular Adaptor MAT-C(Carbide Shank type) 0d 0D 0di M I / L Fig. 1 Fig. 2 (mm) Designation Stock 0D 0d 0d1 I L M Fig. MAT M08-080-S16S-C 14.5 16 8.5 80 150 M08 1 M08-110-S16S-C 14.5 16 8.5 110 180 M08 1 M08-150-S16S-C 14.5 16 8.5 150 250 M08 1 M08-010-S16S-C-150 14.5 16 8.5 10 150 M08 2 M08-010-S16S-C-180 14.5 16 8.5 10 180 M08 2 M08-010-S16S-C-250 14.5 16 8.5 10 250 M08 2 M10-090-S20S-C 18.0 20 10.5 90 170 M10 1 M10-110-S20S-C 18.0 20 10.5 110 200 M10 1 M10-175-S20S-C 18.0 20 10.5 175 300 M10 1 M10-010-S20S-C-170 18.0 20 10.5 10 170 M10 2 M10-010-S20S-C-200 18.0 20 10.5 10 200 M10 2 M10-010-S20S-C-300 18.0 20 10.5 10 300 M10 2 M12-090-S25S-C 22.5 25 12.5 90 170 M12 1 M12-110-S25S-C 22.5 25 12.5 110 200 M12 1 M12-175-S25S-C 22.5 25 12.5 175 300 M12 1 M12-015-S25S-C-170 22.5 25 12.5 15 170 M12 2 M12-015-S25S-C-200 22.5 25 12.5 15 200 M12 2 M12-015-S25S-C-300 22.5 25 12.5 15 300 M12 2 M16-090-S32S-C 28.5 32 17.0 90 180 M16 1 M16-120-S32S-C 28.5 32 17.0 120 210 M16 1 M16-175-S32S-C 28.5 32 17.0 175 300 M16 1 M16-020-S32S-C-180 28.5 32 17.0 20 180 M16 2 M16-020-S32S-C-210 28.5 32 17.0 20 210 M16 2 M16-020-S32S-C-300 28.5 32 17.0 20 300 M16 2 Stock item FMRM type LBE-MHD type PAM type PAXM type AMM type .y 3 E197, 198, 207 OE242 OE271 O E276 OE82 Qe84 .-3 O E227 Q E140, 141, 142 RM4PM type RM4ZM type HRMM type HRMDM type PAXM type Q E221,222 O E276 Milling 282 Q Applicable Modular E33 (FMRM, LBE, PAM, AMM, RM4PM, RM4ZM, HRMM, PAXM)
