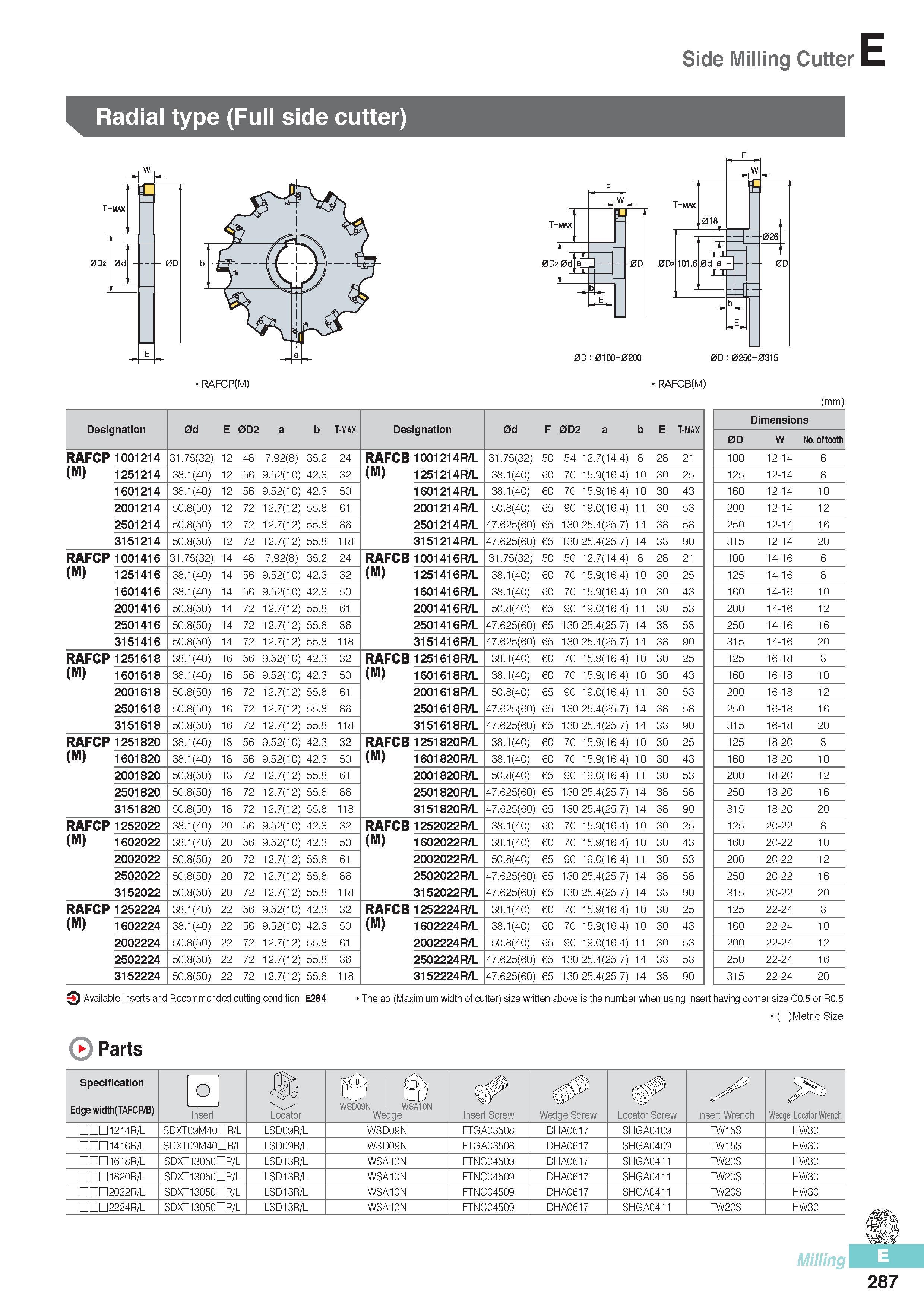

Side Milling Cutter Radial type (Full side cutter) 0D: 0100-0200 0D: 0250-0315 (mm) Designation 0d E 0D2 a b T-MAX Designation 0d F 0D2 a b E T-MAX RAFCP 1001214 31.75(32) 12 48 7.92(8) 35.2 24 RAFCB 1001214R/L 31.75(32) 50 54 12.7(14.4) 8 28 21 (M) 1251214 38.1(40) 12 56 9.52(10) 42.3 32 (M) 1251214R/L 38.1(40) 60 70 15.9(16.4) 10 30 25 1601214 38.1(40) 12 56 9.52(10) 42.3 50 1601214R/L 38.1(40) 60 70 15.9(16.4) 10 30 43 2001214 50.8(50) 12 72 12.7(12) 55.8 61 2001214R/L 50.8(40) 65 90 19.0(16.4) 11 30 53 2501214 50.8(50) 12 72 12.7(12) 55.8 86 2501214R/L 47.625(60) 65 130 25.4(25.7) 14 38 58 3151214 50.8(50) 12 72 12.7(12) 55.8 118 3151214R/L 47.625(60) 65 130 25.4(25.7) 14 38 90 RAFCP 1001416 31.75(32) 14 48 7.92(8) 35.2 24 RAFCB 1001416R/L 31.75(32) 50 50 12.7(14.4) 8 28 21 (M) 1251416 38.1(40) 14 56 9.52(10) 42.3 32 (M) 1251416R/L 38.1(40) 60 70 15.9(16.4) 10 30 25 1601416 38.1(40) 14 56 9.52(10) 42.3 50 1601416R/L 38.1(40) 60 70 15.9(16.4) 10 30 43 2001416 50.8(50) 14 72 12.7(12) 55.8 61 2001416R/L 50.8(40) 65 90 19.0(16.4) 11 30 53 2501416 50.8(50) 14 72 12.7(12) 55.8 86 2501416R/L 47.625(60) 65 130 25.4(25.7) 14 38 58 3151416 50.8(50) 14 72 12.7(12) 55.8 118 3151416R/L 47.625(60) 65 130 25.4(25.7) 14 38 90 RAFCP 1251618 38.1(40) 16 56 9.52(10) 42.3 32 RAFCB 1251618R/L 38.1(40) 60 70 15.9(16.4) 10 30 25 (M) 1601618 38.1(40) 16 56 9.52(10) 42.3 50 (M) 1601618R/L 38.1(40) 60 70 15.9(16.4) 10 30 43 2001618 50.8(50) 16 72 12.7(12) 55.8 61 2001618R/L 50.8(40) 65 90 19.0(16.4) 11 30 53 2501618 50.8(50) 16 72 12.7(12) 55.8 86 2501618R/L 47.625(60) 65 130 25.4(25.7) 14 38 58 3151618 50.8(50) 16 72 12.7(12) 55.8 118 3151618R/L 5 6 0) (6 5( 2 .6 7. 130 25.4(25.7) 14 38 90 RAFCP 1251820 38.1(40) 18 56 9.52(10) 42.3 32 RAFCB 1251820R/L 38.1(40) 60 70 15.9(16.4) 10 30 25 (M) 1601820 38.1(40) 18 56 9.52(10) 42.3 50 (M) 1601820R/L 38.1(40) 60 70 15.9(16.4) 10 30 43 2001820 50.8(50) 18 72 12.7(12) 55.8 61 2001820R/L 50.8(40) 65 90 19.0(16.4) 11 30 53 2501820 50.8(50) 18 72 12.7(12) 55.8 86 2501820R/L 47.625(60) 65 130 25.4(25.7) 14 38 58 3151820 50.8(50) 18 72 12.7(12) 55.8 118 3151820R/L 47.625(60) 65 130 25.4(25.7) 14 38 90 RAFCP 1252022 38.1(40) 20 56 9.52(10) 42.3 32 RAFCB 1252022R/L 38.1(40) 60 70 15.9(16.4) 10 30 25 (M) 1602022 38.1(40) 20 56 9.52(10) 42.3 50 (M) 1602022R/L 38.1(40) 60 70 15.9(16.4) 10 30 43 2002022 50.8(50) 20 72 12.7(12) 55.8 61 2002022R/L 50.8(40) 65 90 19.0(16.4) 11 30 53 2502022 50.8(50) 20 72 12.7(12) 55.8 86 2502022R/L 47.625(60) 65 130 25.4(25.7) 14 38 58 3152022 50.8(50) 20 72 12.7(12) 55.8 118 3152022R/L 47.625(60) 65 130 25.4(25.7) 14 38 90 RAFCP 1252224 38.1(40) 22 56 9.52(10) 42.3 32 RAFCB 1252224R/L 38.1(40) 60 70 15.9(16.4) 10 30 25 (M) 1602224 38.1(40) 22 56 9.52(10) 42.3 50 (M) 1602224R/L 38.1(40) 60 70 15.9(16.4) 10 30 43 2002224 50.8(50) 22 72 12.7(12) 55.8 61 2002224R/L 50.8(40) 65 90 19.0(16.4) 11 30 53 2502224 50.8(50) 22 72 12.7(12) 55.8 86 2502224R/L 47.625(60) 65 130 25.4(25.7) 14 38 58 3152224 50.8(50) 22 72 12.7(12) 55.8 118 3152224R/L 47.625(60) 65 130 25.4(25.7) 14 38 90 Dimensions 0D W No. of tooth 100 12-14 6 125 12-14 8 160 12-14 10 200 12-14 12 250 12-14 16 315 12-14 20 100 14-16 6 125 14-16 8 160 14-16 10 200 14-16 12 250 14-16 16 315 14-16 20 125 16-18 8 160 16-18 10 200 16-18 12 250 16-18 16 315 16-18 20 125 18-20 8 160 18-20 10 200 18-20 12 250 18-20 16 315 18-20 20 125 20-22 8 160 20-22 10 200 20-22 12 250 20-22 16 315 20-22 20 125 22-24 8 160 22-24 10 200 22-24 12 250 22-24 16 315 22-24 20 Available Inserts and Recommended cutting condition E284 The ap (Maximium width of cutter) size written aboveis the number when using insert having corner size C0.5 or R0.5 ( )Metric Size Parts Specification Edge width(TAFCP/B) O Locator 0 WSD09N WSA10N Wedge Insert Screw Wedge Screw Locator Screw Insert Wrench Wedge, Locator Wrench Insert 1214R/L SDXT09M40DR/L LSD09R/L WSD09N FTGA03508 DHA0617 SHGA0409 TW15S HW30 1416R/L SDXT09M40DR/L LSD09R/L WSD09N FTGA03508 DHA0617 SHGA0409 TW15S HW30 1618R/L SDXT13050DR/L LSD13R/L WSA10N FTNC04509 DHA0617 SHGA0411 TW20S HW30 1820R/L SDXT13050DR/L LSD13R/L WSA10N FTNC04509 DHA0617 SHGA0411 TW20S HW30 2022R/L SDXT13050DR/L LSD13R/L WSA10N FTNC04509 DHA0617 SHGA0411 TW20S HW30 2224R/L SDXT13050DR/L LSD13R/L WSA10N FTNC04509 DHA0617 SHGA0411 TW20S HW30 Milling 287
