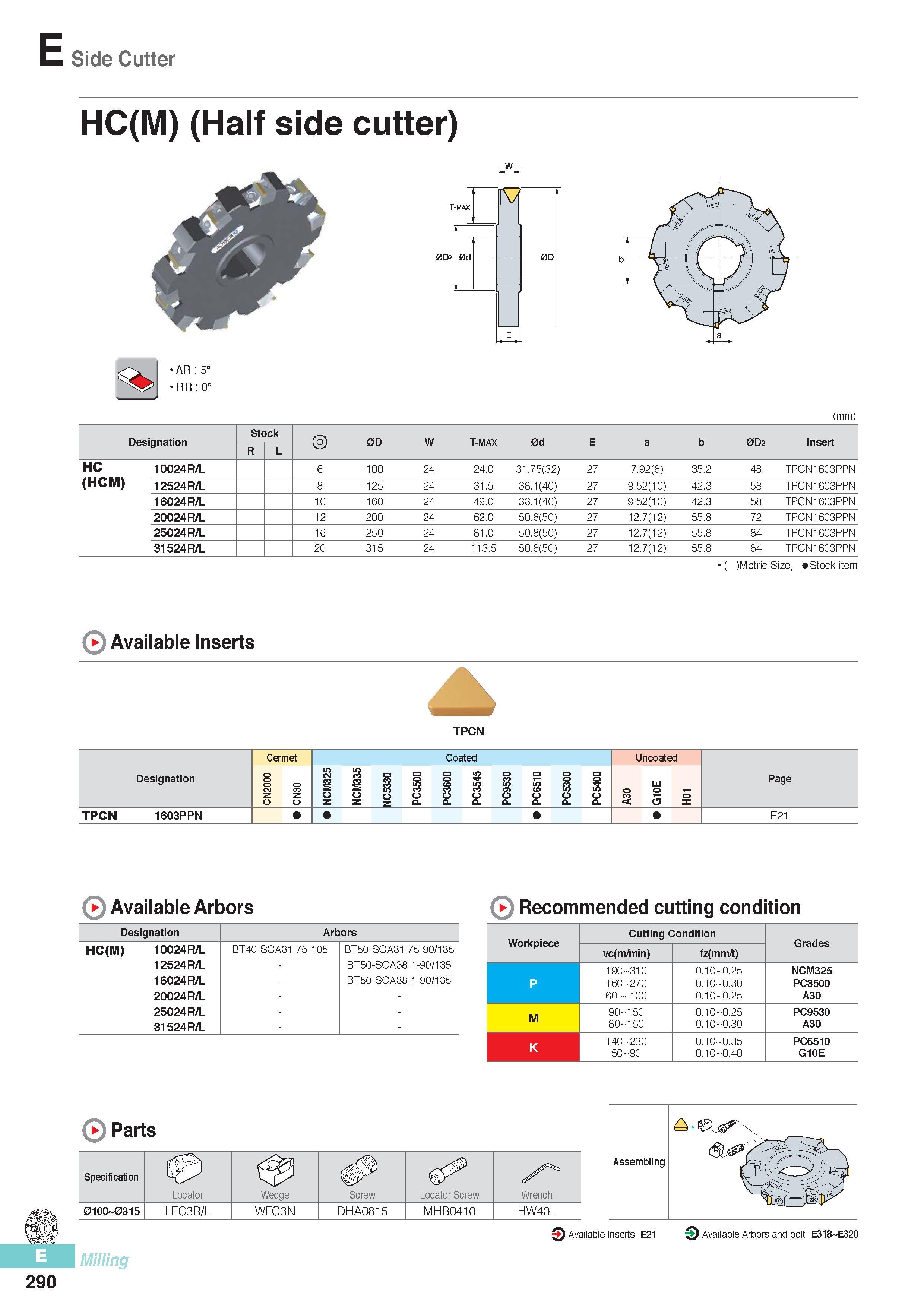

Side Cutter HC(M) (Half side cutter) AR 5° RR 0° r 1 -MAX 0D2 0d - 0D E (mm) Designation Stock 0D W T-MAX 0d E a b 0D2 Insert R L HC 10024R/L 6 100 24 24.0 31.75(32) 27 7.92(8) 35.2 48 TPCN1603PPN (HCM) 12524R/L 8 125 24 31.5 38.1(40) 27 9.52(10) 42.3 58 TPCN1603PPN 16024R/L 10 160 24 49.0 38.1(40) 27 9.52(10) 42.3 58 TPCN1603PPN 20024R/L 12 200 24 62.0 50.8(50) 27 12.7(12) 55.8 72 TPCN1603PPN 25024R/L 16 250 24 81.0 50.8(50) 27 12.7(12) 55.8 84 TPCN1603PPN 31524R/L 20 315 24 113.5 50.8(50) 27 12.7(12) 55.8 84 TPCN1603PPN ( )MetricSize, Stock item 0 Available Inserts TPCN Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 NC5330 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page TPCN 1603PPN E21 0 Available Arbors Designation Arbors HC(M) 10024R/L BT40-SCA31.75-105 BT50-SCA31.75-90/135 12524R/L - BT50-SCA38.1-90/135 16024R/L - BT50-SCA38.1-90/135 20024R/L 25024R/L 31524R/L 0 Recommended cutting condition Workpiece Cutting Condition Grades vc(m/min) fz(mm/t) P 190 310 160 270 60 100 0.10 0.25 0.10 0.30 0.10 0.25 NCM325 PC3500 A30 M 55 Y 7 98 P P 32 o cn PC9530 A30 K 140 230 50 90 l i 43 o cn PC6510 G10E 290 0 Parts Specification Locator Wedge Screw Locator Screw Wrench 0100 0315 LFC3R/L WFC3N DHA0815 MHB0410 HW40L Milling Assembling Available Inserts E21 Available Arborsandbolt E318 E320
