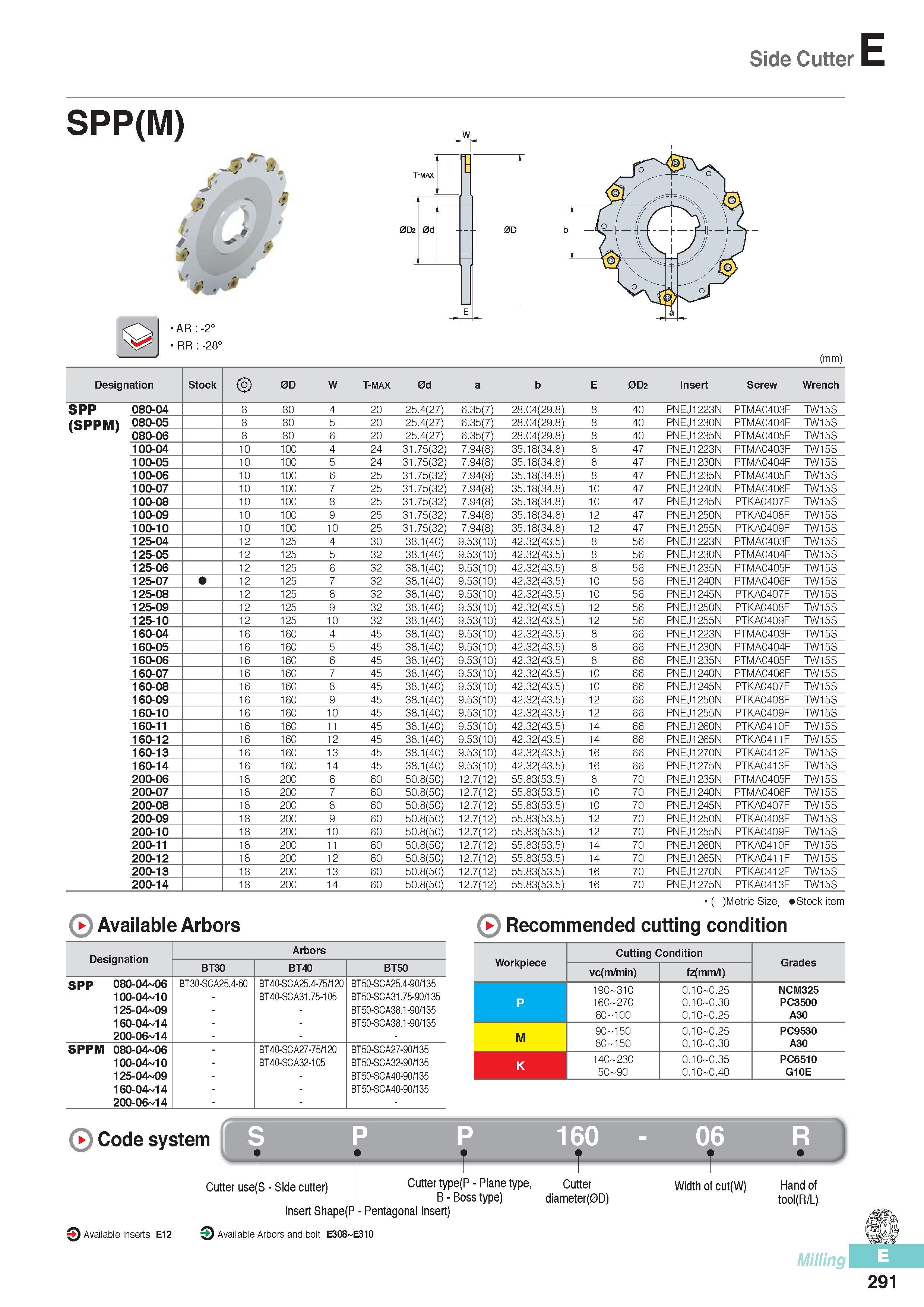

678 Каталог KORLOY 2016 Металлорежущий инструмент и станочная оснастка ENG Стр.E291

Каталог KORLOY 2016 Инструмент и оснастка Стр. E291 0678 ENG Lab2u

Side Cutter SPP(M) AR:-2° RR -28° (mm) Designation Stock 0D W T-MAX 0d a b E 0D2 Insert Screw Wrench SPP 080-04 8 80 4 20 25.4(27) 6.35(7) 28.04(29.8) 8 40 PNEJ1223N PTMA0403F TW15S (SPPM) 080-05 8 80 5 20 25.4(27) 6.35(7) 28.04(29.8) 8 40 PNEJ1230N PTMA0404F TW15S 080-06 8 80 6 20 25.4(27) 6.35(7) 28.04(29.8) 8 40 PNEJ1235N PTMA0405F TW15S 100-04 10 100 4 24 31.75(32) 7.94(8) 35.18(34.8) 8 47 PNEJ1223N PTMA0403F TW15S 100-05 10 100 5 24 31.75(32) 7.94(8) 35.18(34.8) 8 47 PNEJ1230N PTMA0404F TW15S 100-06 10 100 6 25 31.75(32) 7.94(8) 35.18(34.8) 8 47 PNEJ1235N PTMA0405F TW15S 100-07 10 100 7 25 31.75(32) 7.94(8) 35.18(34.8) 10 47 PNEJ1240N PTMA0406F TW15S 100-08 10 100 8 25 31.75(32) 7.94(8) 35.18(34.8) 10 47 PNEJ1245N PTKA0407F TW15S 100-09 10 100 9 25 31.75(32) 7.94(8) 35.18(34.8) 12 47 PNEJ1250N PTKA0408F TW15S 100-10 10 100 10 25 31.75(32) 7.94(8) 35.18(34.8) 12 47 PNEJ1255N PTKA0409F TW15S 125-04 12 125 4 30 38.1(40) 9.53(10) 42.32(43.5) 8 56 PNEJ1223N PTMA0403F TW15S 125-05 12 125 5 32 38.1(40) 9.53(10) 42.32(43.5) 8 56 PNEJ1230N PTMA0404F TW15S 125-06 12 125 6 32 38.1(40) 9.53(10) 42.32(43.5) 8 56 PNEJ1235N PTMA0405F TW15S 125-07 12 125 7 32 38.1(40) 9.53(10) 42.32(43.5) 10 56 PNEJ1240N PTMA0406F TW15S 125-08 12 125 8 32 38.1(40) 9.53(10) 42.32(43.5) 10 56 PNEJ1245N PTKA0407F TW15S 125-09 12 125 9 32 38.1(40) 9.53(10) 42.32(43.5) 12 56 PNEJ1250N PTKA0408F TW15S 125-10 12 125 10 32 38.1(40) 9.53(10) 42.32(43.5) 12 56 PNEJ1255N PTKA0409F TW15S 160-04 16 160 4 45 38.1(40) 9.53(10) 42.32(43.5) 8 66 PNEJ1223N PTMA0403F TW15S 160-05 16 160 5 45 38.1(40) 9.53(10) 42.32(43.5) 8 66 PNEJ1230N PTMA0404F TW15S 160-06 16 160 6 45 38.1(40) 9.53(10) 42.32(43.5) 8 66 PNEJ1235N PTMA0405F TW15S 160-07 16 160 7 45 38.1(40) 9.53(10) 42.32(43.5) 10 66 PNEJ1240N PTMA0406F TW15S 160-08 16 160 8 45 38.1(40) 9.53(10) 42.32(43.5) 10 66 PNEJ1245N PTKA0407F TW15S 160-09 16 160 9 45 38.1(40) 9.53(10) 42.32(43.5) 12 66 PNEJ1250N PTKA0408F TW15S 160-10 16 160 10 45 38.1(40) 9.53(10) 42.32(43.5) 12 66 PNEJ1255N PTKA0409F TW15S 160-11 16 160 11 45 38.1(40) 9.53(10) 42.32(43.5) 14 66 PNEJ1260N PTKA0410F TW15S 160-12 16 160 12 45 38.1(40) 9.53(10) 42.32(43.5) 14 66 PNEJ1265N PTKA0411F TW15S 160-13 16 160 13 45 38.1(40) 9.53(10) 42.32(43.5) 16 66 PNEJ1270N PTKA0412F TW15S 160-14 16 160 14 45 38.1(40) 9.53(10) 42.32(43.5) 16 66 PNEJ1275N PTKA0413F TW15S 200-06 18 200 6 60 50.8(50) 12.7(12) 55.83(53.5) 8 70 PNEJ1235N PTMA0405F TW15S 200-07 18 200 7 60 50.8(50) 12.7(12) 55.83(53.5) 10 70 PNEJ1240N PTMA0406F TW15S 200-08 18 200 8 60 50.8(50) 12.7(12) 55.83(53.5) 10 70 PNEJ1245N PTKA0407F TW15S 200-09 18 200 9 60 50.8(50) 12.7(12) 55.83(53.5) 12 70 PNEJ1250N PTKA0408F TW15S 200-10 18 200 10 60 50.8(50) 12.7(12) 55.83(53.5) 12 70 PNEJ1255N PTKA0409F TW15S 200-11 18 200 11 60 50.8(50) 12.7(12) 55.83(53.5) 14 70 PNEJ1260N PTKA0410F TW15S 200-12 18 200 12 60 50.8(50) 12.7(12) 55.83(53.5) 14 70 PNEJ1265N PTKA0411F TW15S 200-13 18 200 13 60 50.8(50) 12.7(12) 55.83(53.5) 16 70 PNEJ1270N PTKA0412F TW15S 200-14 18 200 14 60 50.8(50) 12.7(12) 55.83(53.5) 16 70 PNEJ1275N PTKA0413F TW15S ( )MetricSize, Stock item Recommended cutting condition Arbors BT30 BT40 BT50 SPP 080-04 06 100-04 10 125-04 09 160-04 14 200-06 14 BT30-SCA25.4-60 BT40-SCA25.4-75/120 BT40-SCA31.75-105 BT50-SCA25.4-90/135 BT50-SCA31.75-90/135 BT50-SCA38.1-90/135 BT50-SCA38.1-90/135 SPPM 080-04 06 100-04 10 125-04 09 160-04 14 200-06 14 BT40-SCA27-75/120 BT40-SCA32-105 BT50-SCA27-90/135 BT50-SCA32-90/135 BT50-SCA40-90/135 BT50-SCA40-90/135 Workpiece Cutting Condition Grades vc(m/min) fz(mm/t) 190 310 0.10 0.25 NCM325 P 160 270 0.10 0.30 PC3500 60 100 0.10 0.25 A30 M 90 150 0.10 0.25 PC9530 80 150 0.10 0.30 A30 K 140 230 0.10 0.35 PC6510 5 0 1 CD O 0.10 0.40 G10E 3 Code system 160 Cutter use(S - Side cutter) Cutter type(P - Plane type, Cutter B - Boss type) diameter(0D) Insert Shape(P - Pentagonal Insert) Width of cut(W) Hand of tool(R/L) Available Inserts E12 Available Arborsandbolt E308 E310 Milling 291 06
