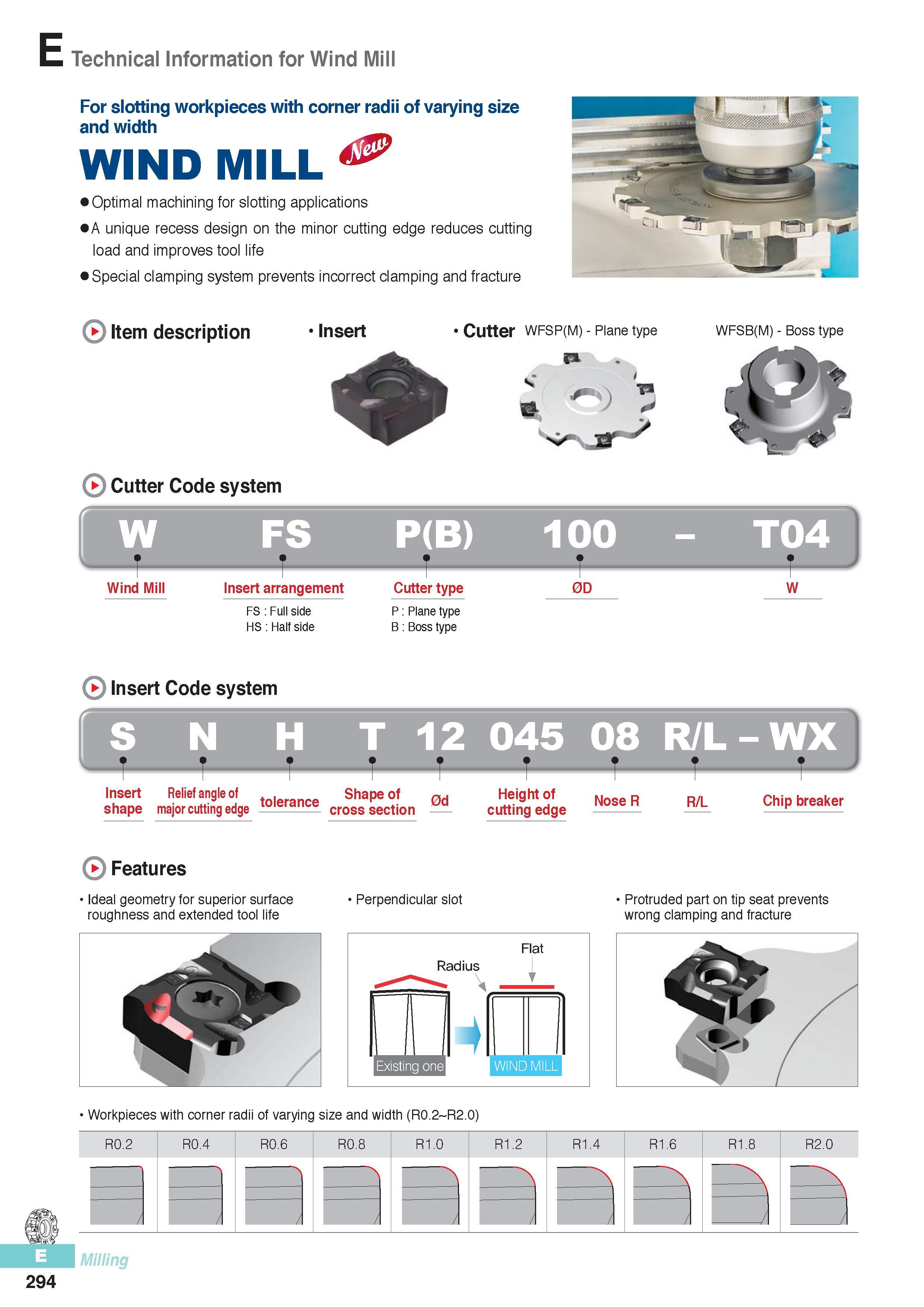

Technical Information for Wind Mill For slotting workpieces with corner radii of varying size and width WIND MILL Optimal machining for slotting applications A unique recess design on the minor cutting edge reduces cutting load and improves tool life Special clamping system prevents incorrect clamping and fracture Cutter Code system W FS P(B) 100 - T04 Wind Mill Insert arrangement FS Full side HS: Half side Cutter type P: Plane type B: Boss type 0D W Insert Code system S N T 12 045 08 R/L-WX Insert shape Relief angle of major cutting edge tolerance Shape of 0d cross section Height of cutting edge Nose R R/L Chip breaker Features Ideal geometryfor superior surface roughness and extended tool life Perpendicular slot Flat Radius 1 1 Existing one V Protruded part on tip seat prevents wrong clamping and fracture Workpieces with corner radii of varying size and width (R0.2 R2.0) R0.2 R0.4 R0.6 R0.8 R1.0 -v "N \ \ N \ X IN A / / / / / / / / R1.2 R1.4 R1.6 R1.8 R2.0 Milling 294
