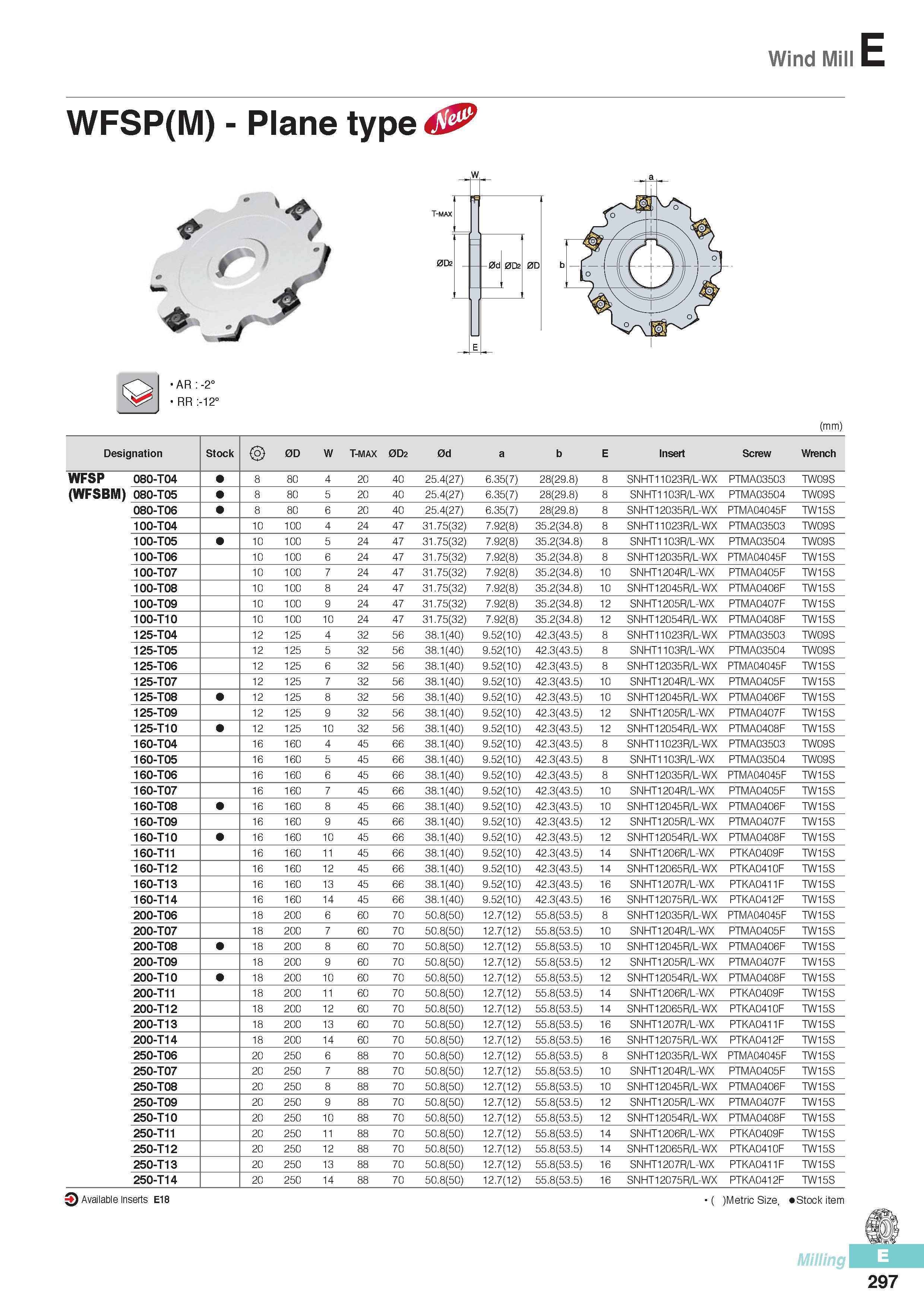

Wind Mill E WFSP(M) - Plane type & AR:-2° RR :-12° (mm) Designation Stock 0D W T-MAX 0D2 0d a b E Insert Screw Wrench WFSP 080-T04 8 80 4 20 40 25.4(27) 6.35(7) 28(29.8) 8 SNHT11023R/L-WX PTMA03503 TW09S (WFSBM) 080-T05 8 80 5 20 40 25.4(27) 6.35(7) 28(29.8) 8 SNHT1103R/L-WX PTMA03504 TW09S 080-T06 8 80 6 20 40 25.4(27) 6.35(7) 28(29.8) 8 SNHT12035R/L-WX PTMA04045F TW15S 100-T04 10 100 4 24 47 31.75(32) 7.92(8) 35.2(34.8) 8 SNHT11023R/L-WX PTMA03503 TW09S 100-T05 10 100 5 24 47 31.75(32) 7.92(8) 35.2(34.8) 8 SNHT1103R/L-WX PTMA03504 TW09S 100-T06 10 100 6 24 47 31.75(32) 7.92(8) 35.2(34.8) 8 SNHT12035R/L-WX PTMA04045F TW15S 100-T07 10 100 7 24 47 31.75(32) 7.92(8) 35.2(34.8) 10 SNHT1204R/L-WX PTMA0405F TW15S 100-T08 10 100 8 24 47 31.75(32) 7.92(8) 35.2(34.8) 10 SNHT12045R/L-WX PTMA0406F TW15S 100-T09 10 100 9 24 47 31.75(32) 7.92(8) 35.2(34.8) 12 SNHT1205R/L-WX PTMA0407F TW15S 100-T10 10 100 10 24 47 31.75(32) 7.92(8) 35.2(34.8) 12 SNHT12054R/L-WX PTMA0408F TW15S 125-T04 12 125 4 32 56 38.1(40) 9.52(10) 42.3(43.5) 8 SNHT11023R/L-WX PTMA03503 TW09S 125-T05 12 125 5 32 56 38.1(40) 9.52(10) 42.3(43.5) 8 SNHT1103R/L-WX PTMA03504 TW09S 125-T06 12 125 6 32 56 38.1(40) 9.52(10) 42.3(43.5) 8 SNHT12035R/L-WX PTMA04045F TW15S 125-T07 12 125 7 32 56 38.1(40) 9.52(10) 42.3(43.5) 10 SNHT1204R/L-WX PTMA0405F TW15S 125-T08 12 125 8 32 56 38.1(40) 9.52(10) 42.3(43.5) 10 SNHT12045R/L-WX PTMA0406F TW15S 125-T09 12 125 9 32 56 38.1(40) 9.52(10) 42.3(43.5) 12 SNHT1205R/L-WX PTMA0407F TW15S 125-T10 12 125 10 32 56 38.1(40) 9.52(10) 42.3(43.5) 12 SNHT12054R/L-WX PTMA0408F TW15S 160-T04 16 160 4 45 66 38.1(40) 9.52(10) 42.3(43.5) 8 SNHT11023R/L-WX PTMA03503 TW09S 160-T05 16 160 5 45 66 38.1(40) 9.52(10) 42.3(43.5) 8 SNHT1103R/L-WX PTMA03504 TW09S 160-T06 16 160 6 45 66 38.1(40) 9.52(10) 42.3(43.5) 8 SNHT12035R/L-WX PTMA04045F TW15S 160-T07 16 160 7 45 66 38.1(40) 9.52(10) 42.3(43.5) 10 SNHT1204R/L-WX PTMA0405F TW15S 160-T08 16 160 8 45 66 38.1(40) 9.52(10) 42.3(43.5) 10 SNHT12045R/L-WX PTMA0406F TW15S 160-T09 16 160 9 45 66 38.1(40) 9.52(10) 42.3(43.5) 12 SNHT1205R/L-WX PTMA0407F TW15S 160-T10 16 160 10 45 66 38.1(40) 9.52(10) 42.3(43.5) 12 SNHT12054R/L-WX PTMA0408F TW15S 160-T11 16 160 11 45 66 38.1(40) 9.52(10) 42.3(43.5) 14 SNHT1206R/L-WX PTKA0409F TW15S 160-T12 16 160 12 45 66 38.1(40) 9.52(10) 42.3(43.5) 14 SNHT12065R/L-WX PTKA0410F TW15S 160-T13 16 160 13 45 66 38.1(40) 9.52(10) 42.3(43.5) 16 SNHT1207R/L-WX PTKA0411F TW15S 160-T14 16 160 14 45 66 38.1(40) 9.52(10) 42.3(43.5) 16 SNHT12075R/L-WX PTKA0412F TW15S 200-T06 18 200 6 60 70 50.8(50) 12.7(12) 55.8(53.5) 8 SNHT12035R/L-WX PTMA04045F TW15S 200-T07 18 200 7 60 70 50.8(50) 12.7(12) 55.8(53.5) 10 SNHT1204R/L-WX PTMA0405F TW15S 200-T08 18 200 8 60 70 50.8(50) 12.7(12) 55.8(53.5) 10 SNHT12045R/L-WX PTMA0406F TW15S 200-T09 18 200 9 60 70 50.8(50) 12.7(12) 55.8(53.5) 12 SNHT1205R/L-WX PTMA0407F TW15S 200-T10 18 200 10 60 70 50.8(50) 12.7(12) 55.8(53.5) 12 SNHT12054R/L-WX PTMA0408F TW15S 200-T11 18 200 11 60 70 50.8(50) 12.7(12) 55.8(53.5) 14 SNHT1206R/L-WX PTKA0409F TW15S 200-T12 18 200 12 60 70 50.8(50) 12.7(12) 55.8(53.5) 14 SNHT12065R/L-WX PTKA0410F TW15S 200-T13 18 200 13 60 70 50.8(50) 12.7(12) 55.8(53.5) 16 SNHT1207R/L-WX PTKA0411F TW15S 200-T14 18 200 14 60 70 50.8(50) 12.7(12) 55.8(53.5) 16 SNHT12075R/L-WX PTKA0412F TW15S 250-T06 20 250 6 88 70 50.8(50) 12.7(12) 55.8(53.5) 8 SNHT12035R/L-WX PTMA04045F TW15S 250-T07 20 250 7 88 70 50.8(50) 12.7(12) 55.8(53.5) 10 SNHT1204R/L-WX PTMA0405F TW15S 250-T08 20 250 8 88 70 50.8(50) 12.7(12) 55.8(53.5) 10 SNHT12045R/L-WX PTMA0406F TW15S 250-T09 20 250 9 88 70 50.8(50) 12.7(12) 55.8(53.5) 12 SNHT1205R/L-WX PTMA0407F TW15S 250-T10 20 250 10 88 70 50.8(50) 12.7(12) 55.8(53.5) 12 SNHT12054R/L-WX PTMA0408F TW15S 250-T11 20 250 11 88 70 50.8(50) 12.7(12) 55.8(53.5) 14 SNHT1206R/L-WX PTKA0409F TW15S 250-T12 20 250 12 88 70 50.8(50) 12.7(12) 55.8(53.5) 14 SNHT12065R/L-WX PTKA0410F TW15S 250-T13 20 250 13 88 70 50.8(50) 12.7(12) 55.8(53.5) 16 SNHT1207R/L-WX PTKA0411F TW15S 250-T14 20 250 14 88 70 50.8(50) 12.7(12) 55.8(53.5) 16 SNHT12075R/L-WX PTKA0412F TW15S Available Inserts E18 ( JMetricSize, Stock item Milling 297
