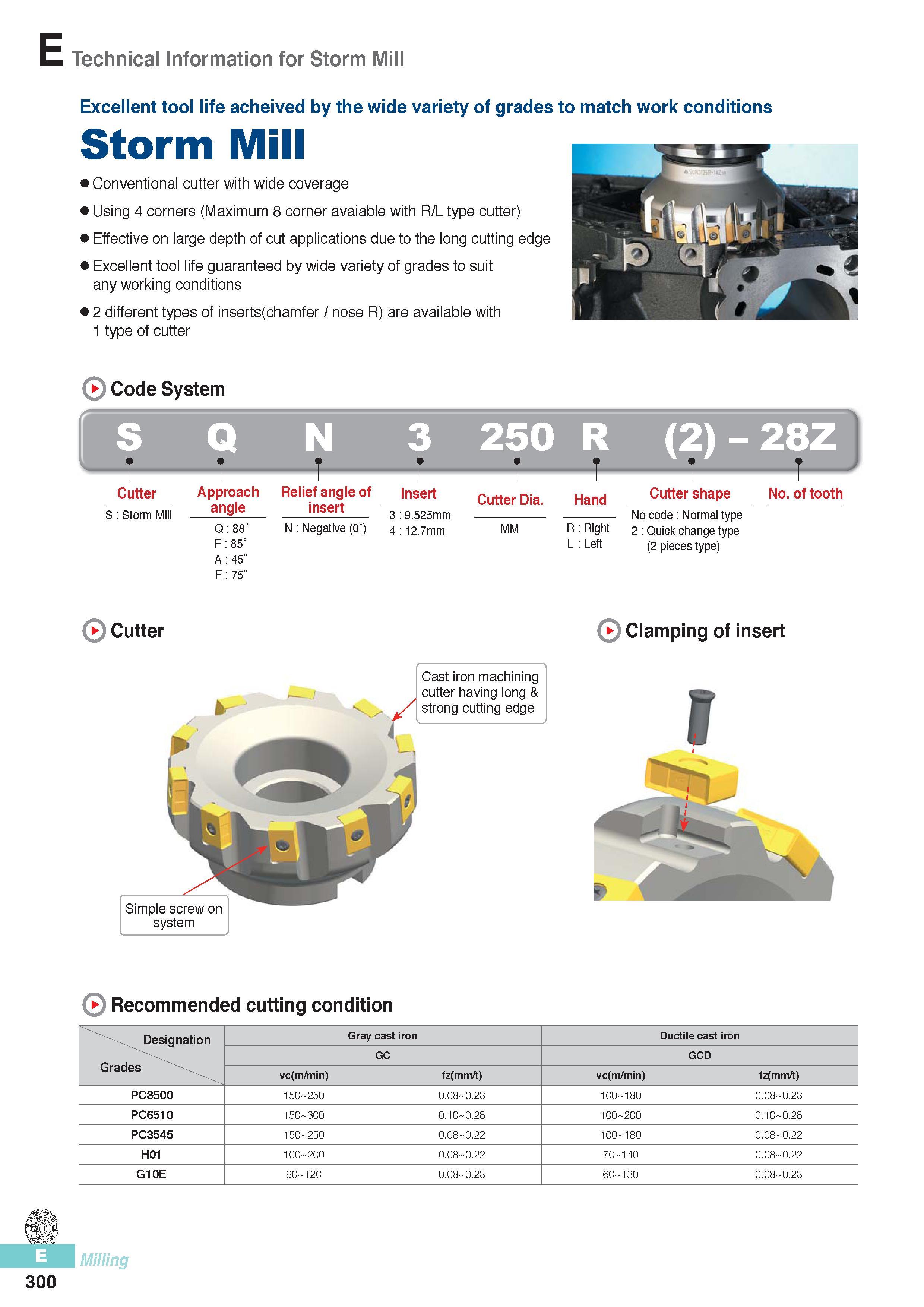

Technical Information for Storm Mill Excellent tool life acheived by the wide variety of grades to match work conditions Storm Mill Conventional cutter with wide coverage Using 4 corners (Maximum 8 corner avaiable with R/L type cutter) Effective on large depth of cut applications due to the long cutting edge Excellent tool life guaranteed by wide variety of grades to suit any working conditions 2 different types of inserts(chamfer / nose R) are available with 1 type of cutter 3 250 R (2) - 28Z Code System Cutter S Storm Mill Approach angle Q: 88° F: 85° A 45° E:75° Relief angle of insert N Negative (0°) Insert 3:9.525mm 4:12.7mm Cutter Dia. MM Hand R: Right L Lett Cutter shape No. of tooth No code Normal type 2 Quick change type (2 pieces type) Cutter Clamping of insert Cast iron machining cutter having long & strong cutting edge 300
