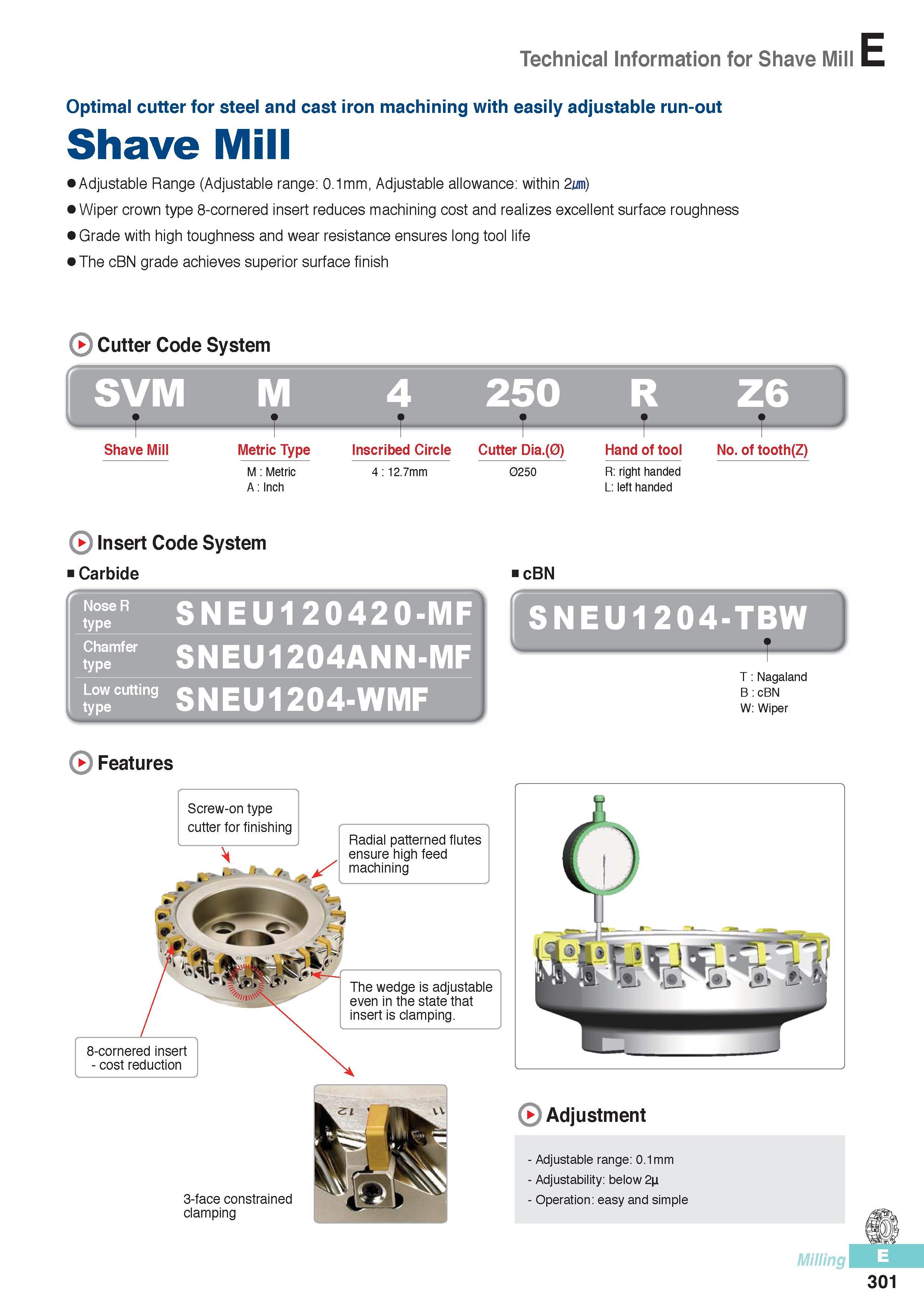

Technical Information for Shave Mill Optimal cutter for steel and cast iron machining with easily adjustable run-out Shave Mill Adjustable Range (Adjustable range: 0.1mm, Adjustable allowance: within 2wn) Wiper crown type 8-cornered insert reduces machining cost and realizes excellent surface roughness Grade with high toughness and wear resistance ensures long tool life The cBN grade achieves superior surface finish Cutter Code System Shave Mill 250 1 Inscribed Circle Cutter Dia.(0) Z6 -I - Hand of tool No. of tooth(Z) R: right handed L: left handed Metric Type M Metric A: Inch 4:12.7mm 0250 Insert Code System Carbide cBN Nose R type SNEU120420-MF Chamfer type SNEU1204ANN-MF Low cutting type SNEU1204-WMF SNEU1204-TBW T: Nagaland B cBN W: Wiper Features Screw-on type cutter for finishing Radial patterned flutes ensure high feed machining The wedge is adjustable even in the state that insert is clamping. 3-face constrained clamping Adjustment Adjustable range: 0.1mm Adjustability: below 2\x Operation: easy and simple Milling 301
