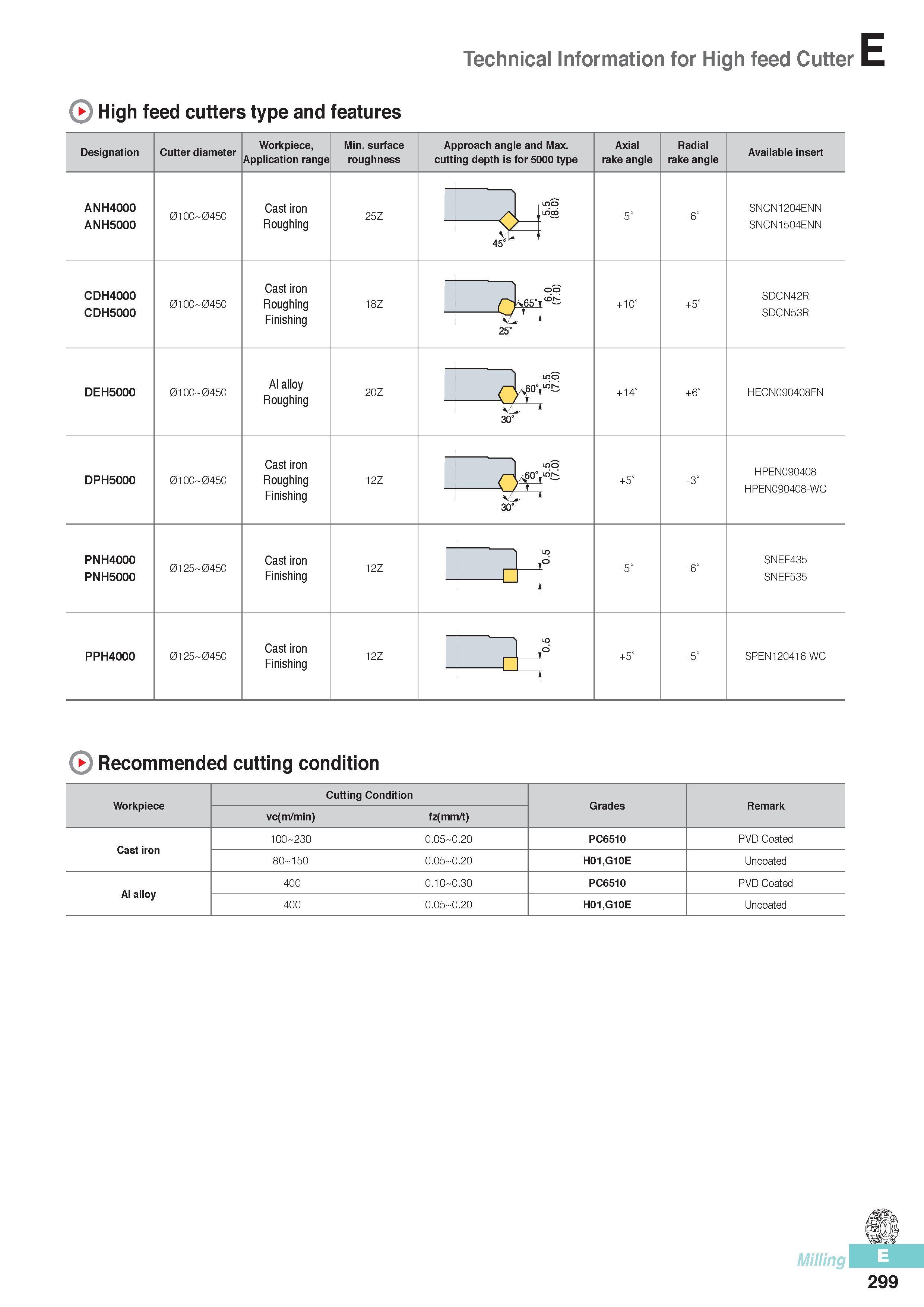

High feed cutters type and features Technical Information for High feed Cutter Designation Cutter diameter Workpiece, Application range Min. surface roughness Approach angle and Max. cutting depth is for 5000 type Axial rake angle Radial rake angle Available insert ANH4000 ANH5000 0100-045C Cast iron Roughing 25Z LOO 1 LOCO H 45 -6' SNCN1204ENN SNCN1504ENN CDH4000 CDH5000 0100 0450 Cast iron Roughing Finishing 18Z vi- 1 25" t-10' +5" SDCN42R SDCN53R DEH5000 0100 0450 Al alloy Roughing 20Z LOO 60 lLri-r f14' VU 30° +6' HECN090408FN DPH5000 0100 0450 Cast iron Roughing Finishing 12Z vu 30s +5 HPEN090408 HPEN090408-WC PNH4000 PNH5000 0125 0450 Cast iron Finishing 12Z SNEF435 SNEF535 PPH4000 0125 0450 Cast iron Finishing 12Z +5 SPEN120416-WC Recommended cutting condition Workpiece Cutting Condition Grades Remark vc(m/min) fz(mm/t) Cast iron 100 230 0.05 0.20 PC6510 PVD Coated 80 150 0.05 0.20 H01,G10E Uncoated Al alloy 400 0.10 0.30 PC6510 PVD Coated 400 0.05 0.20 H01,G10E Uncoated 299
