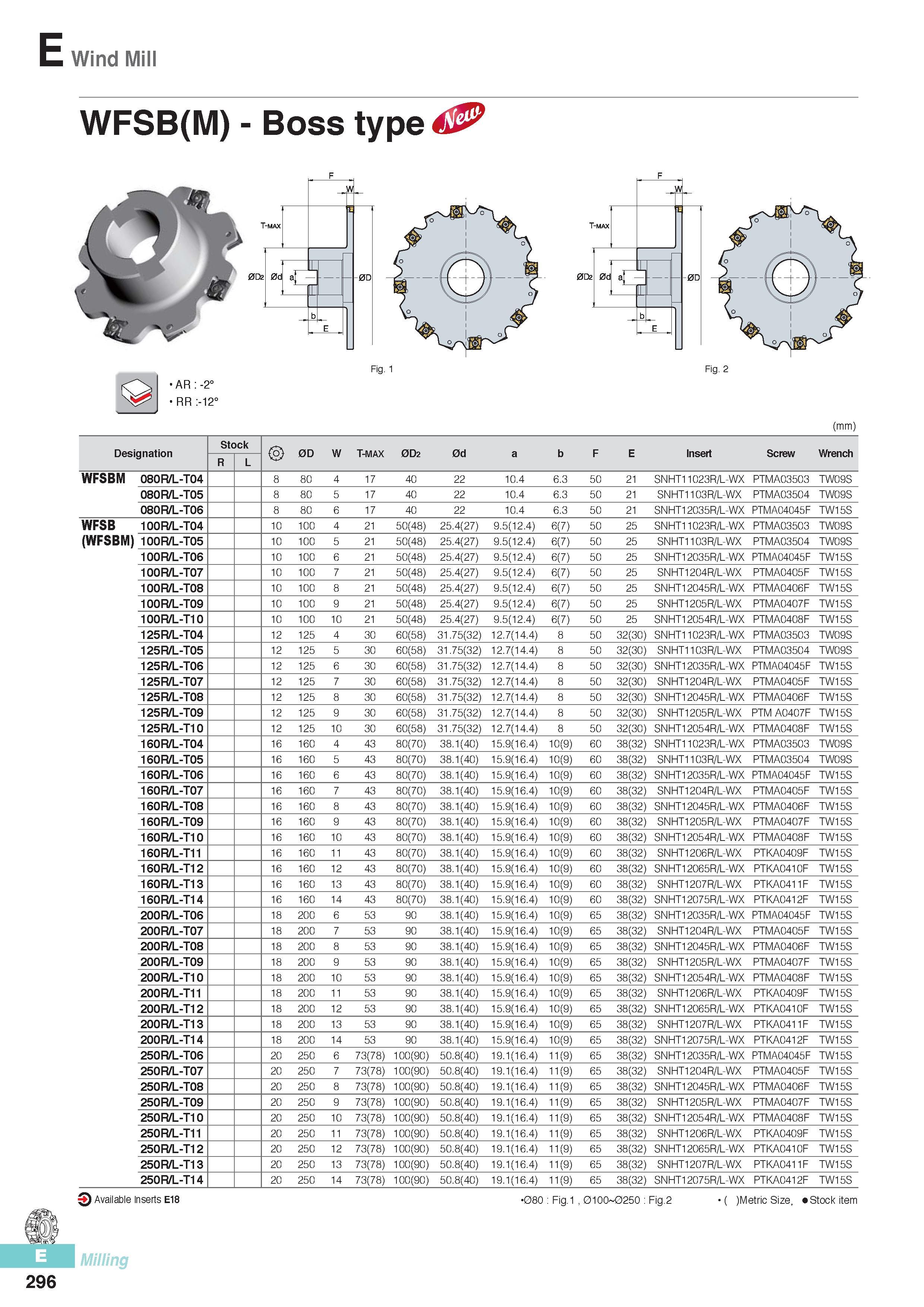

E Wind Mill WFSB(M) - Boss type 0d aE i b E Fig. 1 Fig. 2 AR -2° RR :-12° (mm) Designation Stock 0D W T-MAX 0D2 0d a b F E Insert Screw Wrench R L WFSBM 080R/L-T04 8 80 4 17 40 22 10.4 6.3 50 21 SNHT11023R/L-WX PTMA03503 TW09S 080R/L-T05 8 80 5 17 40 22 10.4 6.3 50 21 SNHT1103R/L-WX PTMA03504 TW09S 080R/L-T06 8 80 6 17 40 22 10.4 6.3 50 21 SNHT12035R/L-WX PTMA04045F TW15S WFSB 100R/L-T04 10 100 4 21 50(48) 25.4(27) 9.5(12.4) 6(7) 50 25 SNHT11023R/L-WX PTMA03503 TW09S (WFSBM) 100R/L-T05 10 100 5 21 50(48) 25.4(27) 9.5(12.4) 6(7) 50 25 SNHT1103R/L-WX PTMA03504 TW09S 100R/L-T06 10 100 6 21 50(48) 25.4(27) 9.5(12.4) 6(7) 50 25 SNHT12035R/L-WX PTMA04045F TW15S 100R/L-T07 10 100 7 21 50(48) 25.4(27) 9.5(12.4) 6(7) 50 25 SNHT1204R/L-WX PTMA0405F TW15S 100R/L-T08 10 100 8 21 50(48) 25.4(27) 9.5(12.4) 6(7) 50 25 SNHT12045R/L-WX PTMA0406F TW15S 100R/L-T09 10 100 9 21 50(48) 25.4(27) 9.5(12.4) 6(7) 50 25 SNHT1205R/L-WX PTMA0407F TW15S 100R/L-T10 10 100 10 21 50(48) 25.4(27) 9.5(12.4) 6(7) 50 25 SNHT12054R/L-WX PTMA0408F TW15S 125R/L-T04 12 125 4 30 60(58) 31.75(32) 12.7(14.4) 8 50 32(30) SNHT11023R/L-WX PTMA03503 TW09S 125R/L-T05 12 125 5 30 60(58) 31.75(32) 12.7(14.4) 8 50 32(30) SNHT1103R/L-WX PTMA03504 TW09S 125R/L-T06 12 125 6 30 60(58) 31.75(32) 12.7(14.4) 8 50 32(30) SNHT12035R/L-WX PTMA04045F TW15S 125R/L-T07 12 125 7 30 60(58) 31.75(32) 12.7(14.4) 8 50 32(30) SNHT1204R/L-WX PTMA0405F TW15S 125R/L-T08 12 125 8 30 60(58) 31.75(32) 12.7(14.4) 8 50 32(30) SNHT12045R/L-WX PTMA0406F TW15S 125R/L-T09 12 125 9 30 60(58) 31.75(32) 12.7(14.4) 8 50 32(30) SNHT1205R/L-WX PTM A0407F TW15S 125R/L-T10 12 125 10 30 60(58) 31.75(32) 12.7(14.4) 8 50 32(30) SNHT12054R/L-WX PTMA0408F TW15S 160R/L-T04 16 160 4 43 80(70) 38.1(40) 15.9(16.4) 10(9) 60 38(32) SNHT11023R/L-WX PTMA03503 TW09S 160R/L-T05 16 160 5 43 80(70) 38.1(40) 15.9(16.4) 10(9) 60 38(32) SNHT1103R/L-WX PTMA03504 TW09S 160R/L-T06 16 160 6 43 80(70) 38.1(40) 15.9(16.4) 10(9) 60 38(32) SNHT12035R/L-WX PTMA04045F TW15S 160R/L-T07 16 160 7 43 80(70) 38.1(40) 15.9(16.4) 10(9) 60 38(32) SNHT1204R/L-WX PTMA0405F TW15S 160R/L-T08 16 160 8 43 80(70) 38.1(40) 15.9(16.4) 10(9) 60 38(32) SNHT12045R/L-WX PTMA0406F TW15S 160R/L-T09 16 160 9 43 80(70) 38.1(40) 15.9(16.4) 10(9) 60 38(32) SNHT1205R/L-WX PTMA0407F TW15S 160R/L-T10 16 160 10 43 80(70) 38.1(40) 15.9(16.4) 10(9) 60 38(32) SNHT12054R/L-WX PTMA0408F TW15S 160R/L-T11 16 160 11 43 80(70) 38.1(40) 15.9(16.4) 10(9) 60 38(32) SNHT1206R/L-WX PTKA0409F TW15S 160R/L-T12 16 160 12 43 80(70) 38.1(40) 15.9(16.4) 10(9) 60 38(32) SNHT12065R/L-WX PTKA0410F TW15S 160R/L-T13 16 160 13 43 80(70) 38.1(40) 15.9(16.4) 10(9) 60 38(32) SNHT1207R/L-WX PTKA0411F TW15S 160R/L-T14 16 160 14 43 80(70) 38.1(40) 15.9(16.4) 10(9) 60 38(32) SNHT12075R/L-WX PTKA0412F TW15S 200R/L-T06 18 200 6 53 90 38.1(40) 15.9(16.4) 10(9) 65 38(32) SNHT12035R/L-WX PTMA04045F TW15S 200R/L-T07 18 200 7 53 90 38.1(40) 15.9(16.4) 10(9) 65 38(32) SNHT1204R/L-WX PTMA0405F TW15S 200R/L-T08 18 200 8 53 90 38.1(40) 15.9(16.4) 10(9) 65 38(32) SNHT12045R/L-WX PTMA0406F TW15S 200R/L-T09 18 200 9 53 90 38.1(40) 15.9(16.4) 10(9) 65 38(32) SNHT1205R/L-WX PTMA0407F TW15S 200R/L-T10 18 200 10 53 90 38.1(40) 15.9(16.4) 10(9) 65 38(32) SNHT12054R/L-WX PTMA0408F TW15S 200R/L-T11 18 200 11 53 90 38.1(40) 15.9(16.4) 10(9) 65 38(32) SNHT1206R/L-WX PTKA0409F TW15S 200R/L-T12 18 200 12 53 90 38.1(40) 15.9(16.4) 10(9) 65 38(32) SNHT12065R/L-WX PTKA0410F TW15S 200R/L-T13 18 200 13 53 90 38.1(40) 15.9(16.4) 10(9) 65 38(32) SNHT1207R/L-WX PTKA0411F TW15S 200R/L-T14 18 200 14 53 90 38.1(40) 15.9(16.4) 10(9) 65 38(32) SNHT12075R/L-WX PTKA0412F TW15S 250R/L-T06 20 250 6 73(78) 100(90) 50.8(40) 19.1(16.4) 11(9) 65 38(32) SNHT12035R/L-WX PTMA04045F TW15S 250R/L-T07 20 250 7 73(78) 100(90) 50.8(40) 19.1(16.4) 11(9) 65 38(32) SNHT1204R/L-WX PTMA0405F TW15S 250R/L-T08 20 250 8 73(78) 100(90) 50.8(40) 19.1(16.4) 11(9) 65 38(32) SNHT12045R/L-WX PTMA0406F TW15S 250R/L-T09 20 250 9 73(78) 100(90) 50.8(40) 19.1(16.4) 11(9) 65 38(32) SNHT1205R/L-WX PTMA0407F TW15S 250R/L-T10 20 250 10 73(78) 100(90) 50.8(40) 19.1(16.4) 11(9) 65 38(32) SNHT12054R/L-WX PTMA0408F TW15S 250R/L-T11 20 250 11 73(78) 100(90) 50.8(40) 19.1(16.4) 11(9) 65 38(32) SNHT1206R/L-WX PTKA0409F TW15S 250R/L-T12 20 250 12 73(78) 100(90) 50.8(40) 19.1(16.4) 11(9) 65 38(32) SNHT12065R/L-WX PTKA0410F TW15S 250R/L-T13 20 250 13 73(78) 100(90) 50.8(40) 19.1(16.4) 11(9) 65 38(32) SNHT1207R/L-WX PTKA0411F TW15S 250R/L-T14 20 250 14 73(78) 100(90) 50.8(40) 19.1(16.4) 11(9) 65 38(32) SNHT12075R/L-WX PTKA0412F TW15S Available Inserts E18 Milling Fig.1 0100-0250 Fig.2 ( )MetricSize, Stock item 296
