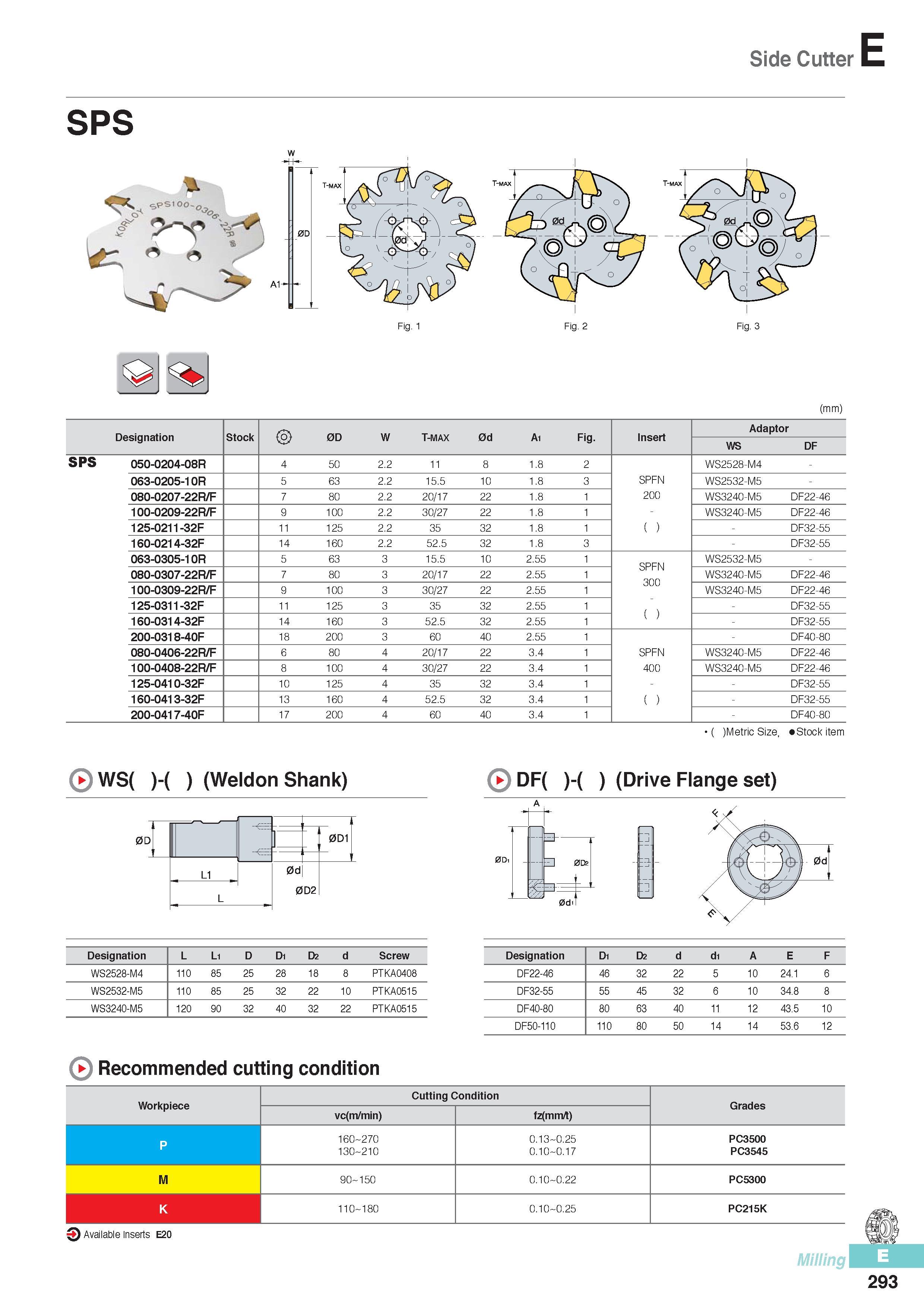

Side Cutter SPS Fig. 2 Fig. 3 (mm) Designation Stock 0D W T-MAX 0d A1 Fig. Insert Adaptor WS DF SPS 050-0204-08R 4 50 2.2 11 8 1.8 2 WS2528-M4 - 063-0205-10R 5 63 2.2 15.5 10 1.8 3 SPFN WS2532-M5 - 080-0207-22R/F 7 80 2.2 20/17 22 1.8 1 200 WS3240-M5 DF22-46 100-0209-22R/F 9 100 2.2 30/27 22 1.8 1 WS3240-M5 DF22-46 125-0211-32F 11 125 2.2 35 32 1.8 1 ( ) - DF32-55 160-0214-32F 14 160 2.2 52.5 32 1.8 - DF32-55 063-0305-10R 5 63 3 15.5 10 2.55 1 SPFN 300 WS2532-M5 - 080-0307-22R/F 7 80 3 20/17 22 2.55 1 WS3240-M5 DF22-46 100-0309-22R/F 9 100 3 30/27 22 2.55 1 WS3240-M5 DF22-46 125-0311-32F 11 125 3 35 32 2.55 1 - DF32-55 160-0314-32F 14 160 3 52.5 32 2.55 1 ( ) - DF32-55 200-0318-40F 18 200 3 60 40 2.55 1 - DF40-80 080-0406-22R/F 6 80 4 20/17 22 3.4 1 SPFN WS3240-M5 DF22-46 100-0408-22R/F 8 100 4 30/27 22 3.4 1 400 WS3240-M5 DF22-46 125-0410-32F 10 125 4 35 32 3.4 1 DF32-55 160-0413-32F 13 160 4 52.5 32 3.4 1 ( ) - DF32-55 200-0417-40F 17 200 4 60 40 3.4 1 - DF40-80 ( )MetricSize, Stock item ( WS( )-( ) (Weldon Shank) Designation L L1 D D1 D2 d Screw WS2528-M4 110 85 25 28 18 8 PTKA0408 WS2532-M5 110 85 25 32 22 10 PTKA0515 WS3240-M5 120 90 32 40 32 22 PTKA0515 ( Recommended cutting condition DF( )-( ) (Drive Flange set) Designation D1 D2 d d1 A E F DF22-46 46 32 22 5 10 24.1 6 DF32-55 55 45 32 6 10 34.8 8 DF40-80 80 63 40 11 12 43.5 10 DF50-110 110 80 50 14 14 53.6 12 Workpiece Cutting Condition Grades vc(m/min) fz(mm/t) 160 270 0.13 0.25 PC3500 130 210 0.10 0.17 PC3545 M 90 150 0.10 0.22 PC5300 K 110 180 0.10 0.25 PC215K Available Inserts E20 Milling 293
