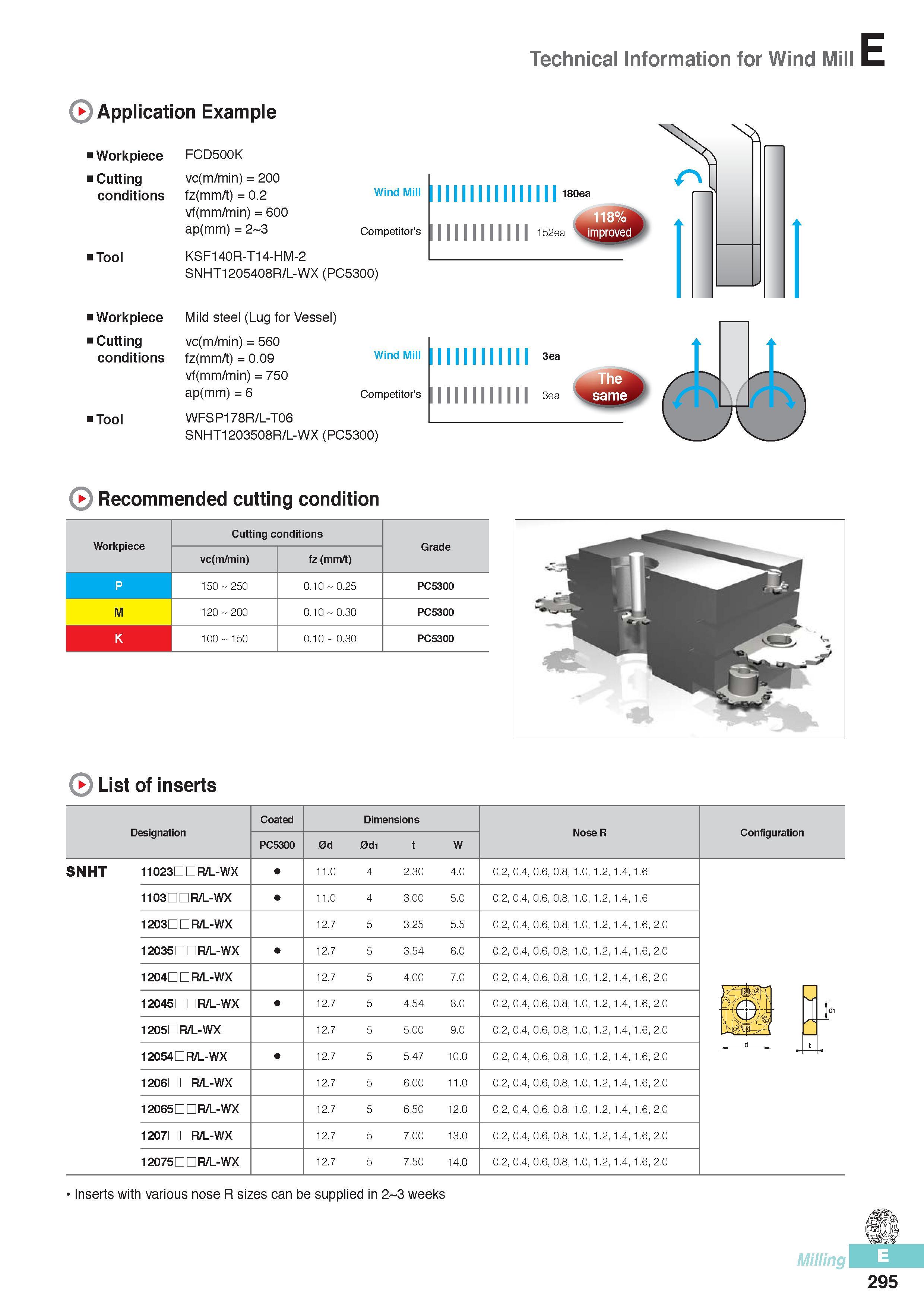

Technical Information for Wind Mill Application Example Workpiece Cutting conditions i Tool FCD500K vc(m/min) = 200 fz(mm/t) = 0.2 vf(mm/min) = 600 ap(mm) = 2 3 Wind Mill Competitor's KSF140R-T14-HM-2 SNHT1205408R/L-WX (PC5300) i Workpiece Mild steel (Lug for Vessel) Cutting conditions Tool vc(m/min) = 560 fz(mm/t) = 0.09 vf(mm/min) = 750 ap(mm) = 6 Wind Mill Competitor's WFSP178R/L-T06 SNHT1203508R/L-WX (PC5300) 3ea 3ea Recommended cutting condition Workpiece Cutting conditions Grade vc(m/min) fz (mm/t) P 150 250 0.10 0.25 PC5300 M 120 200 0.10 0.30 PC5300 K 100 150 0.10 0.30 PC5300 List of inserts Designation Coated Dimensions Nose R Configuration PC5300 0d 0d1 t W SNHT 11023 R/L-WX 11.0 4 2.30 4.0 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6 1103 R/L-WX 11.0 4 3.00 5.0 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6 1203 R/L-WX 12.7 5 3.25 5.5 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6, 2.0 12035 R/L-WX 12.7 5 3.54 6.0 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6, 2.0 1204 R/L-WX 12.7 5 4.00 7.0 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6, 2.0 ft- -t- 12045 R/L-WX 12.7 5 4.54 8.0 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6, 2.0 Mi 1205 R/L-WX 12.7 5 5.00 9.0 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6, 2.0 12054 R/L-WX 12.7 5 5.47 10.0 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6, 2.0 1206 R/L-WX 12.7 5 6.00 11.0 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6, 2.0 12065 R/L-WX 12.7 5 6.50 12.0 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6, 2.0 1207 R/L-WX 12.7 5 7.00 13.0 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6, 2.0 12075 R/L-WX 12.7 5 7.50 14.0 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6, 2.0 Inserts with various nose R sizes can be supplied in 2 3 weeks Milling 295
