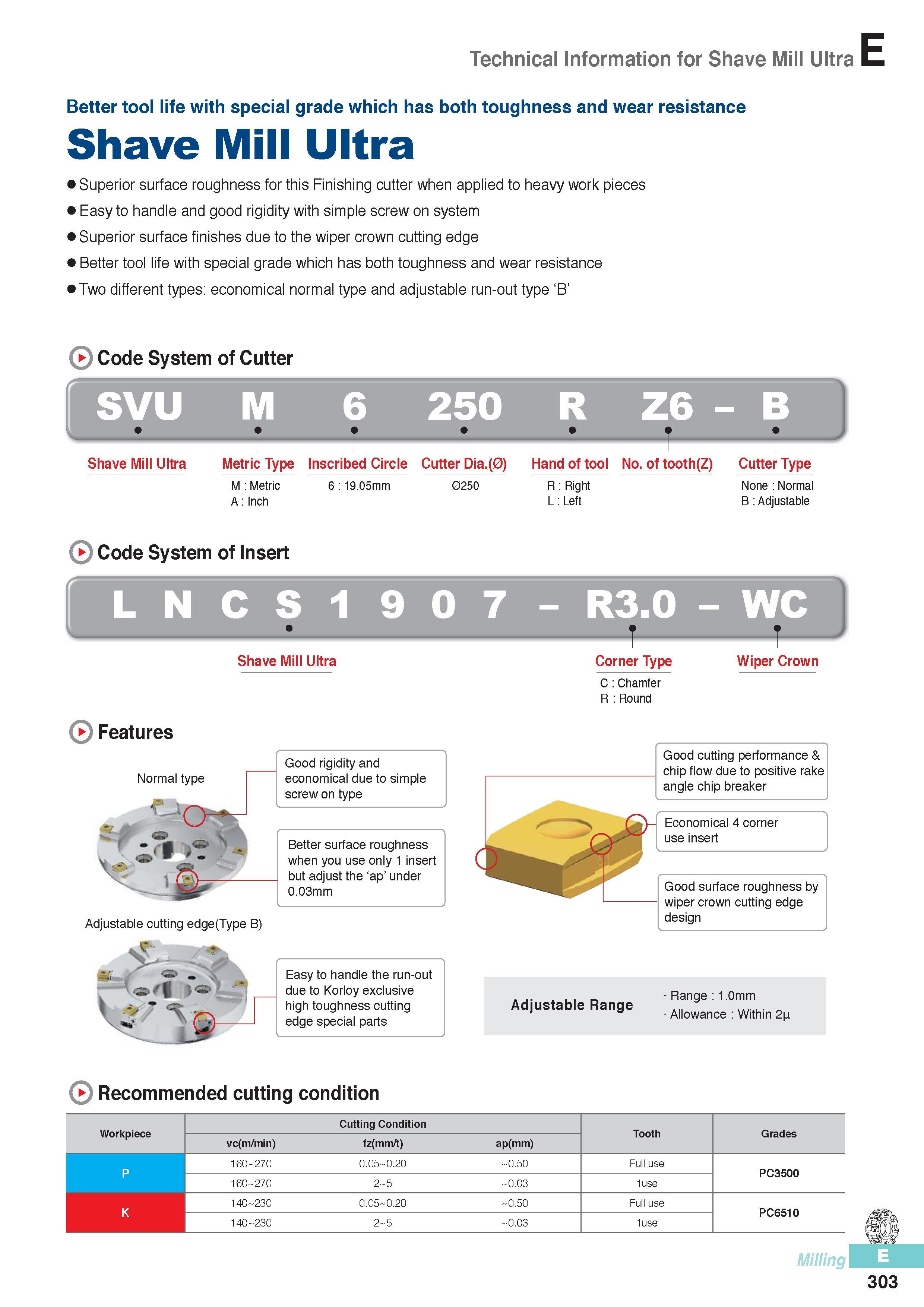

Technical Information for Shave Mill Ultra Better tool life with special grade which has both toughness and wear resistance Shave Mill Ultra Superior surface roughness for this Finishing cutter when applied to heavy work pieces Easyto handle and good rigidity with simple screw on system Superior surface finishes due to the wiper crown cutting edge Better tool life with special grade which has both toughness and wear resistance Two different types: economical normal type and adjustable run-out type ‘B’ Code System of Cutter SVU 250 R Z6 - Shave Mill Ultra Metric Type Inscribed Circle Cutter Dia.(0) Hand of tool No. of tooth(Z) Cutter Type M Metric A: Inch 6:19.05mm 0250 R: Right L: Left None Normal B: Adjustable 6 Code System of Insert L N C S 1 9 Shave Mill Ultra ( Features Normal type Adjustable cutting edge(Type B) -j- I .v 7 Good rigidity and economical due to simple screw on type Better surface roughness when you use only 1 insert but adjust the ‘ap’ under 0.03mm Easy to handle the run-out due to Korloy exclusive high toughness cutting t edge special parts - WC Corner Type C: Chamfer R Round Wiper Crown Good cutting performance & chip flow due to positive rake angle chip breaker Economical 4 corner use insert Good surface roughness by wiper crown cutting edge design Adjustable Range Range 1.0mm Allowance Within 2 j Recommended cutting condition Workpiece Cutting Condition Tooth Grades vc(m/min) fz(mm/t) ap(mm) 160 270 0.05 0.20 0.50 Full use PC3500 160 270 5 2 0.03 1use K 140 230 0.05 0.20 0.50 Full use PC6510 140 230 5 2 0.03 1use Milling 303
