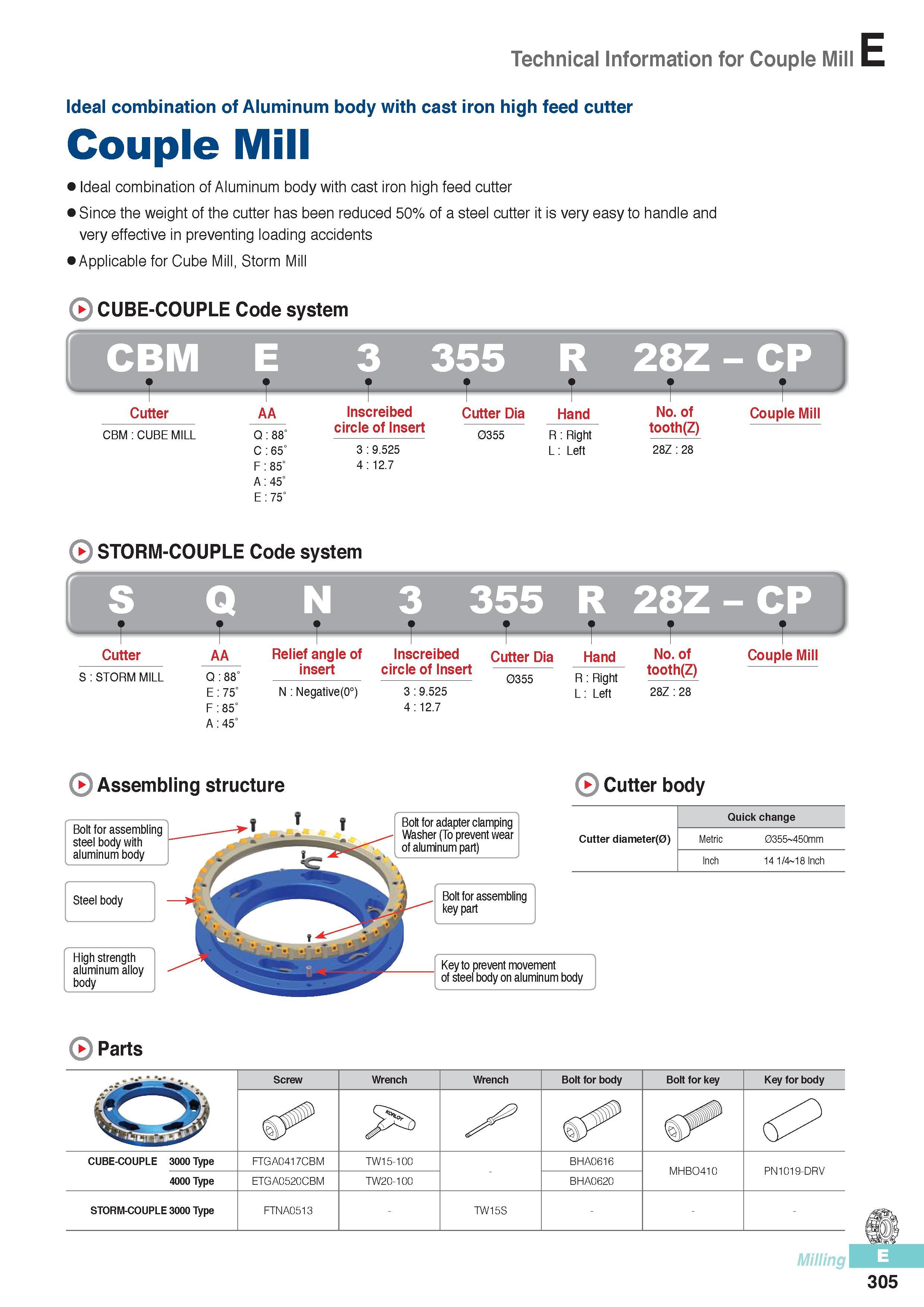

Technical Information for Couple Mill Ideal combination of Aluminum body with cast iron high feed cutter Couple Mill Ideal combination of Aluminum body with cast iron high feed cutter Since the weight of the cutter has been reduced 50% of a steel cutter it is very easy to handle and very effective in preventing loading accidents Applicable for Cube Mill, Storm Mill E CUBE-COUPLE Code system 3 355 R 28Z - CP Cutter CBM CUBE MILL AA Q: 88° C:65° F: 85° A:45° E:75° Inscreibed circle of Insert 3 9.525 4 12.7 Cutter Dia Hand 0355 R: Right L: Left No. of tooth(Z) 28Z 28 Couple Mill STORM-COUPLE Code system 3 355 R 28Z-CP Cutter S STORM MILL AA Q:88° E:75° F:85° A:45° Relief angle of Inscreibed Cutter Dia Hand insert circle of Insert N Negative(0° 0355 3 :9.525 4 12.7 R: Right L: Lett No. of tooth(Z) 28Z 28 Couple Mill Assembling structure Bolt for assembling steel body with aluminum body Steel body High strength aluminum alloy body Bolt for adapter clamping Washer (To prevent wear of aluminum part) Bolt for assembling key part Cutter body Quick change Cutter diameter(0) Metric 0355 45Omm Inch 14 1/4 18 Inch Keyto prevent movement of steel body on aluminum body Parts Screw Wrench Wrench Bolt for body Bolt for key Key for body d 5 5 CUBE-COUPLE 3000 Type FTGA0417CBM TW15-100 BHA0616 MHB0410 PN1019-DRV 4000 Type ETGA0520CBM TW20-100 BHA0620 STORM-COUPLE 3000 Type FTNA0513 - TW15S - Milling 305
