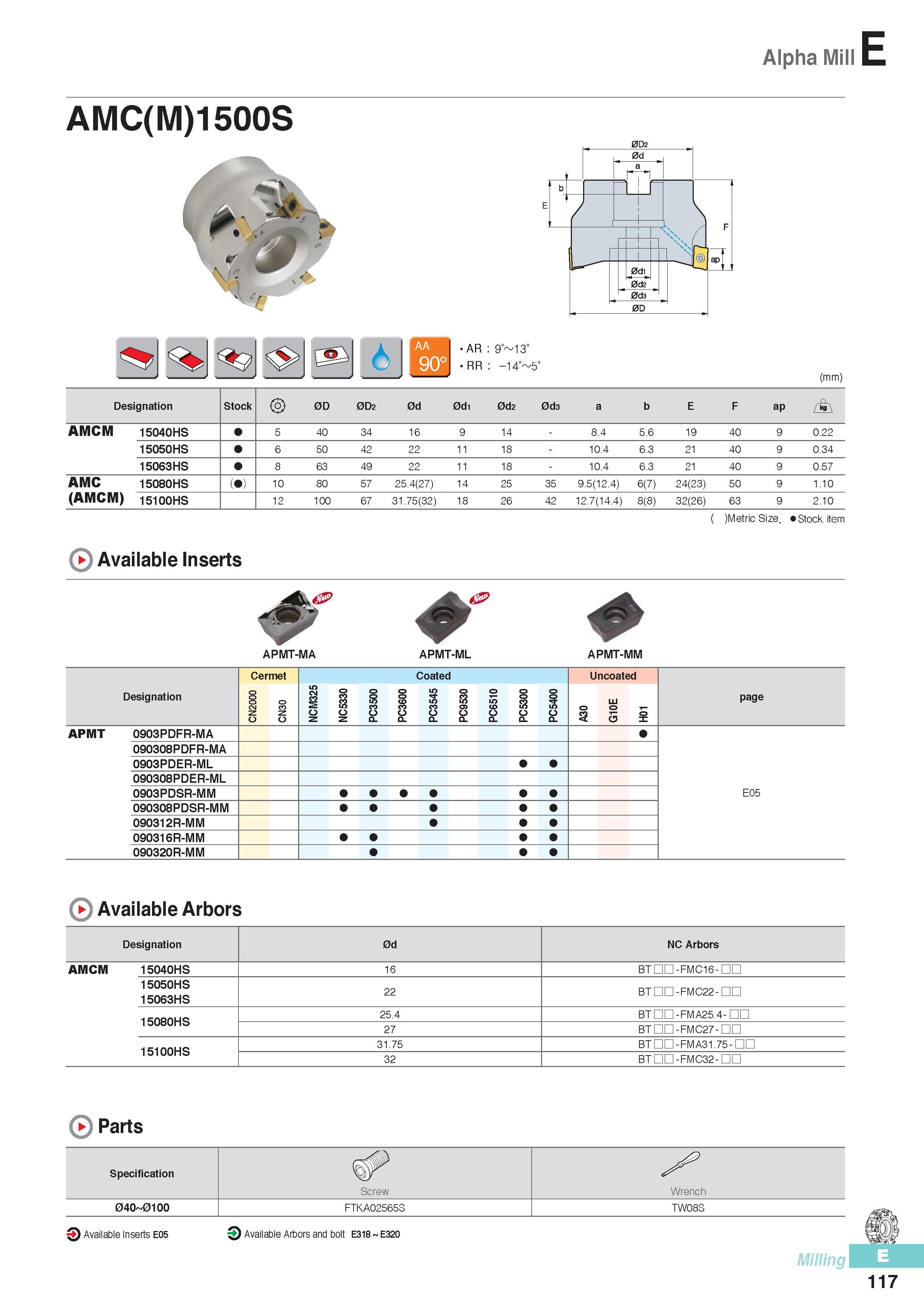

Alpha Mill E AMC(M)1500S AR 9° 13‘ RR -14° 5‘ (mm) Designation Stock 0D 0D2 0d 0di 0d2 0d3 a b E F ap A AMCM 15040HS 5 40 34 16 9 14 - 8.4 5.6 19 40 9 0.22 15050HS 6 50 42 22 11 18 - 10.4 6.3 21 40 9 0.34 15063HS 8 63 49 22 11 18 - 10.4 6.3 21 40 9 0.57 AMC 15080HS ( ) 10 80 57 25.4(27) 14 25 35 9.5(12.4) 6(7) 24(23) 50 9 1.10 (AMCM) 15100HS 12 100 67 31.75(32) 18 26 42 12.7(14.4) 8(8) 32(26) 63 9 2.10 ( )Metric Size, Stock item Available Inserts APMT-MA APMT-ML APMT-MM Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NC5330 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 page APMT 0903PDFR-MA 090308PDFR-MA 0903PDER-ML 090308PDER-ML 0903PDSR-MM E05 090308PDSR-MM 090312R-MM 090316R-MM 090320R-MM Available Arbors Designation 0d NC Arbors AMCM 15040HS 16 BT -FMC16- 15050HS 15063HS 22 BT -FMC22- 15080HS 25.4 BT -FMA25.4- 27 BT -FMC27- 15100HS 31.75 BT -FMA31.75- 32 BT -FMC32- Specification Screw Wrench 040 0100 FTKA02565S TW08S 0 Available Inserts E05 O Available Arbors and bolt E318 E320 Milling 117
