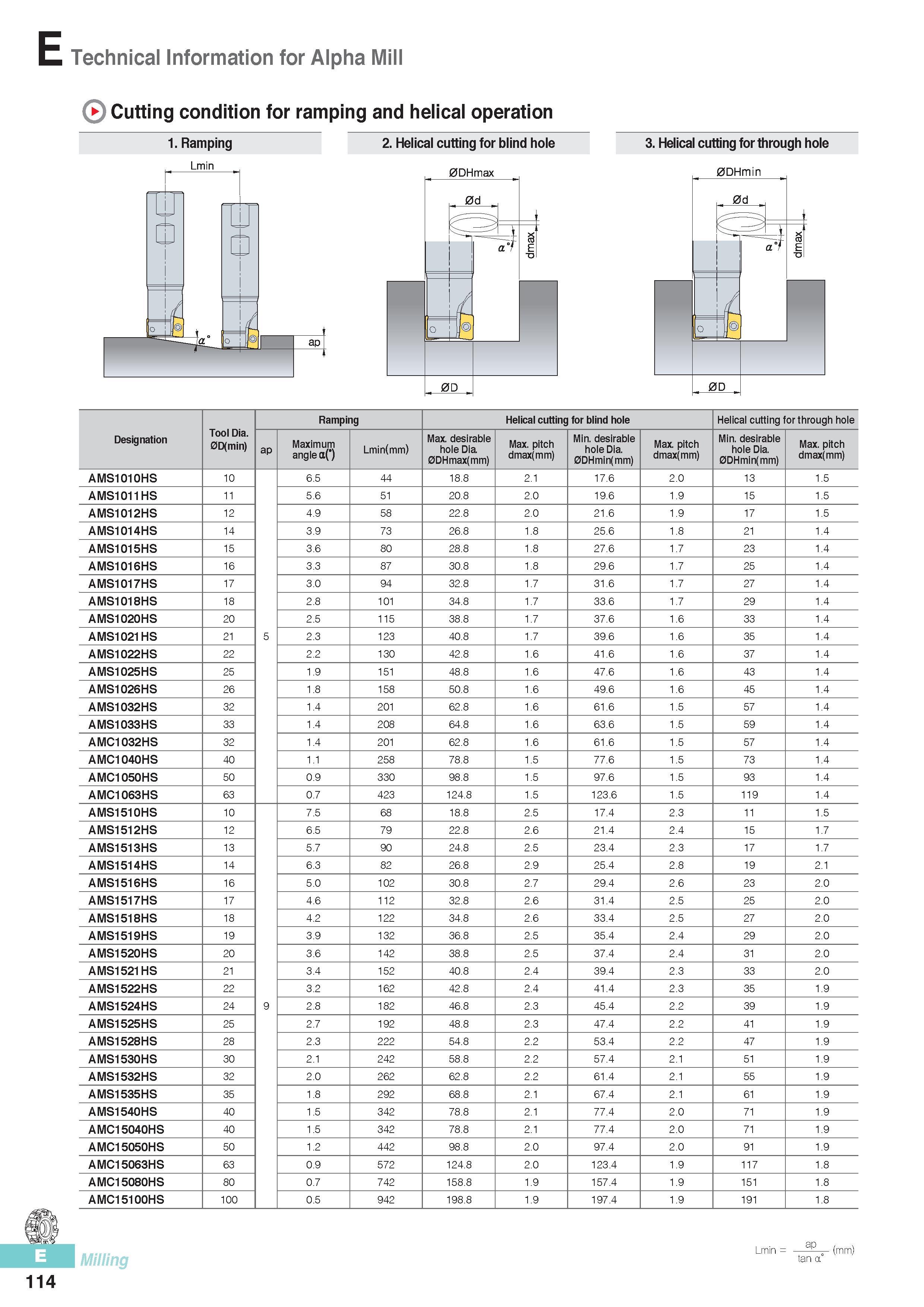

E Technical Information for Alpha Mill Cutting condition for ramping and helical operation 1. Ramping 2. Helical cutting for blind hole 3. Helical cutting for through hole Lmin 0DHmax 0DHmin Designation Tool Dia. 0D(min) Ramping Helical cutting for blind hole Helical cutting for through hole ap Maximum angle a( ) Lmin(mm) Max. desirable hole Dia. 0DHmax(mm) Max. pitch dmax(mm) Min. desirable hole Dia. 0DHmin(mm) Max. pitch dmax(mm) Min. desirable hole Dia. 0DHmin(mm) Max. pitch dmax(mm) AMS1010HS 10 6.5 44 18.8 2.1 17.6 2.0 13 1.5 AMS1011HS 11 5.6 51 20.8 2.0 19.6 1.9 15 1.5 AMS1012HS 12 4.9 58 22.8 2.0 21.6 1.9 17 1.5 AMS1014HS 14 3.9 73 26.8 1.8 25.6 1.8 21 1.4 AMS1015HS 15 3.6 80 28.8 1.8 27.6 1.7 23 1.4 AMS1016HS 16 3.3 87 30.8 1.8 29.6 1.7 25 1.4 AMS1017HS 17 3.0 94 32.8 1.7 31.6 1.7 27 1.4 AMS1018HS 18 2.8 101 34.8 1.7 33.6 1.7 29 1.4 AMS1020HS 20 2.5 115 38.8 1.7 37.6 1.6 33 1.4 AMS1021HS 21 5 2.3 123 40.8 1.7 39.6 1.6 35 1.4 AMS1022HS 22 2.2 130 42.8 1.6 41.6 1.6 37 1.4 AMS1025HS 25 1.9 151 48.8 1.6 47.6 1.6 43 1.4 AMS1026HS 26 1.8 158 50.8 1.6 49.6 1.6 45 1.4 AMS1032HS 32 1.4 201 62.8 1.6 61.6 1.5 57 1.4 AMS1033HS 33 1.4 208 64.8 1.6 63.6 1.5 59 1.4 AMC1032HS 32 1.4 201 62.8 1.6 61.6 1.5 57 1.4 AMC1040HS 40 1.1 258 78.8 1.5 77.6 1.5 73 1.4 AMC1050HS 50 0.9 330 98.8 1.5 97.6 1.5 93 1.4 AMC1063HS 63 0.7 423 124.8 1.5 123.6 1.5 119 1.4 AMS1510HS 10 7.5 68 18.8 2.5 17.4 2.3 11 1.5 AMS1512HS 12 6.5 79 22.8 2.6 21.4 2.4 15 1.7 AMS1513HS 13 5.7 90 24.8 2.5 23.4 2.3 17 1.7 AMS1514HS 14 6.3 82 26.8 2.9 25.4 2.8 19 2.1 AMS1516HS 16 5.0 102 30.8 2.7 29.4 2.6 23 2.0 AMS1517HS 17 4.6 112 32.8 2.6 31.4 2.5 25 2.0 AMS1518HS 18 4.2 122 34.8 2.6 33.4 2.5 27 2.0 AMS1519HS 19 3.9 132 36.8 2.5 35.4 2.4 29 2.0 AMS1520HS 20 3.6 142 38.8 2.5 37.4 2.4 31 2.0 AMS1521HS 21 3.4 152 40.8 2.4 39.4 2.3 33 2.0 AMS1522HS 22 3.2 162 42.8 2.4 41.4 2.3 35 1.9 AMS1524HS 24 9 2.8 182 46.8 2.3 45.4 2.2 39 1.9 AMS1525HS 25 2.7 192 48.8 2.3 47.4 2.2 41 1.9 AMS1528HS 28 2.3 222 54.8 2.2 53.4 2.2 47 1.9 AMS1530HS 30 2.1 242 58.8 2.2 57.4 2.1 51 1.9 AMS1532HS 32 2.0 262 62.8 2.2 61.4 2.1 55 1.9 AMS1535HS 35 1.8 292 68.8 2.1 67.4 2.1 61 1.9 AMS1540HS 40 1.5 342 78.8 2.1 77.4 2.0 71 1.9 AMC15040HS 40 1.5 342 78.8 2.1 77.4 2.0 71 1.9 AMC15050HS 50 1.2 442 98.8 2.0 97.4 2.0 91 1.9 AMC15063HS 63 0.9 572 124.8 2.0 123.4 1.9 117 1.8 AMC15080HS 80 0.7 742 158.8 1.9 157.4 1.9 151 1.8 AMC15100HS 100 0.5 942 198.8 1.9 197.4 1.9 191 1.8 Milling Lmin ap tan a (mm) 114
