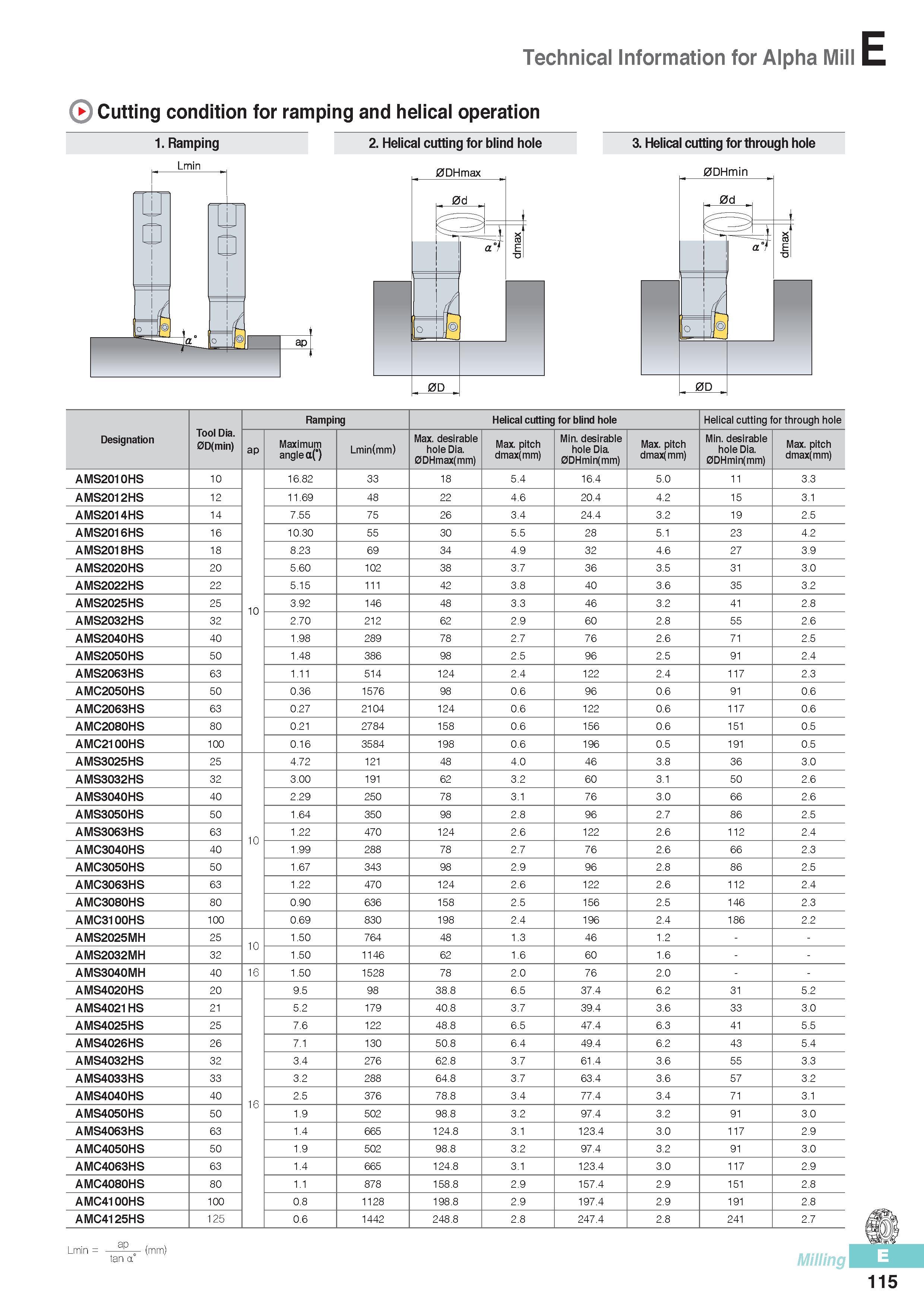

Technical Information for Alpha Mill E Cutting condition for ramping and helical operation 1. Ramping Lmin 2. Helical cutting for blind hole 0DHmax 3. Helical cutting for through hole 0DHmin 0° Designation Tool Dia. 0D(min) Ramping Helical cutting for blind hole Helical cutting for through hole ap Maximum angle a(‘) Lmin(mm) Max. desirable hole Dia. 0DHmax(mm) Max. pitch dmax(mm) Min. desirable hole Dia. 0DHmin(mm) Max. pitch dmax(mm) Min. desirable hole Dia. 0DHmin(mm) Max. pitch dmax(mm) AMS2010HS 10 16.82 33 18 5.4 16.4 5.0 11 3.3 AMS2012HS 12 11.69 48 22 4.6 20.4 4.2 15 3.1 AMS2014HS 14 7.55 75 26 3.4 24.4 3.2 19 2.5 AMS2016HS 16 10.30 55 30 5.5 28 5.1 23 4.2 AMS2018HS 18 8.23 69 34 4.9 32 4.6 27 3.9 AMS2020HS 20 5.60 102 38 3.7 36 3.5 31 3.0 AMS2022HS 22 5.15 111 42 3.8 40 3.6 35 3.2 AMS2025HS 25 10 3.92 146 48 3.3 46 3.2 41 2.8 AMS2032HS 32 2.70 212 62 2.9 60 2.8 55 2.6 AMS2040HS 40 1.98 289 78 2.7 76 2.6 71 2.5 AMS2050HS 50 1.48 386 98 2.5 96 2.5 91 2.4 AMS2063HS 63 1.11 514 124 2.4 122 2.4 117 2.3 AMC2050HS 50 0.36 1576 98 0.6 96 0.6 91 0.6 AMC2063HS 63 0.27 2104 124 0.6 122 0.6 117 0.6 AMC2080HS 80 0.21 2784 158 0.6 156 0.6 151 0.5 AMC2100HS 100 0.16 3584 198 0.6 196 0.5 191 0.5 AMS3025HS 25 4.72 121 48 4.0 46 3.8 36 3.0 AMS3032HS 32 3.00 191 62 3.2 60 3.1 50 2.6 AMS3040HS 40 2.29 250 78 3.1 76 3.0 66 2.6 AMS3050HS 50 1.64 350 98 2.8 96 2.7 86 2.5 AMS3063HS 63 1.22 470 124 2.6 122 2.6 112 2.4 AMC3040HS 40 1.99 288 78 2.7 76 2.6 66 2.3 AMC3050HS 50 1.67 343 98 2.9 96 2.8 86 2.5 AMC3063HS 63 1.22 470 124 2.6 122 2.6 112 2.4 AMC3080HS 80 0.90 636 158 2.5 156 2.5 146 2.3 AMC3100HS 100 0.69 830 198 2.4 196 2.4 186 2.2 AMS2025MH 25 1.50 764 48 1.3 46 1.2 - AMS2032MH 32 1.50 1146 62 1.6 60 1.6 - AMS3040MH 40 16 1.50 1528 78 2.0 76 2.0 - AMS4020HS 20 9.5 98 38.8 6.5 37.4 6.2 31 5.2 AMS4021HS 21 5.2 179 40.8 3.7 39.4 3.6 33 3.0 AMS4025HS 25 7.6 122 48.8 6.5 47.4 6.3 41 5.5 AMS4026HS 26 7.1 130 50.8 6.4 49.4 6.2 43 5.4 AMS4032HS 32 3.4 276 62.8 3.7 61.4 3.6 55 3.3 AMS4033HS 33 3.2 288 64.8 3.7 63.4 3.6 57 3.2 AMS4040HS 40 2.5 376 78.8 3.4 77.4 3.4 71 3.1 AMS4050HS 50 16 1.9 502 98.8 3.2 97.4 3.2 91 3.0 AMS4063HS 63 1.4 665 124.8 3.1 123.4 3.0 117 2.9 AMC4050HS 50 1.9 502 98.8 3.2 97.4 3.2 91 3.0 AMC4063HS 63 1.4 665 124.8 3.1 123.4 3.0 117 2.9 AMC4080HS 80 1.1 878 158.8 2.9 157.4 2.9 151 2.8 AMC4100HS 100 0.8 1128 198.8 2.9 197.4 2.9 191 2.8 AMC4125HS 125 0.6 1442 248.8 2.8 247.4 2.8 241 2.7 Lmin ap tan a (mm) Milling 115
