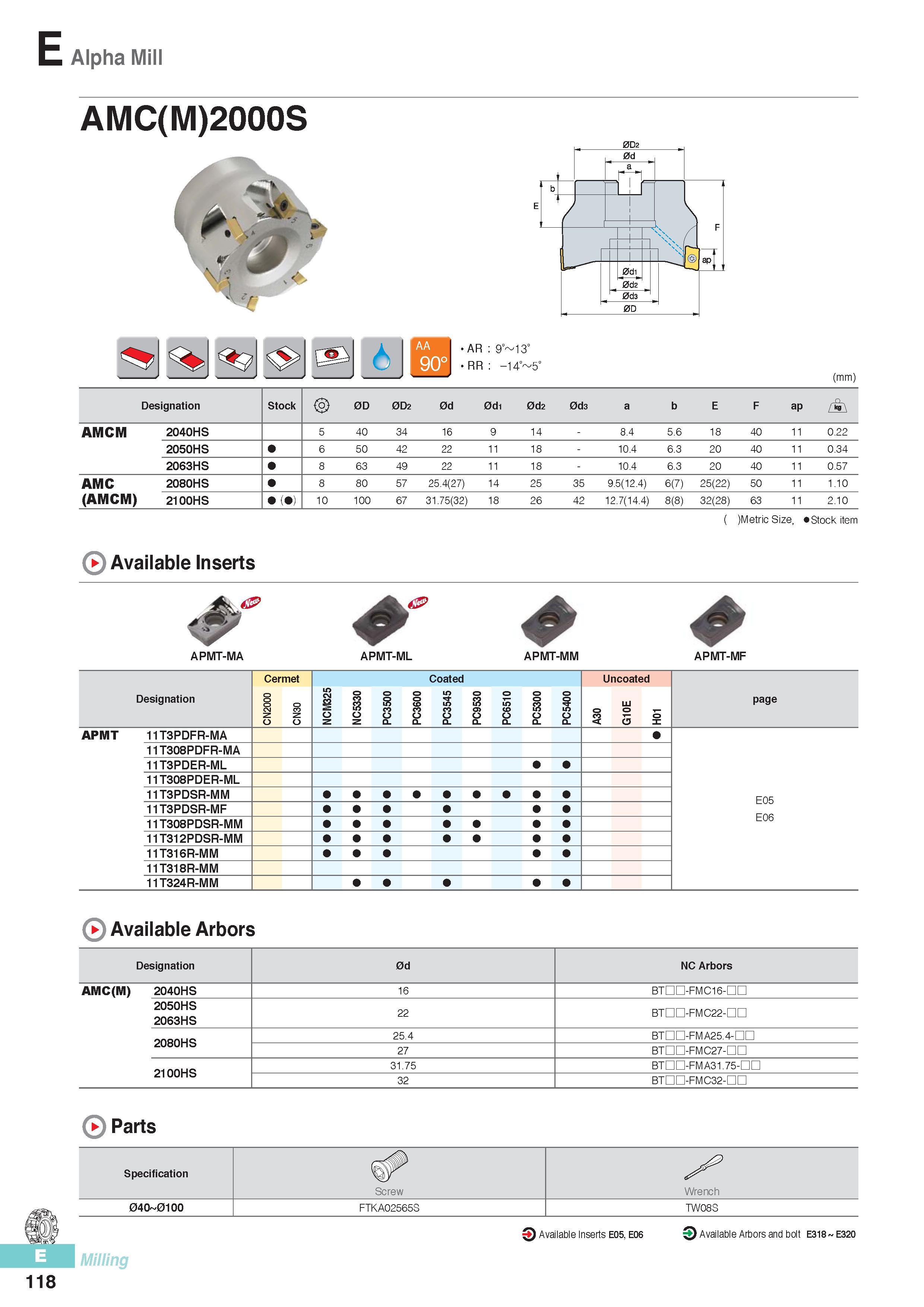

E Alpha Mill AMC(M)2000S AR 9° 13‘ RR -14° 5‘ (mm) Designation Stock 0D 0D2 0d 0d1 0d2 0d3 a b E F ap P \ AMCM 2040HS 5 40 34 16 9 14 - 8.4 5.6 18 40 11 0.22 2050HS 6 50 42 22 11 18 - 10.4 6.3 20 40 11 0.34 2063HS 8 63 49 22 11 18 - 10.4 6.3 20 40 11 0.57 AMC 2080HS 8 80 57 25.4(27) 14 25 35 9.5(12.4) 6(7) 25(22) 50 11 1.10 (AMCM) 2100HS ( ) 10 100 67 31.75(32) 18 26 42 12.7(14.4) 8(8) 32(28) 63 11 2.10 ( )Metric Size, Stock item >) Available Inserts APMT-MA APMT-ML APMT-MM APMT-MF Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NC5330 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 o 3 G10E 01 X page APMT 11T3PDFR-MA E05 E06 11T308PDFR-MA 11T3PDER-ML 11T308PDER-ML 11T3PDSR-MM 11T3PDSR-MF 11T308PDSR-MM 11T312PDSR-MM 11T316R-MM 11T318R-MM 11T324R-MM Available Arbors Designation 0d NC Arbors AMC(M) 2040HS 16 BTHD-FMC16-HD 2050HS 2063HS 22 BTDD-FMC22-DC 2080HS 25.4 BTHD-FMA25.4-HO 27 BTHD-FMC27-HD 2100HS 31.75 BTHD-FMA31.75-HD 32 BTHD-FMC32-HD Parts Specification Screw Wrench 040 0100 FTKA02565S TW08S Milling 118 3 Available Inserts E05, E06 O Available Arbors and bolt E318 E320
