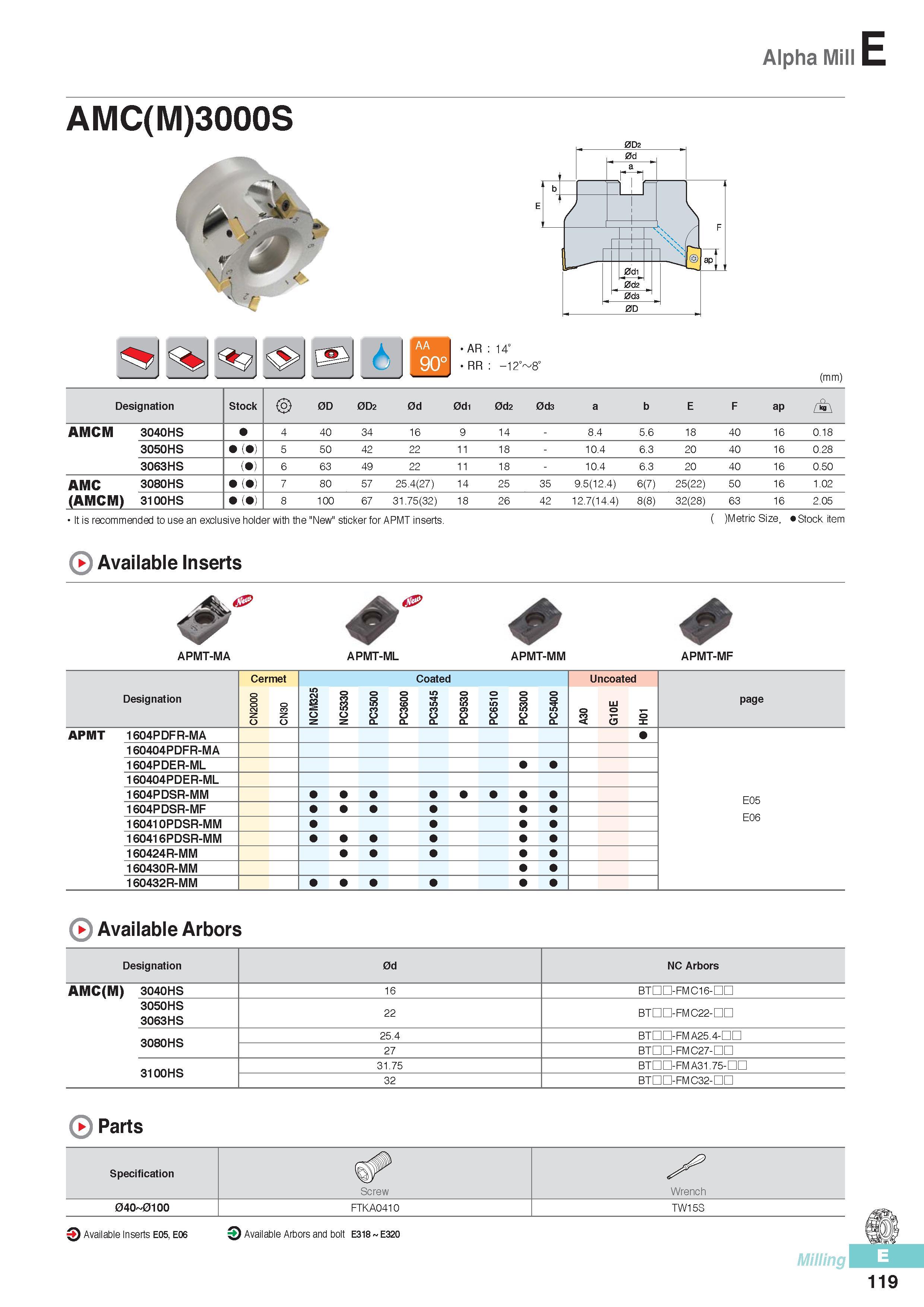

Alpha Mill E AMC(M)3000S AR 14° RR -12° (mm) Designation Stock 0D 0D2 0d 0di 0d2 0d3 a b E F ap AMCM 3040HS 4 40 34 16 9 14 - 8.4 5.6 18 40 16 0.18 3050HS ( ) 5 50 42 22 11 18 - 10.4 6.3 20 40 16 0.28 3063HS ( ) 6 63 49 22 11 18 - 10.4 6.3 20 40 16 0.50 AMC 3080HS ( ) 7 80 57 25.4(27) 14 25 35 9.5(12.4) 6(7) 25(22) 50 16 1.02 (AMCM) 3100HS ( ) 8 100 67 31.75(32) 18 26 42 12.7(14.4) 8(8) 32(28) 63 16 2.05 It is recommended to use an exclusive holder with the "New" sticker for APMTinserts. ( )Metric Size, Stock item >) Available Inserts APMT-MA APMT-ML APMT-MM APMT-MF Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NC5330 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 page APMT 1604PDFR-MA E05 E06 160404PDFR-MA 1604PDER-ML 160404PDER-ML 1604PDSR-MM 1604PDSR-MF 160410PDSR-MM 160416PDSR-MM 160424R-MM 160430R-MM 160432R-MM Available Arbors Designation 0d NC Arbors AMC(M) 3040HS 16 BTHD-FMC16-HO 3050HS 3063HS 22 BTDD-FMC22-DC 3080HS 25.4 BTHD-FMA25.4-HD 27 BTHD-FMC27-HO 3100HS 31.75 BTHD-FMA31.75-HO 32 BT DD-FMC32- > Parts Specification Screw Wrench 040 0100 FTKA0410 TW15S O Available Inserts E05, E06 O Available Arbors and bolt E318 E320 Milling 119
