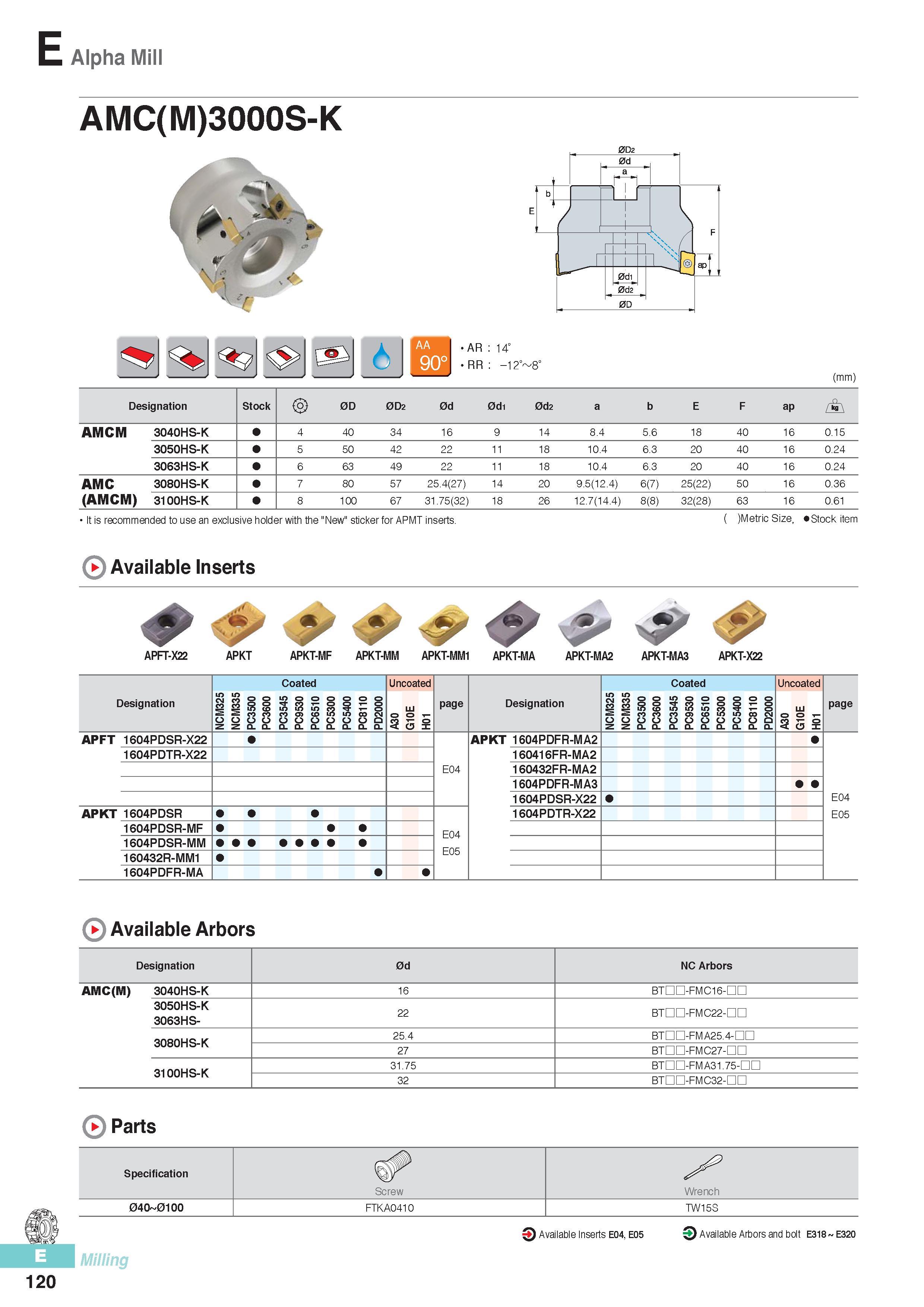

E Alpha Mill AMC(M)3000S-K AR RR 14° -12° 8‘ (mm) Designation Stock 0D 0D2 0d 0di 0d2 a b E F ap AMCM 3040HS-K 4 40 34 16 9 14 8.4 5.6 18 40 16 0.15 3050HS-K 5 50 42 22 11 18 10.4 6.3 20 40 16 0.24 3063HS-K 6 63 49 22 11 18 10.4 6.3 20 40 16 0.24 AMC 3080HS-K 7 80 57 25.4(27) 14 20 9.5(12.4) 6(7) 25(22) 50 16 0.36 (AMCM) 3100HS-K 8 100 67 31.75(32) 18 26 12.7(14.4) 8(8) 32(28) 63 16 0.61 It is recommended to use an exclusive holder with the "New" stickerforAPMTinserts. ( )Metric Size, Stock item Available Inserts APFT-X22 APKT APKT-MF APKT-MM APKT-MM1 APKT-MA APKT-MA2 APKT-MA3 APKT-X22 Designation Coated Uncoated page Designation Coated Uncoated page NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 PC8110 PD2000 A30 G10E H01 NCM325 NCM335 o 8 3 C P PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 PC8110 0 0 0 D P A30 G10E H01 APFT 1604PDSR-X22 APKT 1604PDFR-MA2 1604PDTR-X22 160416FR-MA2 E04 160432FR-MA2 1604PDFR-MA3 1604PDSR-X22 E04 APKT 1604PDSR 1604PDTR-X22 E05 1604PDSR-MF E04 1604PDSR-MM 160432R-MM1 1604PDFR-MA Available Arbors Designation 0d NC Arbors AMC(M) 3040HS-K 16 BTHD-FMC16-HD 3050HS-K 3063HS- 22 BTDD-FMC22-DC 3080HS-K 25.4 BTHD-FMA25.4-HO 27 BTHD-FMC27-HD 3100HS-K 31.75 BTHD-FMA31.75-HD 32 BTHD-FMC32-HD Parts Specification Screw Wrench 040-0100 FTKA0410 TW15S Milling 120 3 Available Inserts E04, E05 O Available Arbors and bolt E318 E320
