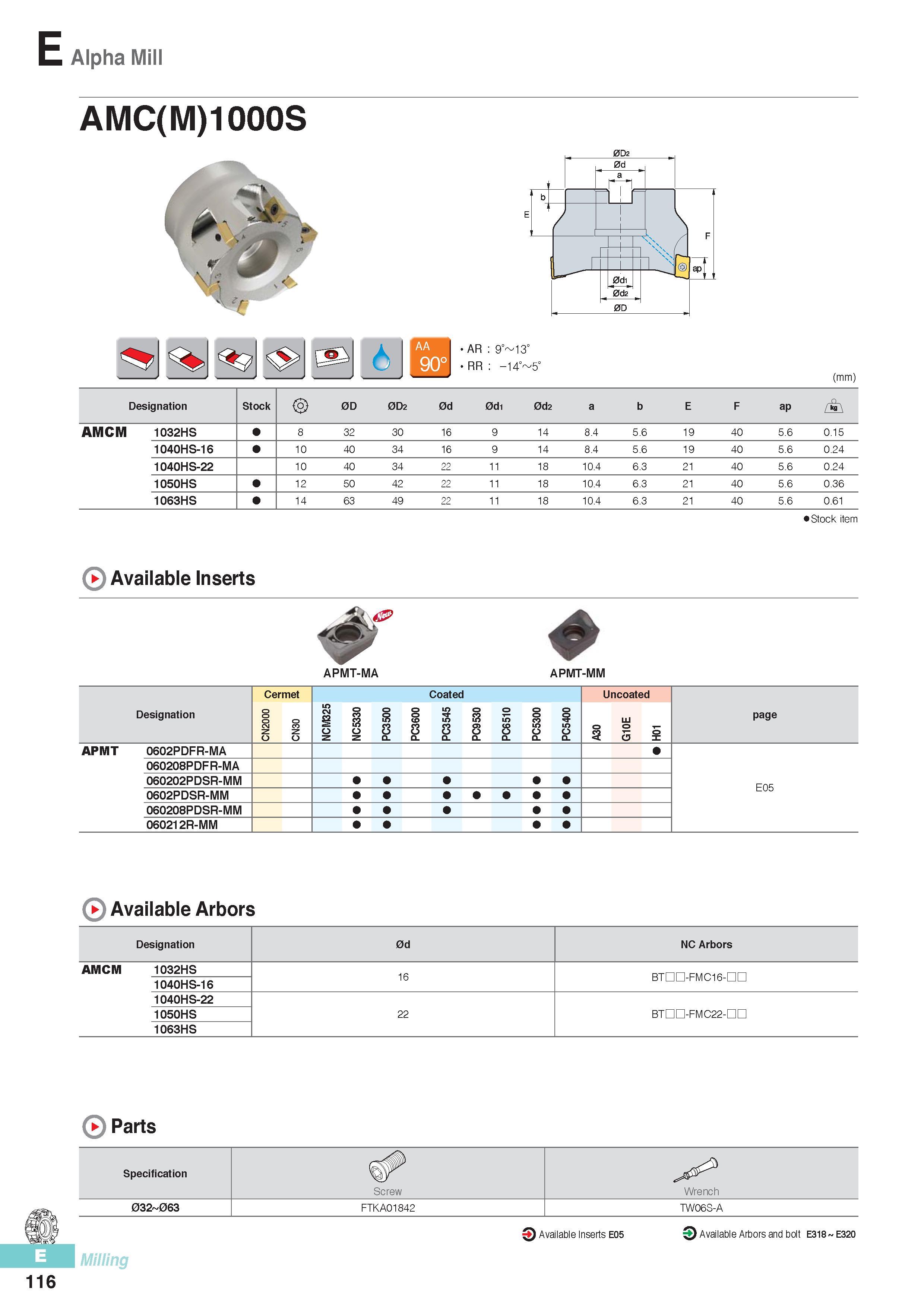

E Alpha Mill AMC(M)1000S AR 9° 13‘ RR -14° 5‘ (mm) Designation Stock 0D 0D2 0d 0d1 0d2 a b E F ap A AMCM 1032HS 8 32 30 16 9 14 8.4 5.6 19 40 5.6 0.15 1040HS-16 10 40 34 16 9 14 8.4 5.6 19 40 5.6 0.24 1040HS-22 10 40 34 22 11 18 10.4 6.3 21 40 5.6 0.24 1050HS 12 50 42 22 11 18 10.4 6.3 21 40 5.6 0.36 1063HS 14 63 49 22 11 18 10.4 6.3 21 40 5.6 0.61 Stock item AA 90° Available Inserts W APMT-MA APMT-MM Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 co s C N PC3500 PC3600 PC3545 PC9530 PC6510 0 0 5 C P PC5400 o 3 G10E 01 X APMT 0602PDFR-MA 060208PDFR-MA 060202PDSR-MM E05 0602PDSR-MM 060208PDSR-MM 060212R-MM Available Arbors Designation 0d NC Arbors AMCM 1032HS 16 BTHD-FMC16-DH 1040HS-16 1040HS-22 22 BTDD-FMC22-DC 1050HS 1063HS Parts Specification Screw Wrench 032 063 FTKA01842 TW06S-A O Available Inserts E05 Milling 116 O Available Arbors and bolt E318 E320
