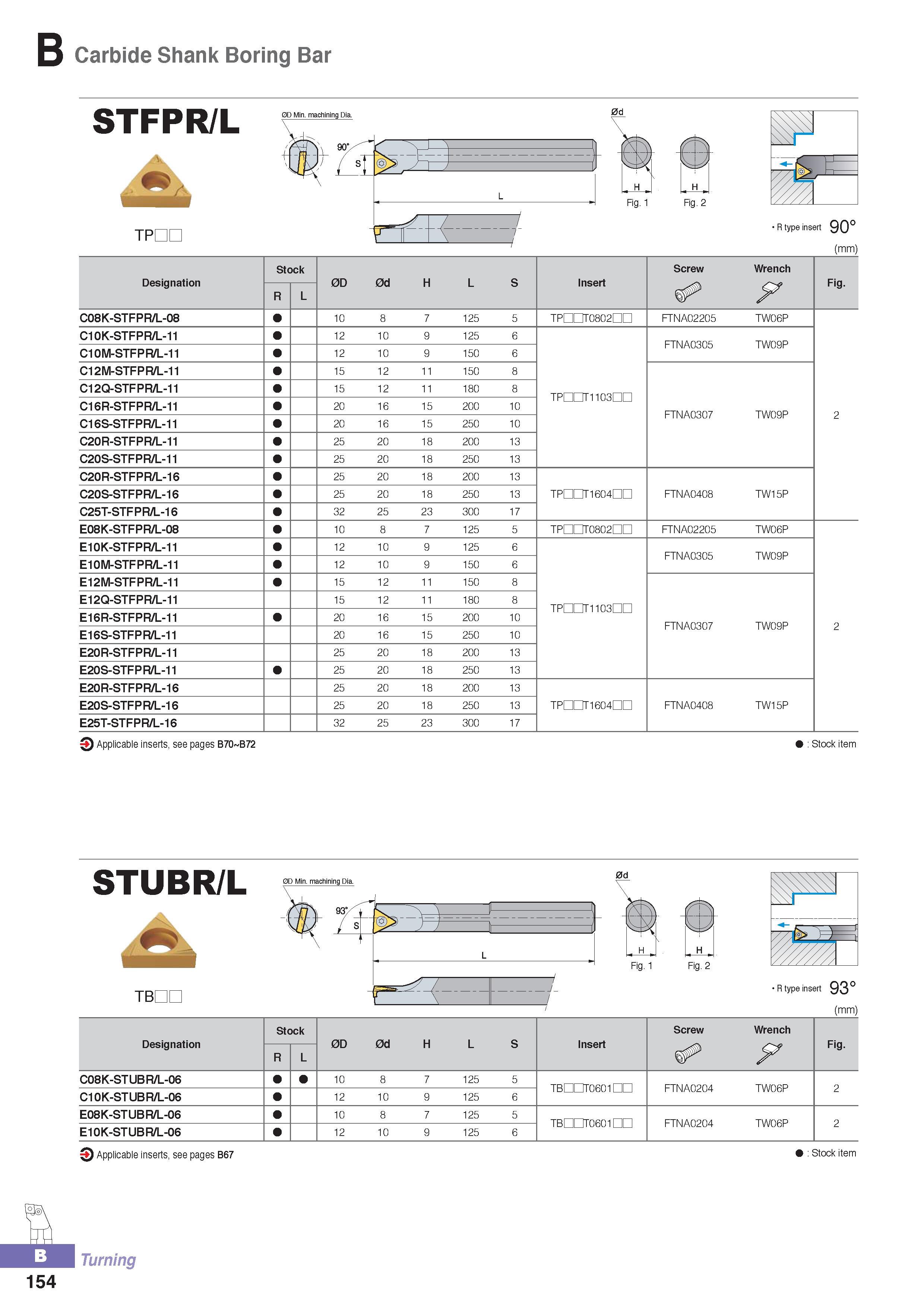

Carbide Shank Boring Bar STFPR/L TPDC R type insert 90° (mm) Designation Stock 0D 0d H L S Insert Screw Wrench Fig. R L C08K-STFPR/L-08 10 8 7 125 5 TPDCT0802Dn FTNA02205 TW06P C10K-STFPR/L-11 12 10 9 125 6 FTNA0305 TW09P C10M-STFPR/L-11 12 10 9 150 6 C12M-STFPR/L-11 15 12 11 150 8 C12Q-STFPR/L-11 15 12 11 180 8 TPDCT1103Dn C16R-STFPR/L-11 20 16 15 200 10 FTNA0307 TW09P 2 C16S-STFPR/L-11 20 16 15 250 10 C20R-STFPR/L-11 25 20 18 200 13 C20S-STFPR/L-11 25 20 18 250 13 C20R-STFPR/L-16 25 20 18 200 13 C20S-STFPR/L-16 25 20 18 250 13 TPDCT1604Dn FTNA0408 TW15P C25T-STFPR/L-16 32 25 23 300 17 E08K-STFPR/L-08 10 8 7 125 5 TPDCT0802Dn FTNA02205 TW06P E10K-STFPR/L-11 12 10 9 125 6 FTNA0305 TW09P E10M-STFPR/L-11 12 10 9 150 6 E12M-STFPR/L-11 15 12 11 150 8 E12Q-STFPR/L-11 15 12 11 180 8 TPDCT1103Dn E16R-STFPR/L-11 20 16 15 200 10 FTNA0307 TW09P 2 E16S-STFPR/L-11 20 16 15 250 10 E20R-STFPR/L-11 25 20 18 200 13 E20S-STFPR/L-11 25 20 18 250 13 E20R-STFPR/L-16 25 20 18 200 13 E20S-STFPR/L-16 25 20 18 250 13 TPDCT1604Dn FTNA0408 TW15P E25T-STFPR/L-16 32 25 23 300 17 3 Applicable inserts, see pages B70 B72 Stock item STUBR/L 0D Min. machining Dia. TBDC H Fig. 1 H Fig. 2 R type insert 93° (mm) Stock Screw Wrench Designation 0D 0d H L S Insert Fig. R L X C08K-STUBR/L-06 10 8 7 125 5 TBnnT'0601nn FTNA0204 TW06P 2 C10K-STUBR/L-06 12 10 9 125 6 E08K-STUBR/L-06 10 8 7 125 5 TBnnT'0601nn FTNA0204 TW06P 2 E10K-STUBR/L-06 12 10 9 125 6 3 Applicable inserts, see pages B67 Stock item 154 Turning
