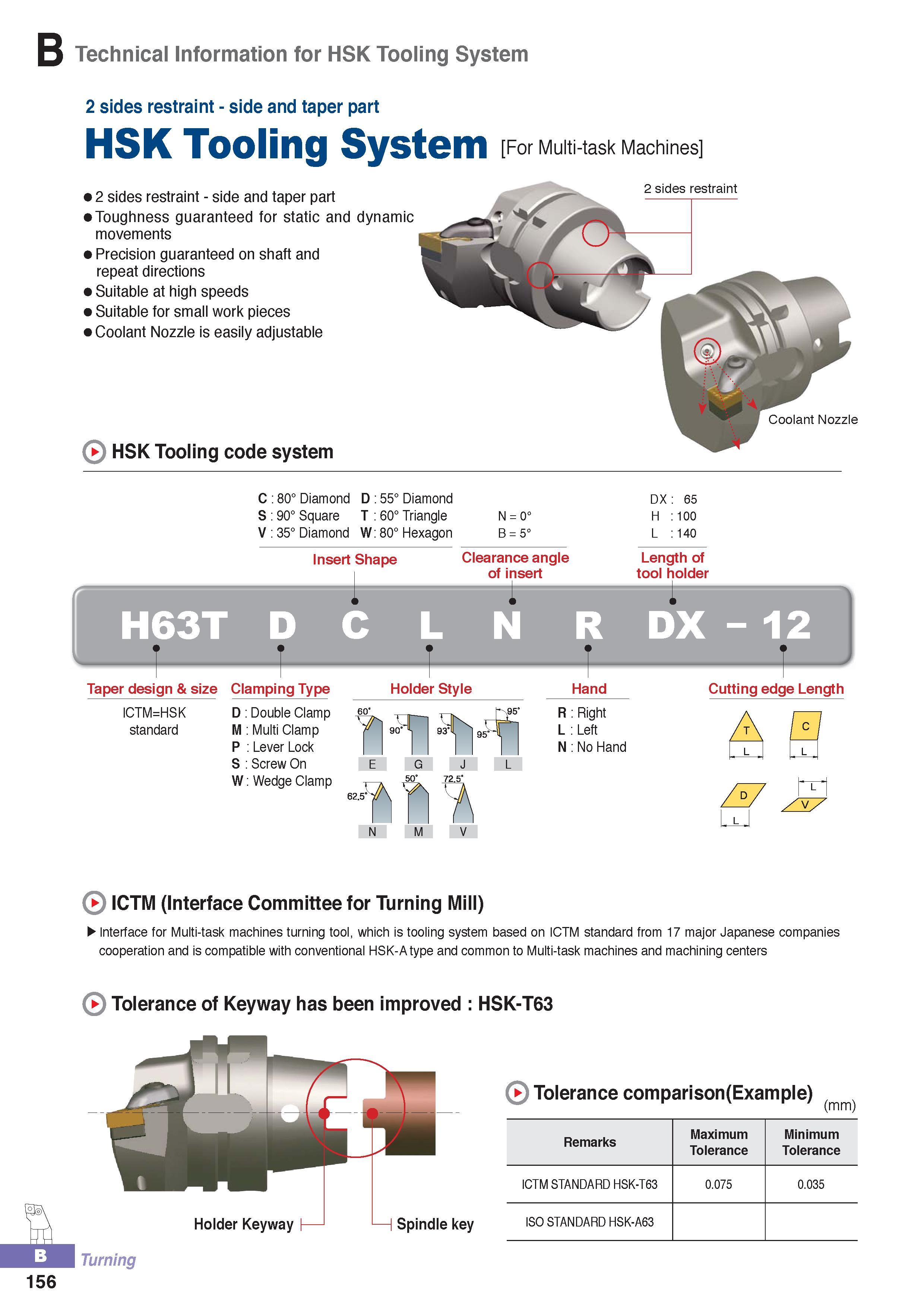

HSK Tooling System Korloy For Multi-task Machines Features 2 sides restraint Side and taper part HSK Tooling System Toughness guaranteed for static and dynamic movements Precision guaranteed on shaft and repeat directions Suitable at high speeds Suitable for small work pieces Coolant Nozzle is easily adjustable 2 sides restraint HSK Tooling code system Coolant Nozzle C 80° Diamond D 55° Diamond S 90° Square T 60° Triangle V 35° Diamond W 80° Hexagon N = 0° B = 5° DX 65 H 100 L 140 Insert Shape Clearance angle of insert 1 Length of tool holder 1 H63T D C L N R DX - 12 j Taper design & size Clamping Type Holder Style ICTM=HSK standard D Double Clamp M Multi Clamp P Lever Lock S Screw On W Wedge Clamp Hand R Right L Left N No Hand Cutting edge Length 50' VS ICTM (Interface Committee for Turning Mill) Interface for Multi-task machines turning tool, which is tooling system based on ICTM standard from 17 major Japanese companies cooperation and is compatible with conventional HSK-A type and common to Multi-task machines and machining centers Tolerance of Keyway has been improved HSK-T63 Holder Keyway Spindle key Turning 156 Tolerance comparison(Example) (mm) Remarks Maximum Tolerance Minimum Tolerance ICTM STANDARD HSK-T63 0.075 0.035 ISO STANDARD HSK-A63 E G J L N M V B Technical Information for 2 sides restraint - side and taper part
