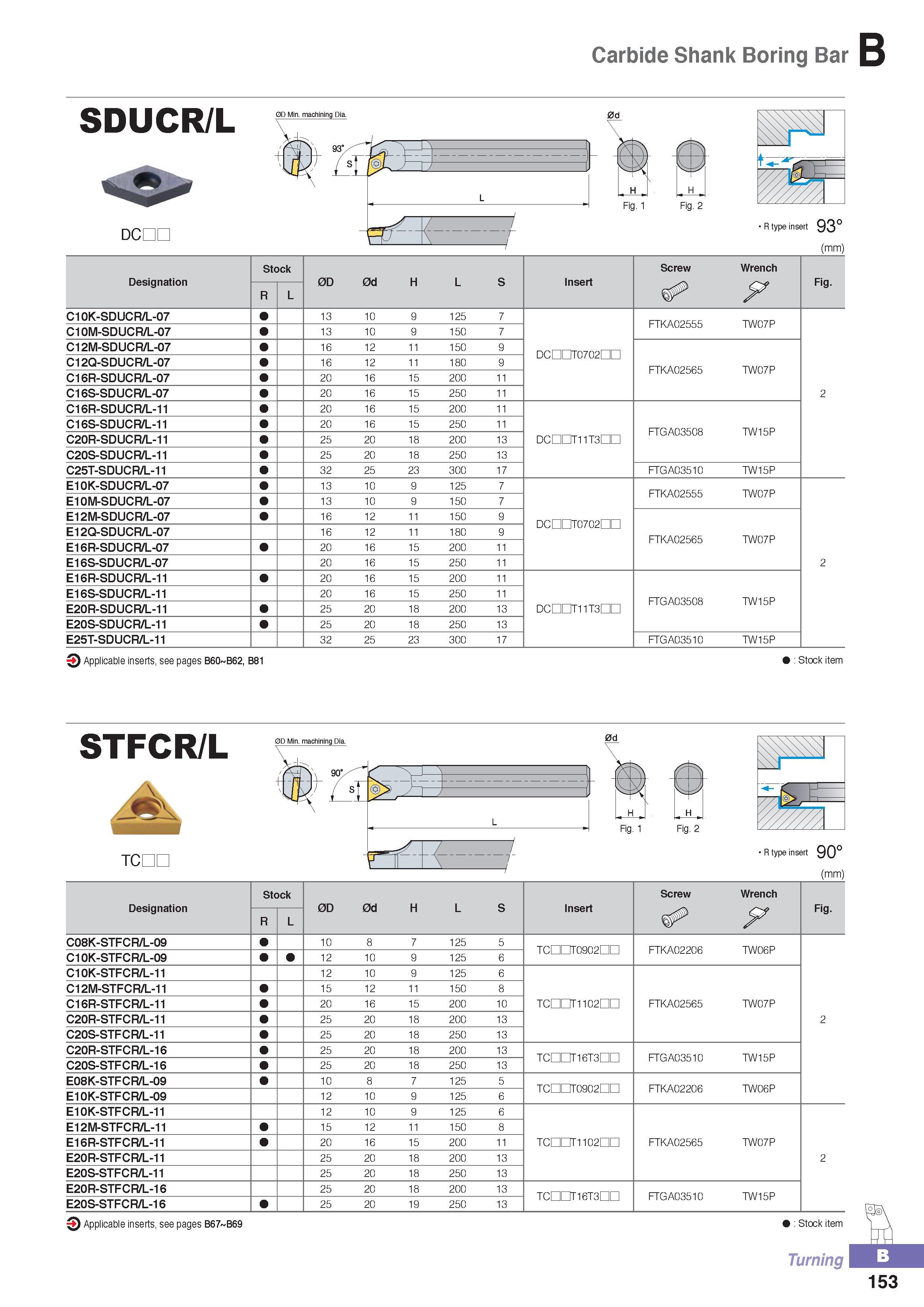

Carbide Shank Boring Bar SDUCR/L 0D Min. machining Dia. dcdc H Fig. 2 R type insert 93° (mm) Stock Screw Wrench Designation 0D 0d H L S Insert Fig. R L y C10K-SDUCR/L-07 13 10 9 125 7 FTKA02555 TW07P C10M-SDUCR/L-07 13 10 9 150 7 C12M-SDUCR/L-07 16 12 11 150 9 DCDDT0702nn C12Q-SDUCR/L-07 16 12 11 180 9 FTKA02565 TW07P C16R-SDUCR/L-07 20 16 15 200 11 C16S-SDUCR/L-07 20 16 15 250 11 2 C16R-SDUCR/L-11 20 16 15 200 11 C16S-SDUCR/L-11 20 16 15 250 11 FTGA03508 TW15P C20R-SDUCR/L-11 25 20 18 200 13 DCDDT11T3nn C20S-SDUCR/L-11 25 20 18 250 13 C25T-SDUCR/L-11 32 25 23 300 17 FTGA03510 TW15P E10K-SDUCR/L-07 13 10 9 125 7 FTKA02555 TW07P E10M-SDUCR/L-07 13 10 9 150 7 E12M-SDUCR/L-07 16 12 11 150 9 DCDDT0702nn E12Q-SDUCR/L-07 16 12 11 180 9 FTKA02565 TW07P E16R-SDUCR/L-07 20 16 15 200 11 E16S-SDUCR/L-07 20 16 15 250 11 2 E16R-SDUCR/L-11 20 16 15 200 11 E16S-SDUCR/L-11 20 16 15 250 11 FTGA03508 TW15P E20R-SDUCR/L-11 25 20 18 200 13 DCDDT11T3nn E20S-SDUCR/L-11 25 20 18 250 13 E25T-SDUCR/L-11 32 25 23 300 17 FTGA03510 TW15P 3 Applicable inserts, see pages B60 B62, B81 Stock item STFCR/L A tcdc R type insert 90° (mm) Stock Screw Wrench Designation 0D 0d H L S Insert Fig. R L C08K-STFCR/L-09 10 8 7 125 5 TCDCT0902Dn FTKA02206 TW06P C10K-STFCR/L-09 12 10 9 125 6 C10K-STFCR/L-11 12 10 9 125 6 C12M-STFCR/L-11 15 12 11 150 8 C16R-STFCR/L-11 20 16 15 200 10 TCDCT1102Dn FTKA02565 TW07P C20R-STFCR/L-11 25 20 18 200 13 2 C20S-STFCR/L-11 25 20 18 250 13 C20R-STFCR/L-16 25 20 18 200 13 TCDCT16T3DD FTGA0351C TW15P C20S-STFCR/L-16 25 20 18 250 13 E08K-STFCR/L-09 10 8 7 125 5 TCDCT0902DD FTKA02206 TW06P E10K-STFCR/L-09 12 10 9 125 6 E10K-STFCR/L-11 12 10 9 125 6 E12M-STFCR/L-11 15 12 11 150 8 E16R-STFCR/L-11 20 16 15 200 11 TOTDT1102DD FTKA02565 TW07P E20R-STFCR/L-11 25 20 18 200 13 2 E20S-STFCR/L-11 25 20 18 250 13 E20R-STFCR/L-16 25 20 18 200 13 TCDCT16T3DD FTGA03510 TW15P E20S-STFCR/L-16 25 20 19 250 13 3 Applicable inserts, see pages B67 B69 Stock item Turning 153
