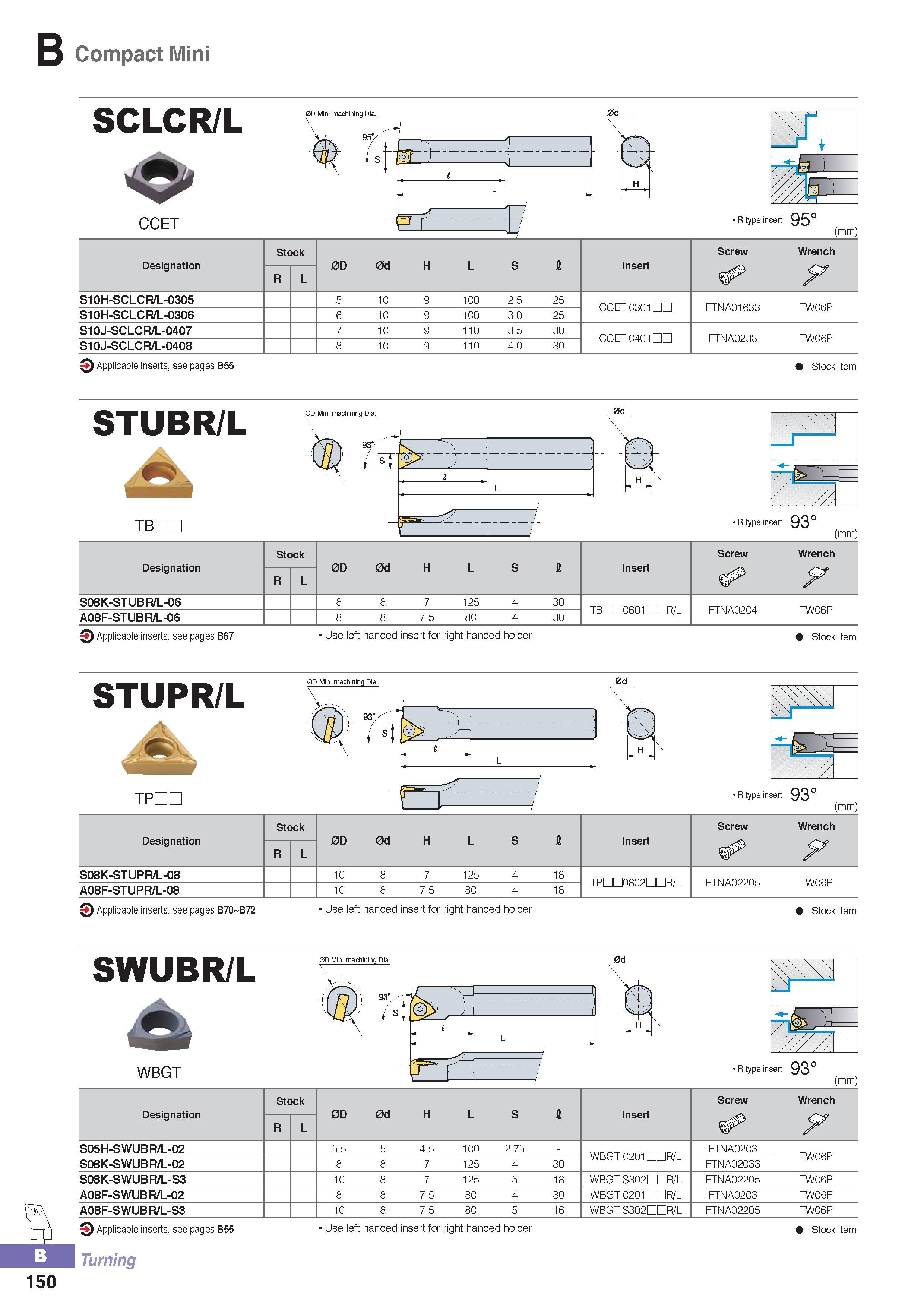

B Compact Mini SCLCR/L 0D Min. machining Dia. CCET /.h I 1 i - l L Ff -i- l r1 H \ tep ) R type insert 95° (mm) Stock Screw Wrench Designation 0D 0d H L S Insert R L X S10H-SCLCR/L-0305 5 10 9 100 2.5 25 GGET 0301 FTNA01633 TW06P S10H-SCLCR/L-0306 6 10 9 100 3.0 25 S10J-SCLCR/L-0407 7 10 9 110 3.5 30 GGET 0401 FTNA0238 TW06P S10J-SCLCR/L-0408 8 10 9 110 4.0 30 3 Applicable inserts, see pages B55 Stock item STUBR/L 0D Min. machining Dia. TBDC R type insert 93° (mm) Stock Screw Wrench Designation 0D 0d H L S S. Insert R L X S08K-STUBR/L-06 8 8 7 125 4 30 TBnn0601 nnR/i FTNA0204 TW06P A08F-STUBR/L-06 8 8 7.5 80 4 30 3 Applicable inserts, see pages B67 Use left handed insert for right handed holder Stock item STUPR/L 0D Min. machining Dia. m TPDC 55F R type insert 93° (mm) Stock Screw Wrench Designation 0D 0d H L S S. Insert R L y S08K-STUPR/L-08 10 8 7 125 4 18 TPnn080 nnR/i FTNA02205 TW06P A08F-STUPR/L-08 10 8 7.5 80 4 18 3 Applicable inserts, see pages B70 B72 Use left handed insert for right handed holder Stock item SWUBR/L 0D Min. machining Dia. WBGT R type insert 93° (mm) Stock Screw Wrench Designation 0D 0d H L S a Insert R L y S05H-SWUBR/L-02 5.5 5 4.5 100 2.75 - WBGT 0201DDR/L FTNA0203 TW06P S08K-SWUBR/L-02 8 8 7 125 4 30 FTNA02033 S08K-SWUBR/L-S3 10 8 7 125 5 18 WBGT S302DDR/L FTNA02205 TW06P A08F-SWUBR/L-02 8 8 7.5 80 4 30 WBGT 0201DDR/L FTNA0203 TW06P A08F-SWUBR/L-S3 10 8 7.5 80 5 16 WBGT S302DDR/L FTNA02205 TW06P 150 3 Applicable inserts, see pages B55 Turning Use left handed insert for right handed holder Stock item
