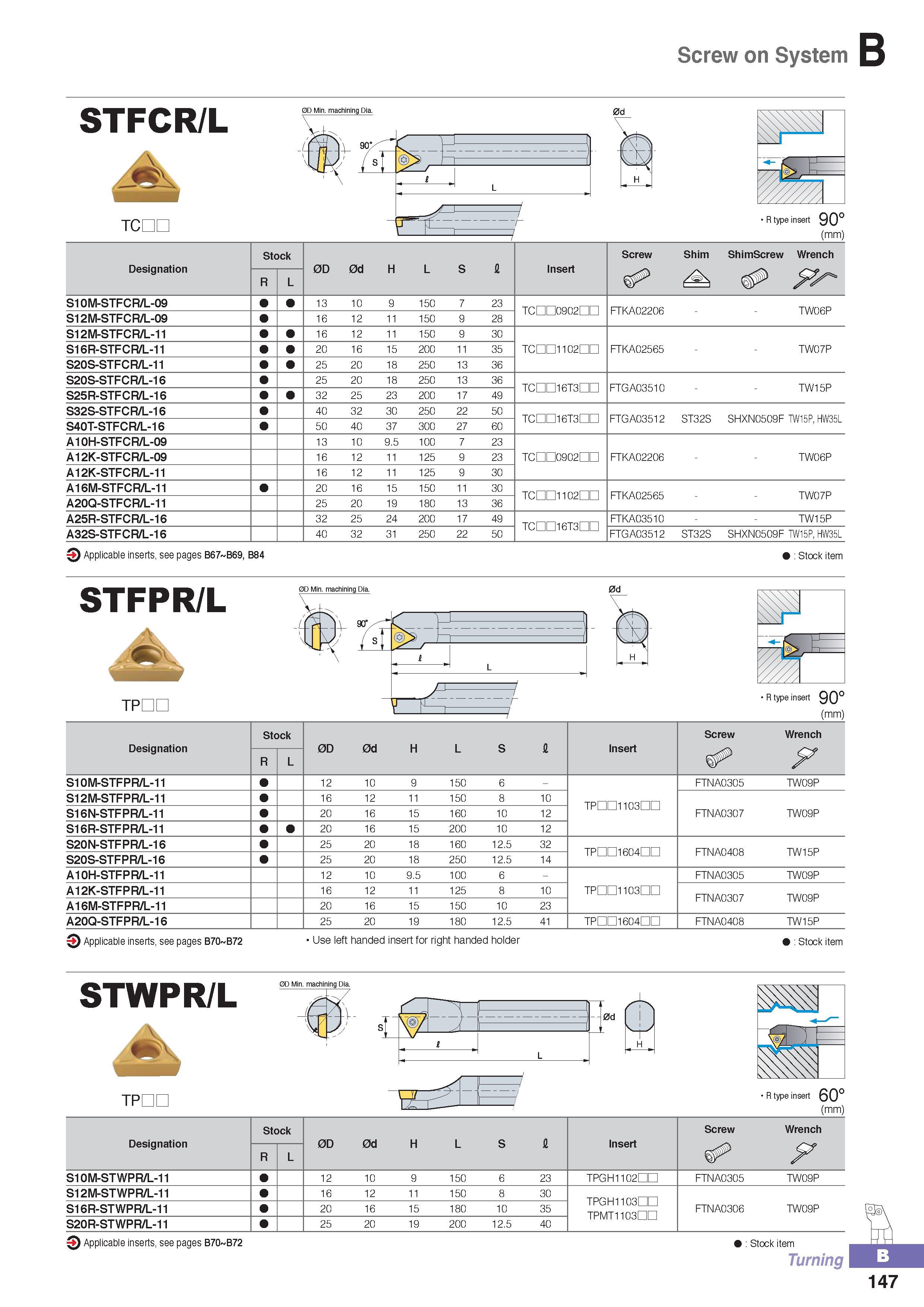

Screw on System STFCR/L 0D Min. machining Dia. Tone R type insert 90° (mm) Stock Screw Shim ShimScrew Wrench Designation 0D 0d H L S fl Insert R L S10M-STFCR/L-09 13 10 9 150 7 23 TCDD0902nn FTKA02206 TW06P S12M-STFCR/L-09 16 12 11 150 9 28 S12M-STFCR/L-11 16 12 11 150 9 30 S16R-STFCR/L-11 20 16 15 200 11 35 TCnn1102nn FTKA02565 TW07P S20S-STFCR/L-11 25 20 18 250 13 36 S20S-STFCR/L-16 25 20 18 250 13 36 TCDD16T3nn FTGA0351C TW15P S25R-STFCR/L-16 32 25 23 200 17 49 S32S-STFCR/L-16 40 32 30 250 22 50 TCDD16T3nn FTGA03512 ST32S SHXN0509F TW15P, HW35L S40T-STFCR/L-16 50 40 37 300 27 60 A10H-STFCR/L-09 13 10 9.5 100 7 23 A12K-STFCR/L-09 16 12 11 125 9 23 TCDD0902nn FTKA02206 TW06P A12K-STFCR/L-11 16 12 11 125 9 30 A16M-STFCR/L-11 20 16 15 150 11 30 TCDD1102nn FTKA02565 TW07P A20Q-STFCR/L-11 25 20 19 180 13 36 A25R-STFCR/L-16 32 25 24 200 17 49 TCDD16T3nn FTKA03510 TW15P A32S-STFCR/L-16 40 32 31 250 22 50 FTGA03512 ST32S SHXN0509F TW15P, HW35L 3 Applicable inserts, see pages B67 B69, B84 Stock item Stock Screw Wrench Designation 0D 0d H L S fl Insert R L y S10M-STFPR/L-11 12 10 9 150 6 - FTNA0305 TW09P S12M-STFPR/L-11 16 12 11 150 8 10 TPnn1103nn S16N-STFPR/L-11 20 16 15 160 10 12 FTNA0307 TW09P S16R-STFPR/L-11 20 16 15 200 10 12 S20N-STFPR/L-16 25 20 18 160 12.5 32 TPnn1604nn FTNA0408 TW15P S20S-STFPR/L-16 25 20 18 250 12.5 14 A10H-STFPR/L-11 12 10 9.5 100 6 - FTNA0305 TW09P A12K-STFPR/L-11 16 12 11 125 8 10 TPDD1103nn FTNA0307 TW09P A16M-STFPR/L-11 20 16 15 150 10 23 A20Q-STFPR/L-16 25 20 19 180 12.5 41 TPnn1604nn FTNA0408 TW15P Applicable inserts, see pages B70 B72 Use left handed insert for right handed holder Stock item STWPR/L 0D Min. machining Dia. TPDC R type insert 60° (mm) Stock Screw Wrench Designation 0D 0d H L S a Insert R L S10M-STWPR/L-11 12 10 9 150 6 23 TPGH110 nn FTNA0305 TW09P S12M-STWPR/L-11 16 12 11 150 8 30 TPGH1103nn TPMT1103DD S16R-STWPR/L-11 20 16 15 180 10 35 FTNA0306 TW09P S20R-STWPR/L-11 25 20 19 200 12.5 40 3 Applicable inserts, see pages B70 B72 Stock item Turning J. 147
