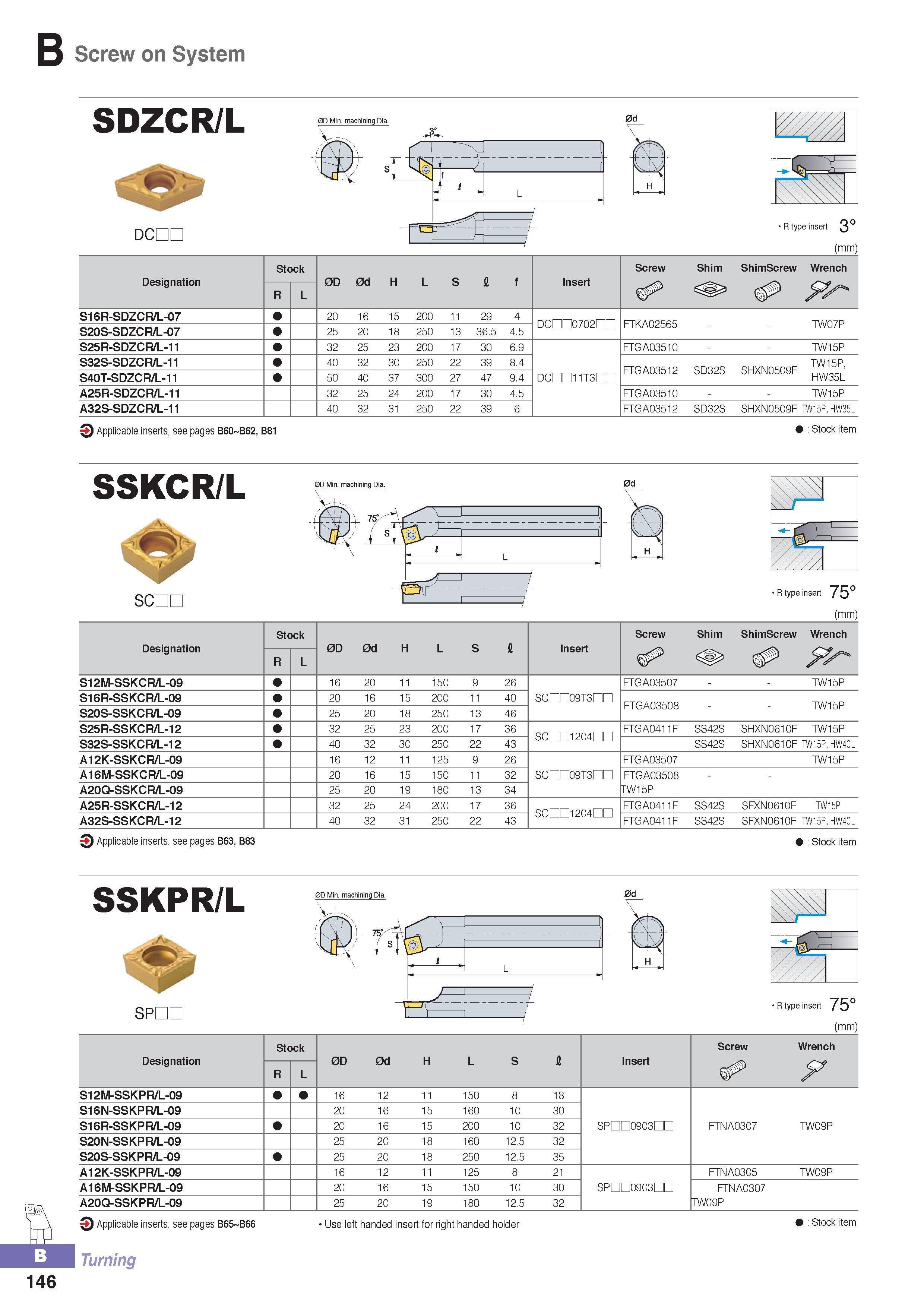

Screw on System SDZCR/L 0D Min. machining Dia. dcdc R type insert 3° (mm) Stock Screw Shim ShimScrew Wrench Designation 0D 0d H L S o Insert R L S16R-SDZCR/L-07 20 16 15 200 11 29 4 DCDD0702nn FTKA02565 TW07P S20S-SDZCR/L-07 25 20 18 250 13 36.5 4.5 S25R-SDZCR/L-11 32 25 23 200 17 30 6.9 FTGA03510 TW15P S32S-SDZCR/L-11 40 32 30 250 22 39 8.4 FTGA03512 SD32S SHXN0509F TW15P, S40T-SDZCR/L-11 50 40 37 300 27 47 9.4 Donovan HW35L A25R-SDZCR/L-11 32 25 24 200 17 30 4.5 FTGA03510 TW15P A32S-SDZCR/L-11 40 32 31 250 22 39 6 FTGA03512 SD32S SHXN0509F TW15P, HW35L O Applicable inserts, see pages B60 B62, B81 Stock item SSKCR/L 0D Min. machining Dia. scdc R type insert 75° (mm) Stock Screw Shim ShimScrew Wrench Designation 0D 0d H L S fi Insert R L py S12M-SSKCR/L-09 16 20 11 150 9 26 FTGA03507 TW15P S16R-SSKCR/L-09 20 16 15 200 11 40 SCnn09T3nn FTGA03508 TW15P S20S-SSKCR/L-09 25 20 18 250 13 46 S25R-SSKCR/L-12 32 25 23 200 17 36 SOTD1204DD FTGA0411F SS42S SHXN0610F TW15P S32S-SSKCR/L-12 40 32 30 250 22 43 SS42S SHXN0610F TW15P, HW40L A12K-SSKCR/L-09 16 12 11 125 9 26 FTGA03507 TW15P A16M-SSKCR/L-09 20 16 15 150 11 32 SCDD09T3nn FTGA03508 A20Q-SSKCR/L-09 25 20 19 180 13 34 TW15P A25R-SSKCR/L-12 32 25 24 200 17 36 SCDD1204nn FTGA0411F SS42S SFXN0610F TW15P A32S-SSKCR/L-12 40 32 31 250 22 43 FTGA0411F SS42S SFXN0610F TW15P, HW40L 3 Applicable inserts, see pages B63, B83 Stock item (mm) Designation Stock 0D 0d H L S ft Insert Screw Wrench y R L S12M-SSKPR/L-09 16 12 11 150 8 18 S16N-SSKPR/L-09 20 16 15 160 10 30 S16R-SSKPR/L-09 20 16 15 200 10 32 SPnn0903nn FTNA0307 TW09P S20N-SSKPR/L-09 25 20 18 160 12.5 32 S20S-SSKPR/L-09 25 20 18 250 12.5 35 A12K-SSKPR/L-09 16 12 11 125 8 21 FTNA0305 TW09P A16M-SSKPR/L-09 20 16 15 150 10 30 SPnn0903nn FTNA0307 A20Q-SSKPR/L-09 25 20 19 180 12.5 32 TW09P Applicable inserts, see pages B65 B66 Use left handedinsert for right handed holder Stock item B Turning 146
