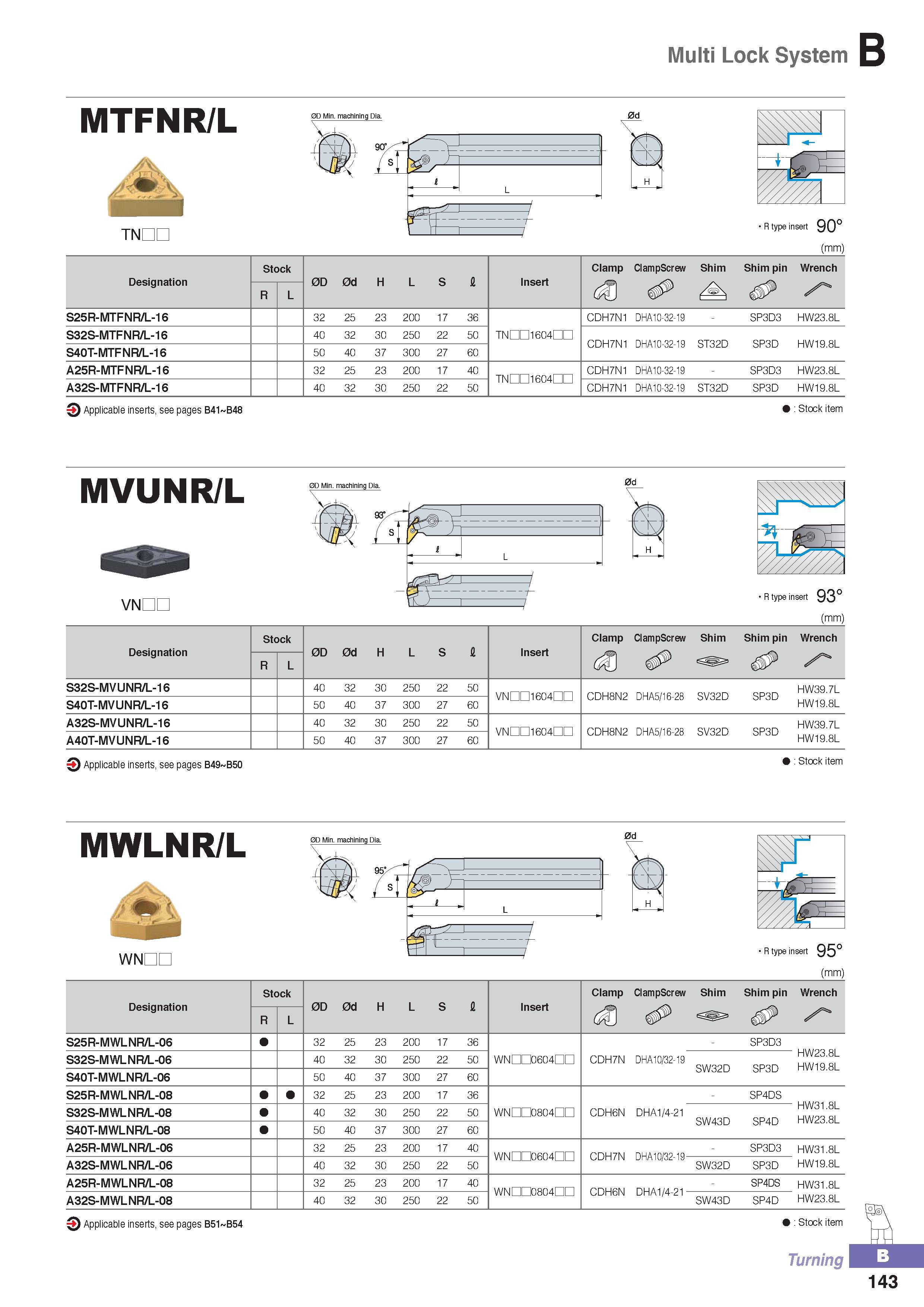

Multi Lock System MTFNR/L 0D Min. machining Dia. 0d TNDC R type insert 90° (mm) Designation Stock 0D 0d H L S a Insert Clamp ClampScrew Shim Shim pin Wrench R L (nD /sK S25R-MTFNR/L-16 32 25 23 200 17 36 CDH7N1 DHA10-32-19 - SP3D3 HW23.8L S32S-MTFNR/L-16 40 32 30 250 22 50 TN 16041m CDH7N1 DHA10-32-19 ST32D SP3D HW19.8L S40T-MTFNR/L-16 50 40 37 300 27 60 A25R-MTFNR/L-16 32 25 23 200 17 40 TN 1604m CDH7N1 DHA10-32-19 - SP3D3 HW23.8L A32S-MTFNR/L-16 40 32 30 250 22 50 CDH7N1 DHA10-32-19 ST32D SP3D HW19.8L O Applicable inserts, see pages B41 B48 Stock item MVUNR/L VNDC R type insert 93° (mm) Designation Stock 0D 0d H L S Insert Clamp ClampScrew Shim Shim pin Wrench R L MU S32S-MVUNR/L-16 40 32 30 250 22 50 VNDD1604nn CDH8N2 DHA5/16-28 SV32D SP3D HW39.7L S40T-MVUNR/L-16 50 40 37 300 27 60 HW19.8L A32S-MVUNR/L-16 40 32 30 250 22 50 VNDD1604nn CDH8N2 DHA5/16-28 SV32D SP3D HW39.7L A40T-MVUNR/L-16 50 40 37 300 27 60 HW19.8L 3 Applicable inserts, see pages B49 B50 Stock item MWLNR/L WNDC R type insert 95° (mm) Designation Stock 0D 0d H L S fi Insert Clamp ClampScrew Shim Shim pin Wrench R L 11 S25R-MWLNR/L-06 32 25 23 200 17 36 - SP3D3 HW23.8L HW19.8L S32S-MWLNR/L-06 40 32 30 250 22 50 WNm0604m CDH7N DHA10/32-19 SW32D SP3D S40T-MWLNR/L-06 50 40 37 300 27 60 S25R-MWLNR/L-08 32 25 23 200 17 36 - SP4DS HW31.8L HW23.8L S32S-MWLNR/L-08 40 32 30 250 22 50 WNm0804m CDH6N DHA1/4-21 SW43D SP4D S40T-MWLNR/L-08 50 40 37 300 27 60 A25R-MWLNR/L-06 32 25 23 200 17 40 WNm0604m CDH7N - SP3D3 HW31.8L A32S-MWLNR/L-06 40 32 30 250 22 50 SW32D SP3D HW19.8L A25R-MWLNR/L-08 32 25 23 200 17 40 WNm0804m CDH6N - SP4DS HW31.8L A32S-MWLNR/L-08 40 32 30 250 22 50 SW43D SP4D HW23.8L O Applicable inserts, see pages B51 B54 Stock item Turning 143
