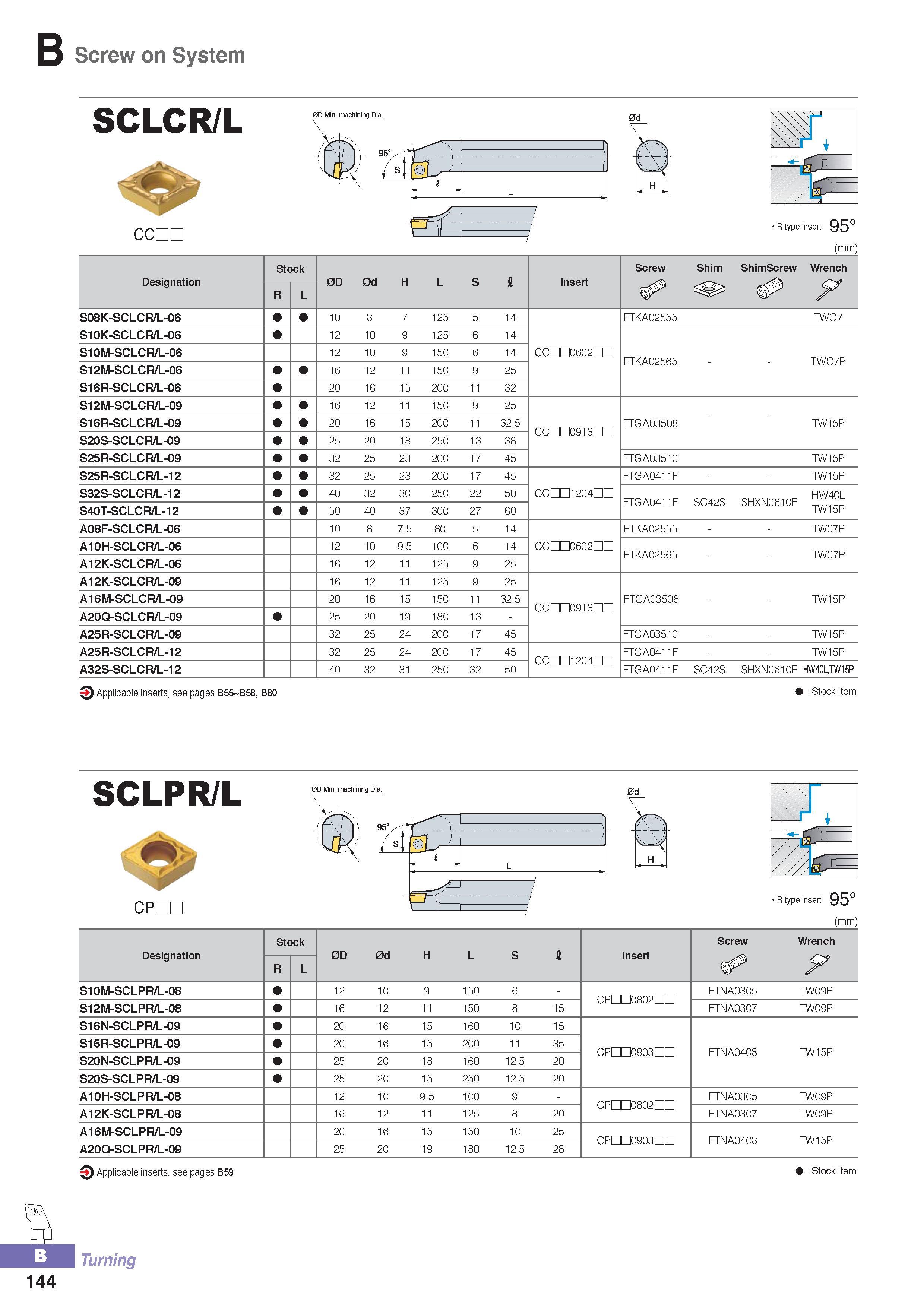

Screw on System SCLCR/L 0D Min. machining Dia. oonc R type insert 95° (mm) Designation Stock 0D 0d H L S fl Insert Screw Shim ShimScrew Wrench R L ( y S08K-SCLCR/L-06 10 8 7 125 5 14 FTKA02555 TWO7 S10K-SCLCR/L-06 12 10 9 125 6 14 S10M-SCLCR/L-06 12 10 9 150 6 14 CCDD0602nn FTKA02565 TWO7P S12M-SCLCR/L-06 16 12 11 150 9 25 S16R-SCLCR/L-06 20 16 15 200 11 32 S12M-SCLCR/L-09 16 12 11 150 9 25 S16R-SCLCR/L-09 20 16 15 200 11 32.5 CCDD09T3nn FTGA03508 TW15P S20S-SCLCR/L-09 25 20 18 250 13 38 S25R-SCLCR/L-09 32 25 23 200 17 45 FTGA03510 TW15P S25R-SCLCR/L-12 32 25 23 200 17 45 FTGA0411F TW15P S32S-SCLCR/L-12 40 32 30 250 22 50 CCDD1204nn FTGA0411F SC42S SHXN0610F HW40L S40T-SCLCR/L-12 50 40 37 300 27 60 TW15P A08F-SCLCR/L-06 10 8 7.5 80 5 14 FTKA02555 TW07P A10H-SCLCR/L-06 12 10 9.5 100 6 14 CCDD0602nn FTKA02565 TW07P A12K-SCLCR/L-06 16 12 11 125 9 25 A12K-SCLCR/L-09 16 12 11 125 9 25 A16M-SCLCR/L-09 20 16 15 150 11 32.5 CCnn09T3nn FTGA03508 TW15P A20Q-SCLCR/L-09 25 20 19 180 13 - A25R-SCLCR/L-09 32 25 24 200 17 45 FTGA03510 TW15P A25R-SCLCR/L-12 32 25 24 200 17 45 CCDD1204nn FTGA0411F TW15P A32S-SCLCR/L-12 40 32 31 250 32 50 FTGA0411F SC42S SHXN0610F HW40L,TW15P 3 Applicable inserts, see pages B55 B58, B80 Stock item SCLPR/L 0D Min. machining Dia. OPDC R type insert 95° (mm) Designation Stock 0D 0d H L S a Insert Screw Wrench R L y S10M-SCLPR/L-08 12 10 9 150 6 - CPDD0802nn FTNA0305 TW09P S12M-SCLPR/L-08 16 12 11 150 8 15 FTNA0307 TW09P S16N-SCLPR/L-09 20 16 15 160 10 15 S16R-SCLPR/L-09 20 16 15 200 11 35 CPDD0903nn FTNA0408 TW15P S20N-SCLPR/L-09 25 20 18 160 12.5 20 S20S-SCLPR/L-09 25 20 15 250 12.5 20 A10H-SCLPR/L-08 12 10 9.5 100 9 - CPDD0802nn FTNA0305 TW09P A12K-SCLPR/L-08 16 12 11 125 8 20 FTNA0307 TW09P A16M-SCLPR/L-09 20 16 15 150 10 25 CPDD0903nn FTNA0408 TW15P A20Q-SCLPR/L-09 25 20 19 180 12.5 28 3 Applicable inserts, see pages B59 Stock item 144 Turning
